8000 Reserve 3-Person Full Spectrum Infrared Sauna
Estimated Delivery: 8 - 15 Business Days (In-Stock Freight Shipping)
Orders placed after 2:00 PM Central Time (CT), or on weekends or holidays, generally begin processing on the next business day.
Choose options
Golden Designs • GDI-8230-01
8000 Reserve 3-Person Extended-Depth Full Spectrum Infrared Sauna with Himalayan Salt Bar
The GDI-8230-01 is the larger of two 3-person cabins in the Golden Designs 8000 Reserve range, and it is a materially different sauna from the 61-inch-wide GDI-8030-03 rather than a variant of it. It uses a deeper 50-inch cabin, a different 3 + 6 heater configuration totalling nine elements, draws 2,700 watts, ships in five cartons, and requires two separate dedicated 120V / 15A non-GFCI circuits — not the single 20-amp circuit the smaller 3-person model uses.
Wellari Expert Take
Why Consider the Reserve GDI-8230-01?
Golden Designs lists two 3-person Reserve cabins, and buyers routinely assume the more expensive one is simply the same sauna with a markup. It is not. The GDI-8230-01 has a 50″ deep cabin against 41″, nine heaters against eight in a different configuration, and 2,700 watts against 2,200. The depth is the point — it is the Reserve cabin that gives three people room to sit without shoulders touching, and the only 3-person model in the range with enough bench depth to lie down along one wall.
Best For
- Three adults who want to sit comfortably rather than fit at capacity.
- Buyers who want a reclining or lie-down option in a 3-person cabin — the 50″ depth allows it, the 41″ GDI-8030-03 does not.
- Installations where two separate 15-amp circuits can be dedicated to the sauna.
- Rooms with depth to spare but limited width — at 58″ wide it is narrower than the 4-person GDI-8040-03.
- Buyers who want the heaviest full spectrum heater count available below the 6-person cabin.
Reserve GDI-8230-01 Features & Buying Details

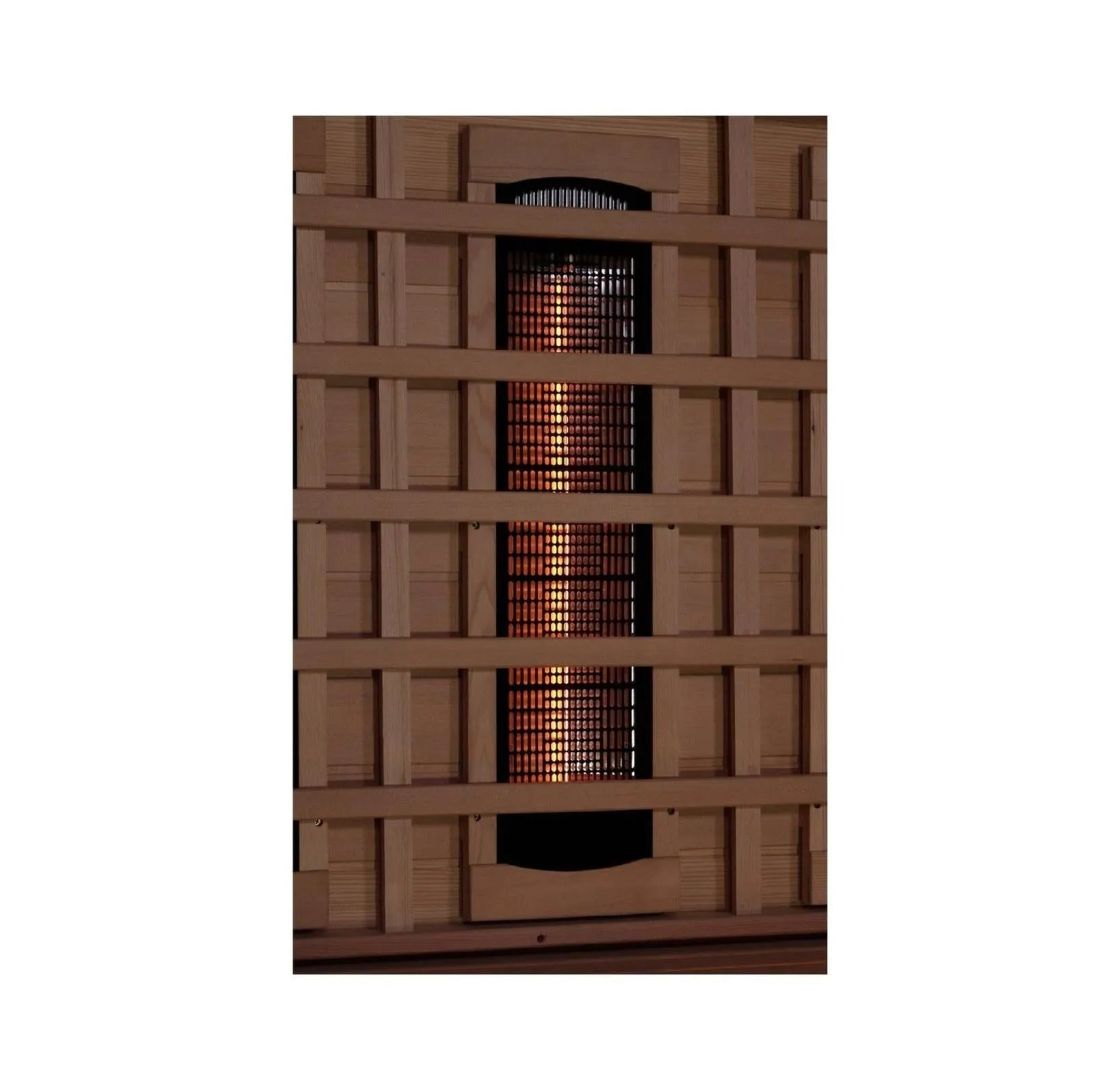

PureTech™ Full Spectrum Heating
- Heater configuration: Documented by Golden Designs as 3 + 6 — 9 heating elements in total
- Heating technology: PureTech™ full spectrum
- Wavelengths: Golden Designs states the panels use near, mid and far infrared wavelengths to deliver full spectrum heat while maintaining a near zero EMF standard
- Floor heater: Included
- Rated power: 2,700 watts
- Capacity: 3 person
A different array from the other 3-person cabin. The GDI-8030-03 is documented as 5 + 3; this model is 3 + 6. The totals differ (8 against 9) and so does the balance between the two element groups. Combined with the deeper cabin, that is why the two 3-person Reserve saunas are priced differently and why they are not interchangeable.
Golden Designs publishes the 3 + 6 configuration but does not publish which count corresponds to which infrared band, so Wellari does not state a near/far split for this model.
Near Zero EMF — What Golden Designs Documents
Golden Designs classifies the 8000 Reserve full spectrum range as Near Zero EMF.
Why we do not publish a number. Golden Designs' current V26.0 documentation, all issued on the same date, states different Near Zero EMF measurement figures for its full spectrum range in different documents — the model-family sheet, the full spectrum sheet and the dealer workbook do not agree with one another. Because those figures conflict, Wellari publishes the manufacturer's classification and does not quote a milligauss value for this model until Golden Designs reconciles them.
If a specific measured EMF figure is a decision criterion for you, contact us and we will request it from Golden Designs in writing.
When comparing sauna models generally, always compare the stated figure together with the distance at which it was measured. A lower number taken further from the panel is not necessarily a lower-emission cabin.
Electrical & Installation Planning — Two Circuits Required
- Rated power: 2,700 watts
- Electrical service: Two separate 120V / 15A non-GFCI outlets
- Configuration: Two dedicated circuits — a single 20-amp circuit is not sufficient for this model
- Installation environment: Indoor use only
- Designated use: Residential
This is the most commonly misplanned specification on this sauna. At 2,700 watts the cabin exceeds what a single 15-amp or 20-amp household circuit can carry, so Golden Designs specifies two separate 15-amp circuits, each with its own breaker and outlet, and specifies non-GFCI outlets. Two outlets on the same circuit will not work — they must be independently fed from the panel.
Have a qualified electrician confirm that two separate dedicated circuits can be run to the installation point before you order. This is the single item most likely to delay commissioning after delivery, and retrofitting a second circuit to a finished basement or garage wall is considerably more disruptive once the cabin is assembled in front of it.

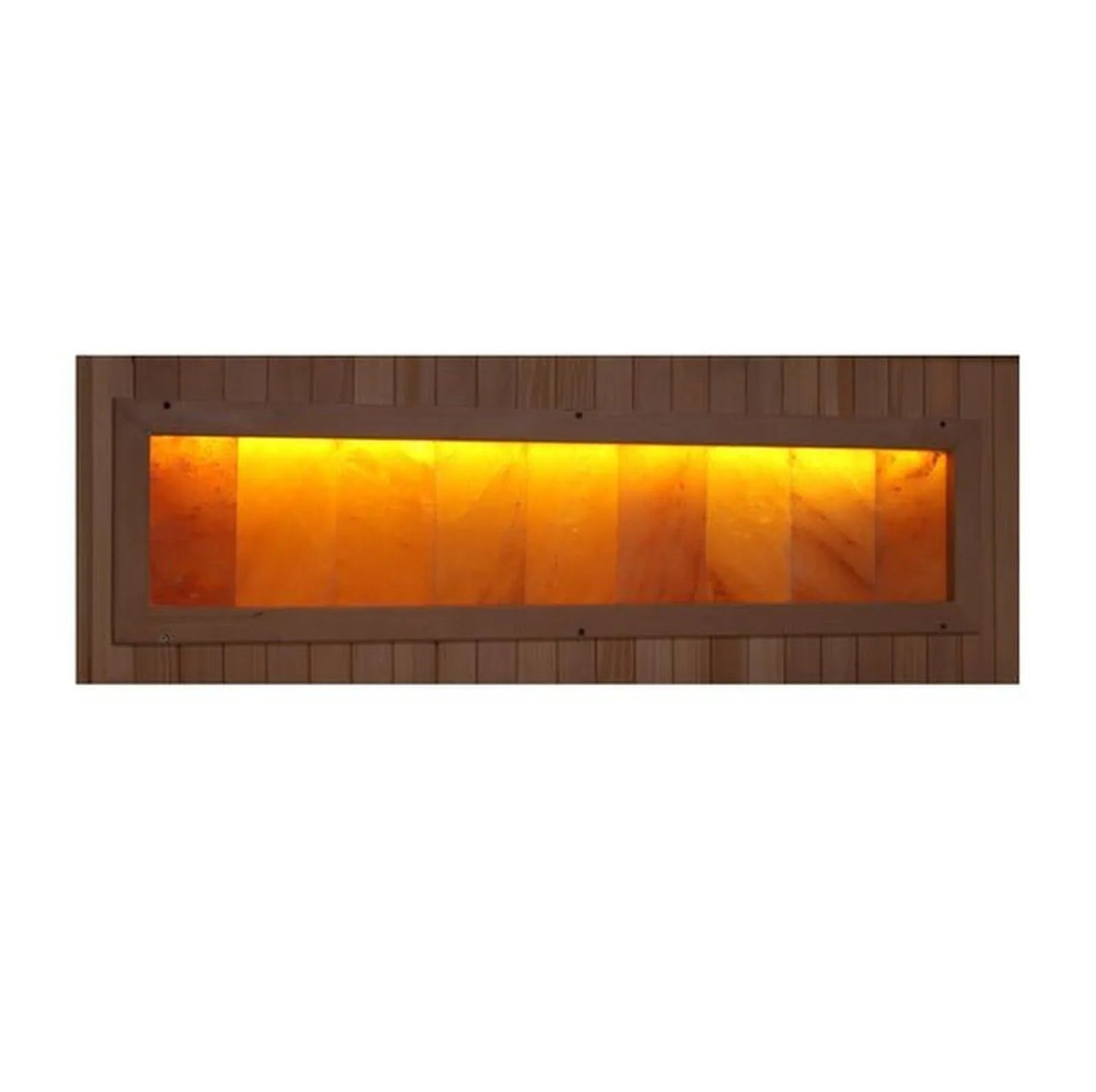

Himalayan Salt Bar & Cabin Materials
- Himalayan salt: Integrated Himalayan salt bar
- Wood: 100% reforested Canadian Hemlock Fir
- Colour: Natural
- Glass: Bronze-tinted tempered glass door
- Assembly: Clasp-together panel construction; Golden Designs states the cabin is assembled by two adults
- Country of manufacture: China
The salt bar is a Reserve-series feature fitted across the range. Capacity, cabin depth, heater count and electrical service are what actually differ between Reserve models.
Lighting, Audio & Controls
- Control panel: Touch-screen control panel
- Radio: FM station, integrated into the touch-screen panel
- Audio: Bluetooth connectivity
- Auxiliary audio: MP3 auxiliary connection
- Chromotherapy: Oversize colour therapy lighting with red light
- Exterior lighting: Exterior accent lighting
The oversize colour therapy system is fitted to the larger Reserve cabins — GDI-8030-03 and above. The two smallest models use the standard-size system.
Size & Space Planning
- Exterior dimensions: 58″ W × 50″ D × 74″ H
- Roof overhang: Adds approximately 4.5″ to the depth
- Capacity: 3 person
- Assembled weight: Approximately 550 lb
Check depth, not just width. At 50″ deep — nearly 55″ including the roof overhang — this cabin projects considerably further into a room than the other 3-person Reserve model, which is 41″ deep. It is the trade the design makes: narrower than a 4-person cabin, but much deeper.
Measure the full delivery path as well as the installation area: doorways, hallways, stair turns and tight corners. At approximately 550 lb assembled, the cabin is not practical to reposition once built, so decide the final location before assembly begins.
Shipping, Freight & Assembly
- Freight method: LTL freight
- Delivery: Curbside only, on a pallet, by a freight carrier
- Cartons: 5 cartons on 1 pallet
- Shipping weight: Approximately 645 lb
- Assembly: Clasp-together panel construction, assembled by two adults
Five cartons, approximately 645 lb on one pallet. The carrier brings the pallet to the curb and does not move it into the home. This is one of the heavier Reserve shipments — arrange at least two people, and ideally an appliance dolly, to move the cartons from the curb. Confirm a freight vehicle can reach your address before ordering.
Warranty & Manufacturer Information
- Manufacturer warranty: 5 years
- Brand: Golden Designs
- Series: 8000 Reserve, Full Spectrum with Himalayan Salt Bar
- Country of manufacture: China
- Designated use: Residential
Warranty terms, coverage and claim procedures are set by the manufacturer and may vary by component. Review the manufacturer's current warranty documentation for the terms that apply to your unit, and keep your purchase documentation for future support reference.
Natural Wood, Safety & Usage
Natural wood notice: Grain, tone, knots and other natural characteristics vary between individual cabins and may differ slightly from product photography. This is normal for solid Hemlock Fir and is not a defect.
Usage: This sauna is intended for indoor residential use. Place it on a level, solid floor and operate it according to the manufacturer's instructions and electrical requirements.
Hydration and comfort: Stay appropriately hydrated, and leave the sauna immediately if you feel dizzy, lightheaded, uncomfortable or otherwise unwell.
Medical disclaimer: This product is not a medical device and is not intended to diagnose, treat, cure or prevent any disease. Consult a qualified healthcare professional if you have a medical condition, are pregnant, use an implanted medical device, or have questions about whether sauna use is appropriate for you.
Verified Specifications
| Brand | Golden Designs |
|---|---|
| Series | 8000 Reserve — Full Spectrum with Himalayan Salt Bar |
| Model / SKU | GDI-8230-01 |
| UPC | 850061851062 |
| Sauna Type | Full Spectrum Infrared |
| Capacity | 3 Person |
| Heater Configuration | 3 + 6 (9 heating elements total) |
| Heating Technology | PureTech™ full spectrum — near, mid and far infrared |
| EMF Classification | Near Zero EMF |
| Floor Heater | Included |
| Himalayan Salt | Integrated Himalayan salt bar |
| Wood | 100% reforested Canadian Hemlock Fir |
| Colour | Natural |
| Door | Bronze-tinted tempered glass |
| Exterior Dimensions | 58″ W × 50″ D × 74″ H (roof overhang adds approx. 4.5″ to depth) |
| Rated Power | 2,700 W |
| Electrical | Two separate 120V / 15A non-GFCI outlets and breakers |
| Controls | Touch-screen control panel with FM station |
| Audio | Bluetooth, MP3 auxiliary connection |
| Lighting | Oversize colour therapy lighting with red light; exterior accent lighting |
| Assembly | Clasp-together panel construction, assembled by two adults |
| Assembled Weight | Approximately 550 lb |
| Shipping Weight | Approximately 645 lb |
| Shipping Configuration | 5 cartons on 1 pallet, LTL freight, curbside delivery |
| Warranty | 5 years (manufacturer) |
| Country of Manufacture | China |
| Designated Use | Residential, indoor |
Compare the 8000 Reserve Range
All seven Reserve cabins share the same PureTech™ full spectrum heating, Himalayan salt bar, floor heater, touch-screen controls and 5-year warranty. They differ in capacity, footprint, heater count and — most importantly for installation — electrical service.
- 1–2 person — GDI-8010-03. 41″ wide, 5 heaters, one dedicated 15A circuit.
- 2 person — GDI-8020-03. 47″ wide, 6 heaters, one dedicated 15A circuit.
- 3 person — GDI-8030-03. 61″ wide but only 41″ deep, 8 heaters, one dedicated 20A circuit.
- 3 person corner — GDI-8035-03. Corner footprint, 8 heaters, one dedicated 20A circuit.
- 3 person extended — GDI-8230-01 — this page. 58″ wide and 50″ deep, 9 heaters, two dedicated 15A circuits.
- 4 person — GDI-8040-03. 70″ wide, 9 heaters, two dedicated 15A circuits.
- 6 person — GDI-8260-01. 73″ wide and 55″ deep, 9 heaters, two dedicated 15A circuits.
For help choosing between far infrared and full spectrum heating, see the Infrared & Full-Spectrum Sauna Buyer's Guide, or browse the full Low, Ultra-Low & Near Zero EMF sauna collection.
Common Questions
Can I run the GDI-8230-01 on a single 20-amp circuit?
No. Golden Designs specifies two separate 120V / 15A non-GFCI outlets for this 2,700-watt model, each fed independently from the panel. Two outlets on one shared circuit will not meet the requirement. Confirm with a qualified electrician before ordering.
What is the difference between this and the other 3-person Reserve sauna?
They are genuinely different models, not two prices for the same cabin. The GDI-8030-03 is 61″ wide and 41″ deep with 8 heaters (5 + 3) on a single 20-amp circuit. This GDI-8230-01 is 58″ wide and 50″ deep with 9 heaters (3 + 6) on two 15-amp circuits, and ships in 5 cartons rather than 3. Choose this one for cabin depth and heater count; choose the 8030-03 for a wider, shallower footprint and simpler wiring.
Why doesn't this page state an EMF number in milligauss?
Because Golden Designs' own current documents disagree. Three V26.0 documents issued on the same date give three different measurement figures for the full spectrum range. We publish the manufacturer's Near Zero EMF classification and are seeking a reconciled figure. Ask us if you need it in writing before ordering.
Is there enough depth to lie down?
The cabin is 50″ deep externally, which is the greatest depth of any 3-person model in the Reserve range and allows a reclined position along the bench that the 41″ deep GDI-8030-03 does not. Whether you can lie fully flat depends on your height — measure against the interior bench before assuming it.
How is it delivered, and what do I need to arrange?
By LTL freight, curbside only, on a pallet, in 5 cartons with a shipping weight of approximately 645 lb. The carrier will not bring it inside. Arrange at least two people and ideally an appliance dolly, and confirm a freight vehicle can access your address.
What warranty applies?
Golden Designs provides a 5-year manufacturer warranty on this model. Coverage and claim procedures are set by the manufacturer and may vary by component.
