RDPro6000-FS7 Full-Body Red Light Therapy Panel
Estimated Delivery: 12–17 Business Days (Made-to-Order)
Orders placed after 2:00 PM Central Time (CT) begin processing the next business day.
To ensure a successful White Glove installation, the customer is responsible for the following:
- Site Dimensions: Ensure doorways, hallways, and the final installation room can accommodate the dimensions of the equipment.
- Electrical Requirements: Ensure the installation site meets the specific voltage and outlet requirements (e.g., dedicated 20-amp circuits) provided in your product specifications.
- Floor Load: Confirm the flooring can support the weight of the unit (especially for Hardside Hyperbaric units).
- Clear Path: Ensure a clear, unobstructed path from the delivery truck to the final installation room.
- White-Glove Installation, When Available: Available services, provider qualifications, geographic coverage, pricing, and scope vary by product and delivery location. Any product-specific installation or warranty requirements will be confirmed before purchase or scheduling.
- Standard Freight (Self-Installation):
Improper movement, assembly, electrical work, plumbing, configuration, or installation may damage the product, create safety risks, and affect warranty coverage. Review the manufacturer’s instructions and applicable warranty terms before selecting self-installation.
⚠️ Self-Installation Notice: Improper movement, assembly, electrical work, configuration, calibration, or installation may create safety risks, damage the product or property, and affect applicable warranty coverage. Follow the manufacturer’s current instructions and use qualified professionals where required
Note on Warranty: Please be aware that some manufacturers may void the labor or parts warranty if the equipment is not installed by a certified technician. We strongly recommend reviewing your specific product’s warranty terms prior to opting out of White Glove service.
Choose options
REDDOT LED • RDPRO6000-FS7

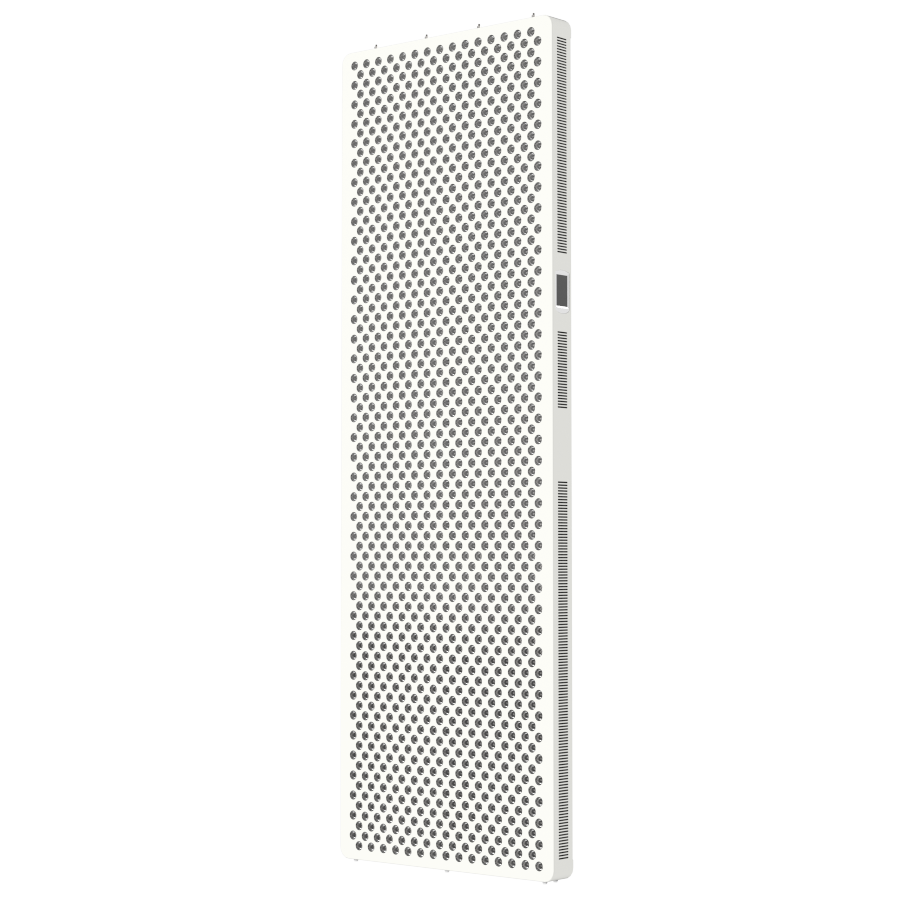

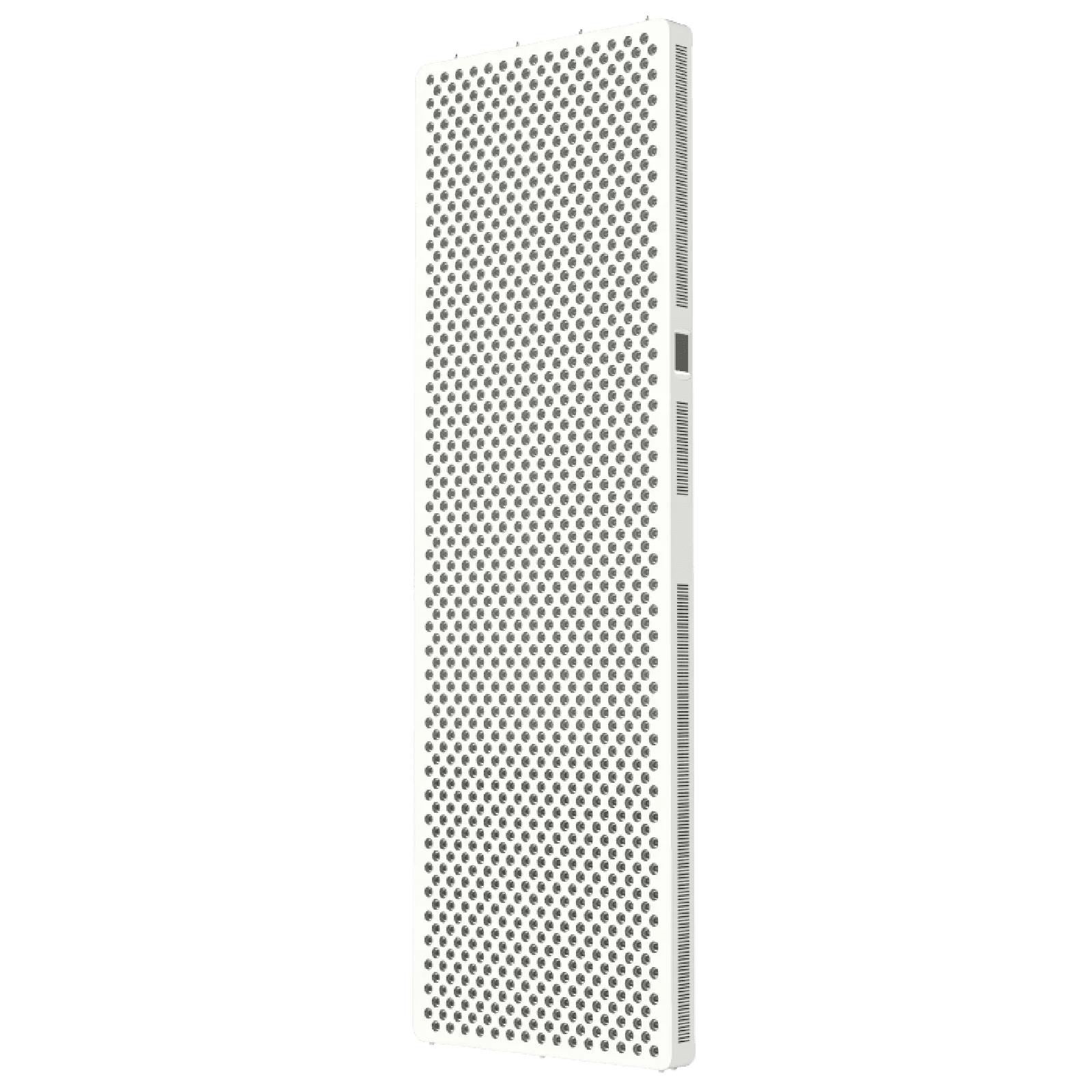

REDDOT RDPRO6000-FS7 7-Wavelength LED Light Therapy Panel

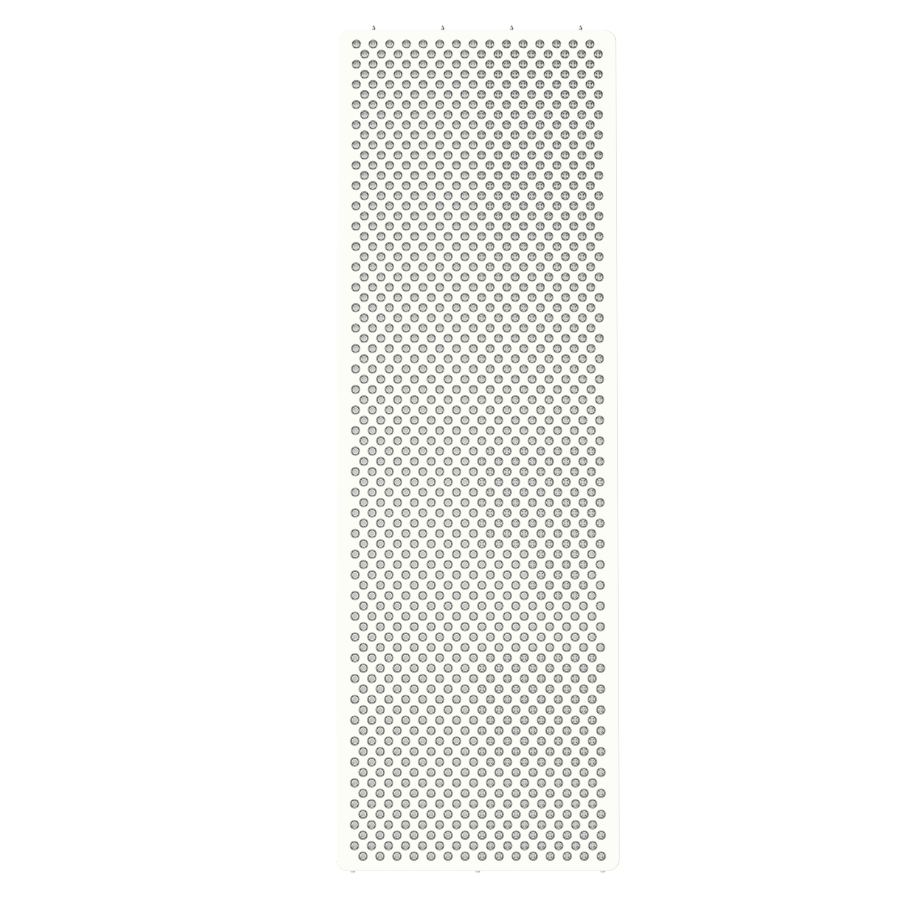

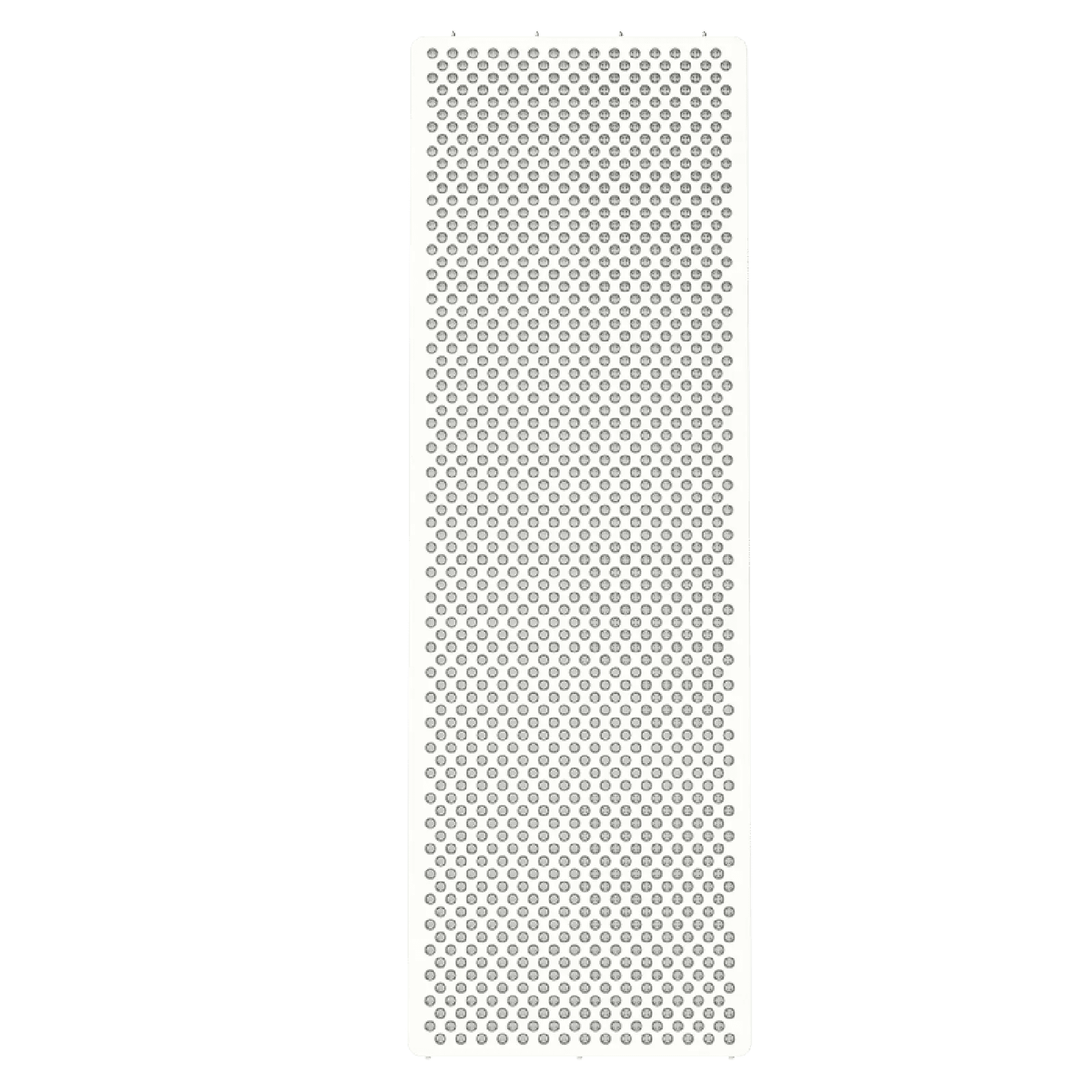

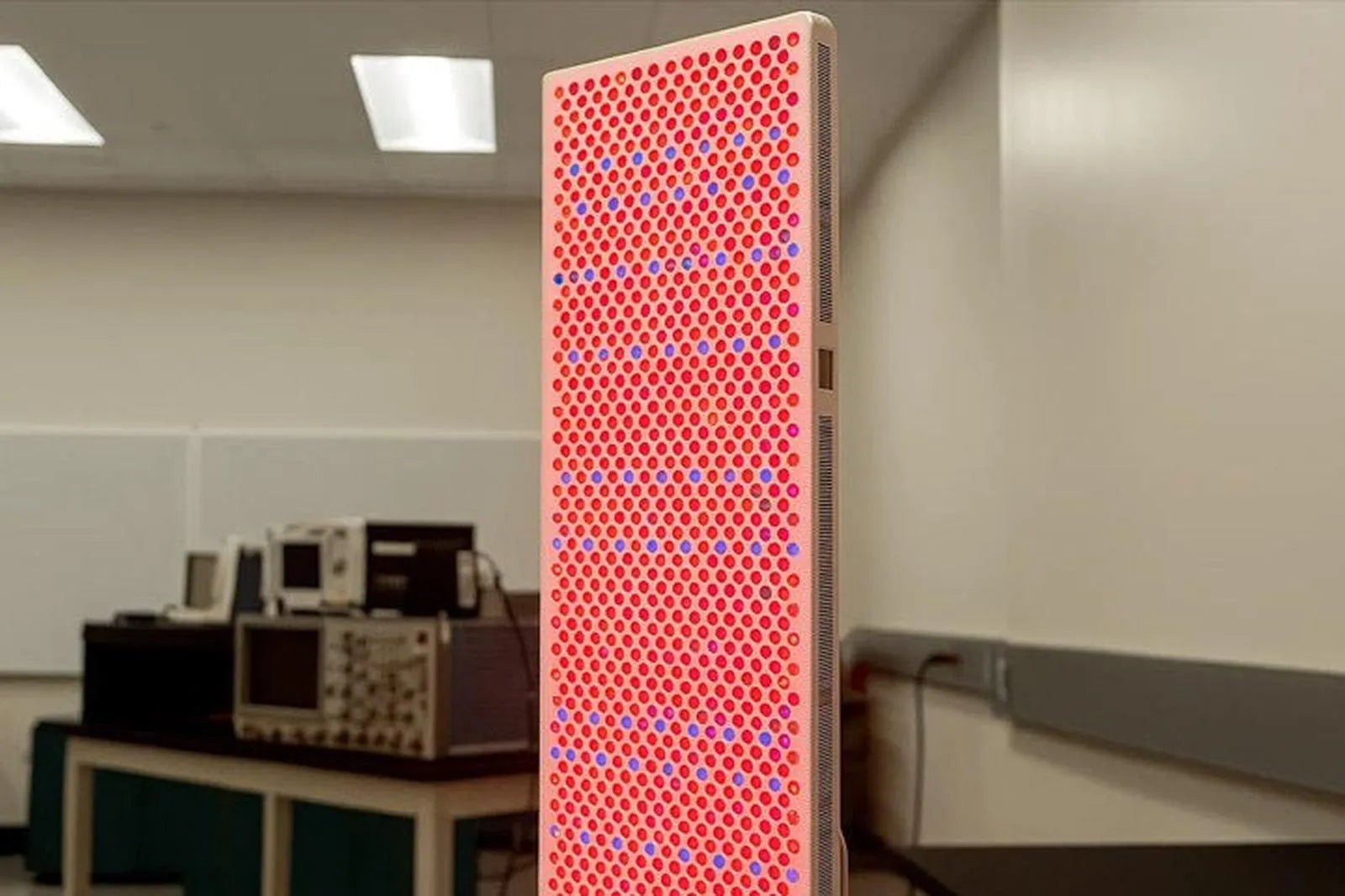

The RDPRO6000-FS7 is the largest panel in REDDOT’s RDPRO FS7 range — 1200 dual-chip LEDs in a 180 × 60 × 6.6 cm body weighing 40.6 kg, cooled by fourteen fans. It emits seven wavelengths (480, 630, 660, 810, 830, 850 and 1060 nm), each dimmable independently from 0–100%, draws 1880 W, and ships with a wall stand. REDDOT measures its irradiance at 124 mW/cm² at 15 cm with all seven channels at 100% and classifies its coverage as full body.
Wellari Expert Take
Why Consider the RDPRO6000-FS7?
The specification that actually distinguishes this panel is not its 15 cm figure — it is how little its output falls away with distance. REDDOT’s own curve runs 124 mW/cm² at 15 cm to 80 mW/cm² at 90 cm — about 65% retained. The compact RDPRO300-FS7 retains about 19% over the same distance. A 1200-LED array behaves very differently from a 60-LED one once you step back.
That matters because full-body use is use at distance. At 90 cm this panel illuminates 221 × 119 cm — the widest field in the range by a considerable margin, and wide enough to cover a standing adult with lateral room rather than a narrow vertical strip. If you are running sessions where the person is not pressed against the panel, this is the model whose published numbers hold up.
It is also the installation that needs the most planning. At 40.6 kg against a supplied bracket rated to 43 kg, the panel is inside the rating but the margin is not generous, and the fixing is into your wall rather than REDDOT’s bracket. REDDOT states a draw of 1880 W, 15.67 A at 120 V or 8.5 A at 220 V — a substantially higher current than any other panel in the range. Have a qualified electrician confirm your intended supply and a competent installer handle the mount.
Best For
- Full-body sessions at genuine working distance, where output retention matters most
- Commercial and institutional settings running back-to-back sessions
- Rooms with a structurally suitable wall and a professional installer available
- Buyers who need the widest published field in the range — 221 × 119 cm
- Sites where the electrical supply has already been assessed for a 1880 W fixed appliance
RDPRO6000-FS7 Features & Buying Details
The Seven-Wavelength Spectrum
- Blue: 480 nm
- Red: 630 nm and 660 nm
- Near-infrared: 810 nm, 830 nm, 850 nm and 1060 nm
- Channel control: each of the seven wavelengths is dimmable independently from 0–100%
- Group control: the touchscreen also sets the blue, red and near-infrared groups together
All five FS7 panels emit the same seven wavelengths. What differs between models is array size, coverage and power — not the spectrum. Every channel can be set to zero, so the panel can be run as red-only, near-infrared-only, or any combination.
What we do not claim. Wellari publishes the wavelengths this device emits and the output REDDOT measures. We do not attach health, therapeutic or performance outcomes to any wavelength, and we do not reproduce the outcome claims that appear in the manufacturer’s manual. If you are considering light therapy for a specific concern, that is a conversation for a qualified healthcare professional who knows your history.
Irradiance & Operating Distance
REDDOT measures 124 mW/cm² at 15 cm, with all seven channels running at 100%. Both halves of that sentence matter. A figure quoted at a different distance, or with only the red and near-infrared channels active, is not comparable to this one.
| Distance | Irradiance | Illuminated field |
|---|---|---|
| 15 cm | 124 mW/cm² | 180 × 56 cm |
| 30 cm | 98 mW/cm² | 185 × 61 cm |
| 45 cm | 90 mW/cm² | 190 × 71 cm |
| 60 cm | 85 mW/cm² | 200 × 78 cm |
| 90 cm | 80 mW/cm² | 221 × 119 cm |
The table above is REDDOT’s published curve for this model — irradiance and the size of the illuminated field at each distance. Output falls as distance rises and the field widens; this panel retains about 65% of its 15 cm figure at 90 cm.
REDDOT’s manual specifies an operating distance of 6–12 inches (roughly 15–30 cm) and sessions of 2–15 minutes depending on distance. Follow the manufacturer’s current instructions rather than anything you read on a retail page, including this one.
We do not compare these figures to other brands. Manufacturers measure irradiance at different distances, with different channels active, using different instruments. Unless the method matches, the comparison is not meaningful.

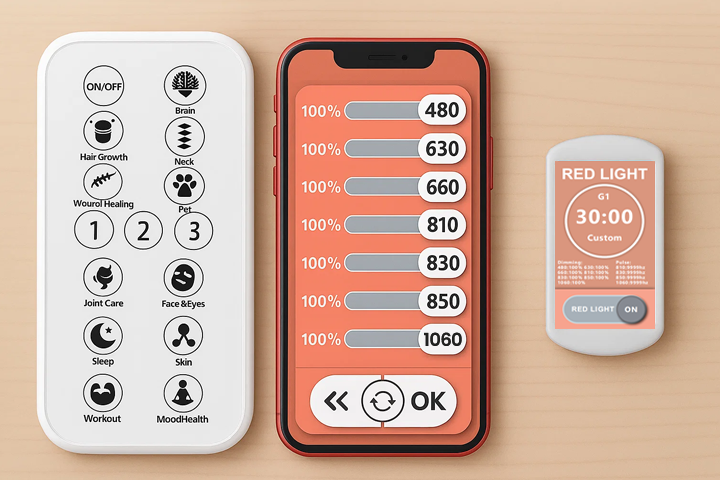

Controls, Presets & App
- On-board touchscreen: brightness, timer and pulse, set per channel or by group
- Wireless remote: pressing on/off once runs the red and near-infrared channels at 100% for 20 minutes; a smart-mode button cycles the preset programs
- App: RLT System, available on the App Store and Google Play
- Preset programs: eleven built-in programs, each carrying its own default brightness, time and pulse settings
- Saved settings: three user presets stored in device memory
- Groups: three remote groups, so multiple panels in one room can be controlled separately
- Timer: 1–30 minutes, with an audible alert at the halfway point and automatic screen-off
- Pulsing: 0–9999 Hz, near-infrared channels only, adjustable per channel
Pulsing applies to the near-infrared channels only — 810, 830, 850 and 1060 nm. The blue and red channels (480, 630 and 660 nm) are dimmable but are not pulsed. This is a point where product listings in this category are frequently loose, so we state it precisely: a “0–9999 Hz” figure on an FS7 panel describes the four near-infrared channels, not all seven.
App support is confirmed for all five FS7 panels. REDDOT has confirmed this directly in writing. Older dealer documentation listed app control for the RDPRO750-FS7 only; that information is superseded.
We do not publish the manufacturer’s names for the eleven preset programs. Several of them are named after health conditions and outcomes, and reproducing those names on a retail page would imply claims we are not in a position to support. The programs are simply combinations of brightness, time and pulse settings, and every one of those settings can be adjusted manually.
Power, Cooling & Electrical
- Power consumption: 1880 W (manufacturer-stated)
- Current at 120 V: 15.67 A
- Current at 220 V: 8.5 A

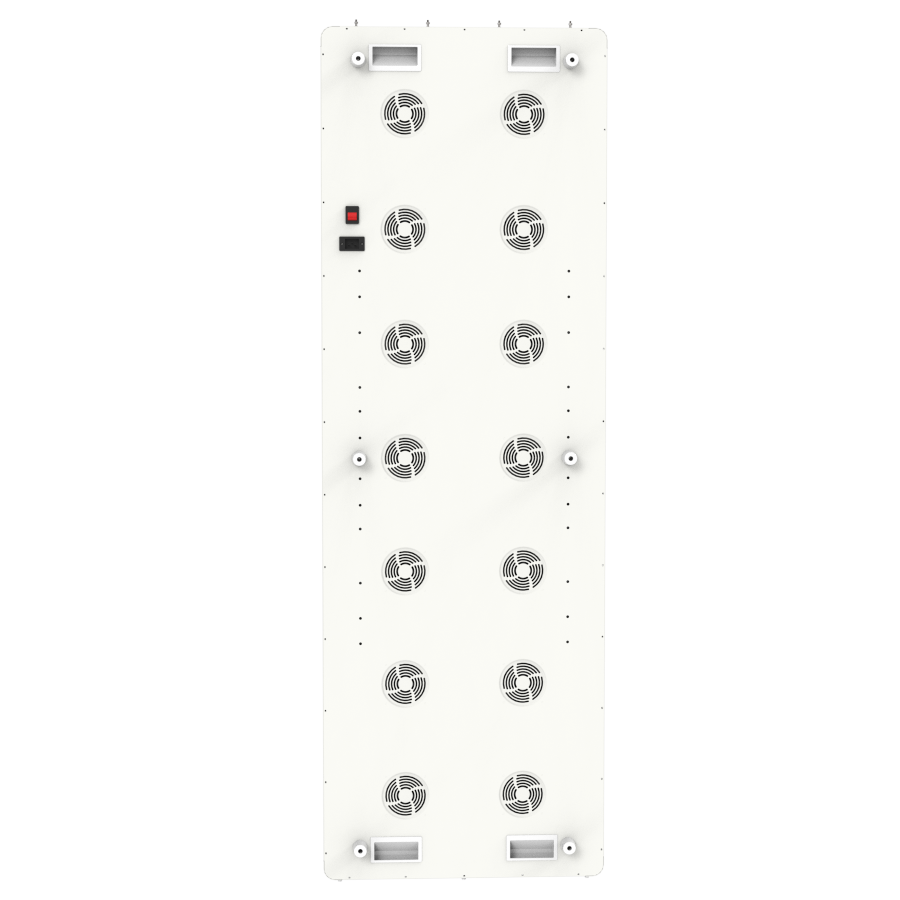

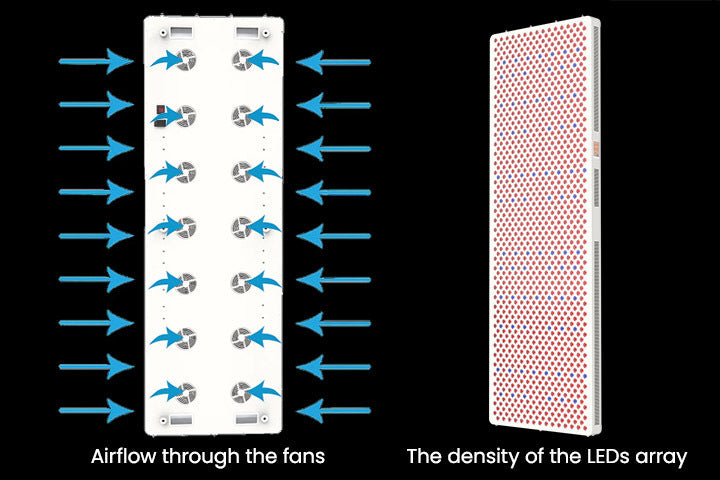

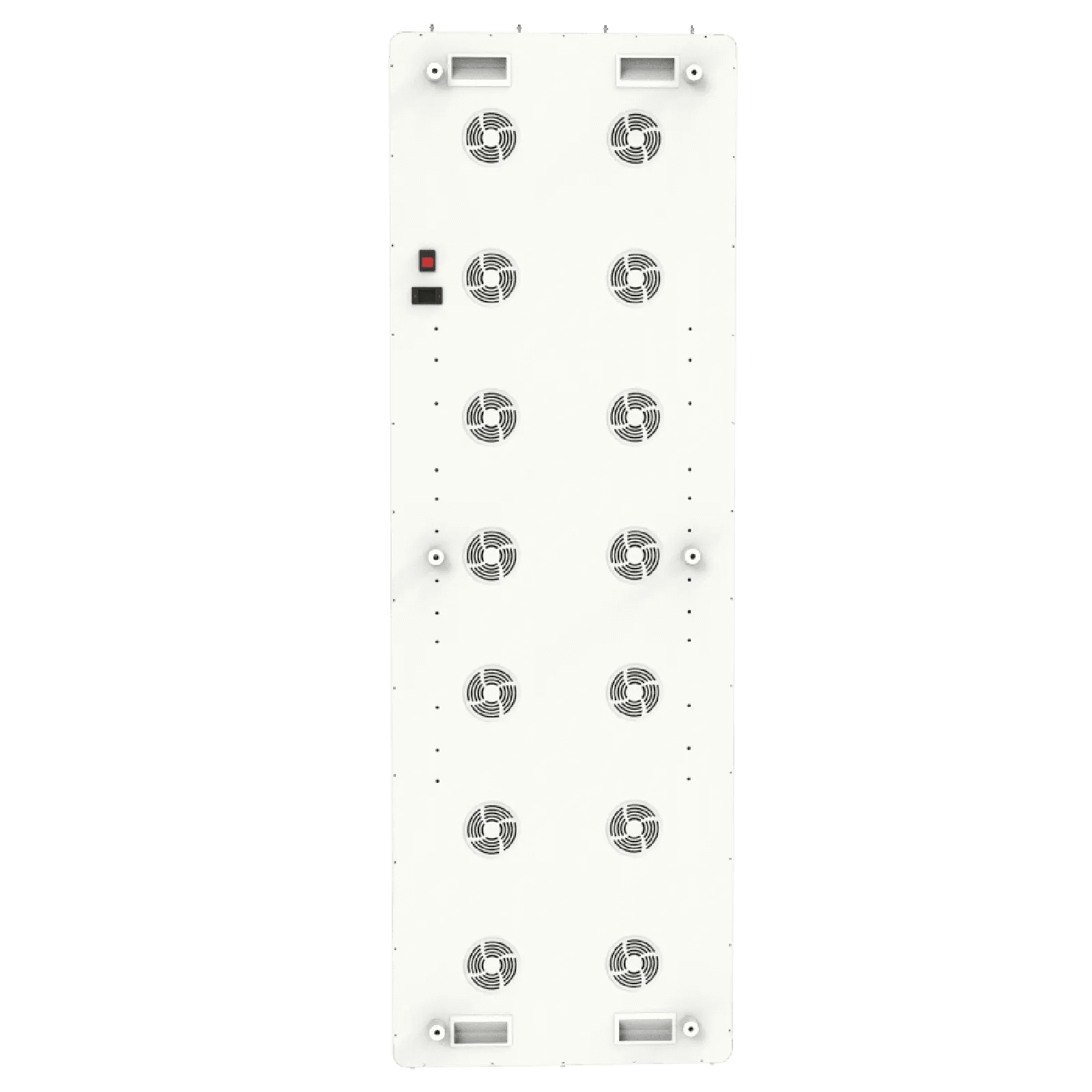

- Cooling: fourteen cooling fans
- Low-power mode: a switch on the unit reduces light output to 75%
- LED lifespan: 50,000 hours, manufacturer-rated
Have a qualified electrician confirm your intended supply before installation. The figures above are REDDOT’s stated values for the device. What supply and circuit are appropriate at your property depends on your wiring, what else is on the circuit and local requirements — that is an assessment for an electrician, and we do not make it on this page.
The low-power switch is worth knowing about: set to position 1, output drops to 75%. It is a hardware switch on the unit, separate from the touchscreen dimming.
Size, Mounting & What Is Included

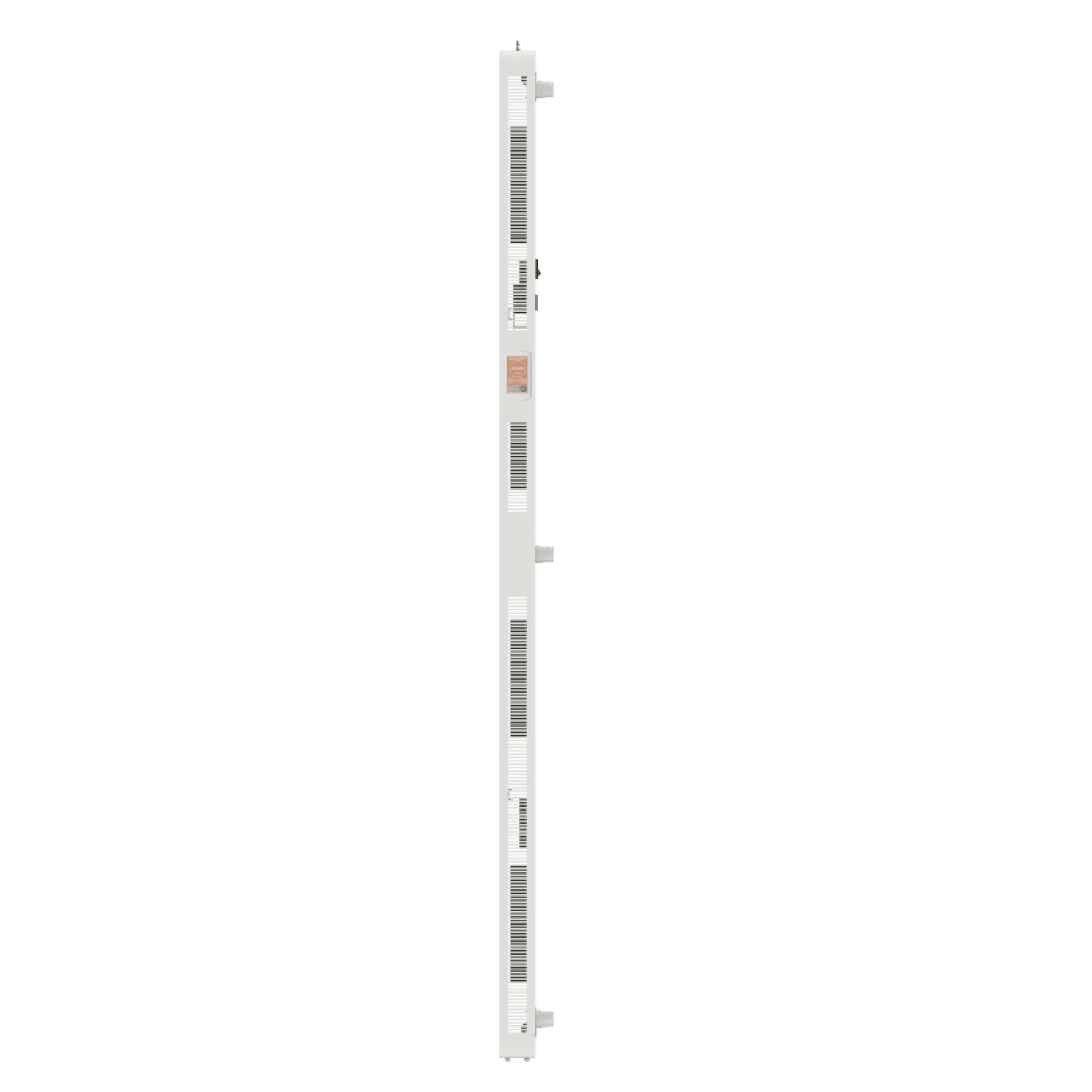

- Panel dimensions: 180 × 60 × 6.6 cm (70.9 × 23.6 × 2.6 in)
- Weight: 40.6 kg (89.5 lb)
- Maximum coverage: 221 × 119 cm (87 × 46.9 in), at 90 cm
- Mounting: Wall stand (bracket) included
- Wall bracket rating: maximum load 43 kg (94.8 lb), fixed with four wall anchors
What is included, per REDDOT’s accessory list for this model:
- LED therapy light (panel)
- Remote control
- Wall stand
- Power cable
- Eye protection
Check the bracket against the panel. REDDOT rates the supplied bracket to a maximum load of 43 kg and this panel weighs 40.6 kg, so the panel is within the rating. The fixing into your wall is the part the rating does not cover — use anchors appropriate to your wall construction, and have the installation done professionally if you are not certain.
We list only what appears on REDDOT’s accessory page for this model. If an item is not listed above, assume it is not included and ask us before ordering.
Warranty, EMF & Manufacturer Information
- Manufacturer warranty: 3 years
- Brand: REDDOT LED
- Model: RDPRO6000-FS7
- GTIN / UPC: none assigned by the manufacturer
So we do not restate it as a claim. You will not see this panel described on our site as zero-EMF, near-zero-EMF, ultra-low-EMF or low-EMF, because a single unquantified word in a manual does not support any of those. We have reported what the manufacturer states, attributed to the manufacturer, and left it there. If a measured EMF figure matters to your decision, tell us and we will request one from REDDOT in writing before you order.
On identifiers. REDDOT has assigned no GTIN or UPC to the FS7 panels. We have not created one, and we do not repurpose a warranty or date code as a retail barcode. The manufacturer model number above is the identifier to quote when cross-referencing REDDOT documentation.
Warranty terms, coverage and claim procedures are set by the manufacturer and may vary by component. Review REDDOT’s current warranty documentation for the terms that apply to your panel, and keep your purchase documentation for future support reference.
Verified Specifications
| Brand | REDDOT LED |
|---|---|
| Model | RDPRO6000-FS7 |
| Product Type | LED light therapy panel |
| Wavelengths | 7 channels — 480, 630, 660, 810, 830, 850 and 1060 nm |
| Channel Control | Each wavelength individually dimmable, 0–100% |
| Irradiance | 124 mW/cm² at 15 cm, manufacturer-measured with all seven channels at 100% |
| LED Array | 1200 dual-chip LEDs |
| LED Lifespan | 50,000 hours (manufacturer-rated) |
| Beam Angle | 30 degrees |
| Coverage Classification | Full body |
| Maximum Coverage | 221 × 119 cm (87 × 46.9 in) at 90 cm |
| Pulsing | 0–9999 Hz, near-infrared channels only (810, 830, 850 and 1060 nm) |
| Timer | 1–30 minutes, adjustable |
| Controls | On-board touchscreen, wireless remote, RLT System app (iOS and Android) |
| Power Consumption | 1880 W |
| Current @ 120 V | 15.67 A |
| Current @ 220 V | 8.5 A |
| Cooling | Fourteen cooling fans |
| Dimensions | 180 × 60 × 6.6 cm (70.9 × 23.6 × 2.6 in) |
| Weight | 40.6 kg (89.5 lb) |
| Mounting | Wall stand (bracket) included |
| Wall Bracket Rating | Maximum load 43 kg (94.8 lb) |
| Low-Power Mode | Switch reduces light output to 75% |
| EMF | Manufacturer states “Negligible”; no measured value published |
| Warranty | 3 years (manufacturer) |
| GTIN / UPC | None assigned by the manufacturer |
Compare the REDDOT RDPRO FS7 Range
| Model | LEDs | Irradiance @ 15 cm | Max coverage | Power | Coverage class |
|---|---|---|---|---|---|
| RDPRO300-FS7 | 60 | 118 mW/cm² | 71 × 61 cm | 99 W | Targeted |
| RDPRO750-FS7 | 150 | 114 mW/cm² | 86 × 98 cm | 219 W | Targeted |
| RDPRO1500-FS7 | 300 | 131 mW/cm² | 119 × 61 cm | 467 W | Half body |
| RDPRO3000-FS7 | 600 | 115 mW/cm² | 198 × 71 cm | 1050 W | Full body |
| RDPRO6000-FS7 (this page) | 1200 | 124 mW/cm² | 221 × 119 cm | 1880 W | Full body |
All five panels emit the same seven wavelengths and carry the same control set, timer range, beam angle, LED lifespan rating and 3-year warranty. The choice between them is coverage, output at working distance, electrical draw and how the panel mounts. Irradiance at 15 cm sits in a narrow band across the range — it is the coverage column, and how well each panel holds output as you step back, that actually separates them.
Read the Red Light & Near-Infrared Buyer’s Guide, browse the full REDDOT LED range and all red light panels, or ask us which panel suits your room and intended use.
Common Questions
What wavelengths does this panel emit?
Seven, individually controlled: 480 nm (blue), 630 and 660 nm (red), and 810, 830, 850 and 1060 nm (near-infrared). Each channel is dimmable from 0 to 100%, so the panel can be run as red-only, near-infrared-only, or any combination.
What does “124 mW/cm² at 15 cm” actually mean?
It is the irradiance REDDOT measures at 15 cm from the panel with all seven channels running at 100%. Distance and channel state both change the figure — at 90 cm this panel measures 80 mW/cm². Figures quoted at other distances, or with only some channels active, are not comparable.
Does it work with an app?
Yes. REDDOT has confirmed in writing that all five FS7 panels support the RLT System app, available on the App Store and Google Play. The panel also has an on-board touchscreen and ships with a wireless remote.
Do all seven wavelengths pulse?
No. Pulsing from 0 to 9999 Hz applies to the four near-infrared channels only — 810, 830, 850 and 1060 nm. The blue and red channels are dimmable but are not pulsed.
What electrical supply does it need?
REDDOT states 1880 W power consumption, 15.67 A at 120 V and 8.5 A at 220 V — materially higher than any other FS7 panel. Have a qualified electrician confirm your intended supply and circuit before installation. We do not specify a circuit rating for your property; that is an assessment for your electrician.
Can I install it myself?
We would not recommend it. The panel weighs 40.6 kg and the supplied bracket is rated to a maximum of 43 kg, so the margin is small and the fixing into your wall is the critical part. Use a competent installer and fixings appropriate to your wall construction.
What does REDDOT publish about EMF?
One word. REDDOT’s manual lists EMF emission as “Negligible” with no measured value, test distance or standard published. That is the whole of what the manufacturer publishes. We report the manufacturer’s wording and attribute it, and we do not convert it into a low-EMF, near-zero-EMF or zero-EMF claim. If a measured figure matters to you, ask us and we will request one from REDDOT in writing.
Does it have a barcode or UPC?
No. REDDOT has assigned no GTIN or UPC to the FS7 panels, and we have not created one. Quote the model number RDPRO6000-FS7 when cross-referencing REDDOT documentation.
What warranty applies?
Three years from the manufacturer. Coverage and claim procedures are set by REDDOT and may vary by component. Review REDDOT’s current warranty documentation for the terms that apply to your panel.
How is this different from the other FS7 panels?
Every FS7 panel shares the same seven wavelengths, control set, 1–30 minute timer, 30-degree beam angle, 50,000-hour LED rating and 3-year warranty. This one has 1200 dual-chip LEDs, draws 1880 W and covers up to 221 × 119 cm. The comparison table above sets all five side by side.
Why Buy From Wellari Wellness
Manufacturer Specifications, Stated Plainly
Every figure on this page — wavelengths, irradiance and the distance it was measured at, LED count, power consumption, current, coverage area, dimensions, weight, fan count, bracket load rating, timer range, warranty and what is in the box — comes from REDDOT’s current published documentation for this model, together with written clarifications from REDDOT. Where the manufacturer states something without quantifying it, we attribute it and do not strengthen it. And we do not reproduce the therapeutic claims that appear in the manufacturer’s manual. Products are sourced through verified manufacturer, distributor or supplier channels.
Not sure which FS7 panel fits your space?
Tell us the room, the working distance you have available, whether the panel needs to stand, hang or wall-mount, and what supply is already in place. We will tell you which of the five fits — including when a smaller panel is the right answer.
Request Product Guidance
