REDDOT LED • RDPRO3000-FS7
REDDOT RDPRO3000-FS7 7-Wavelength LED Light Therapy Panel

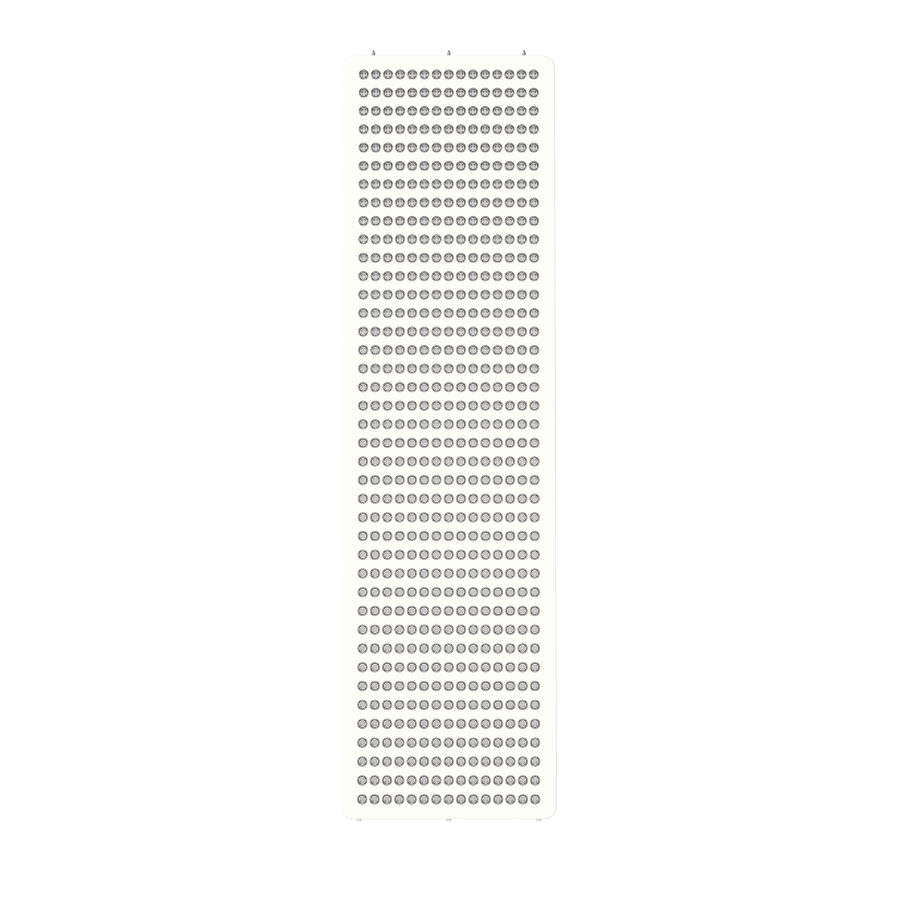

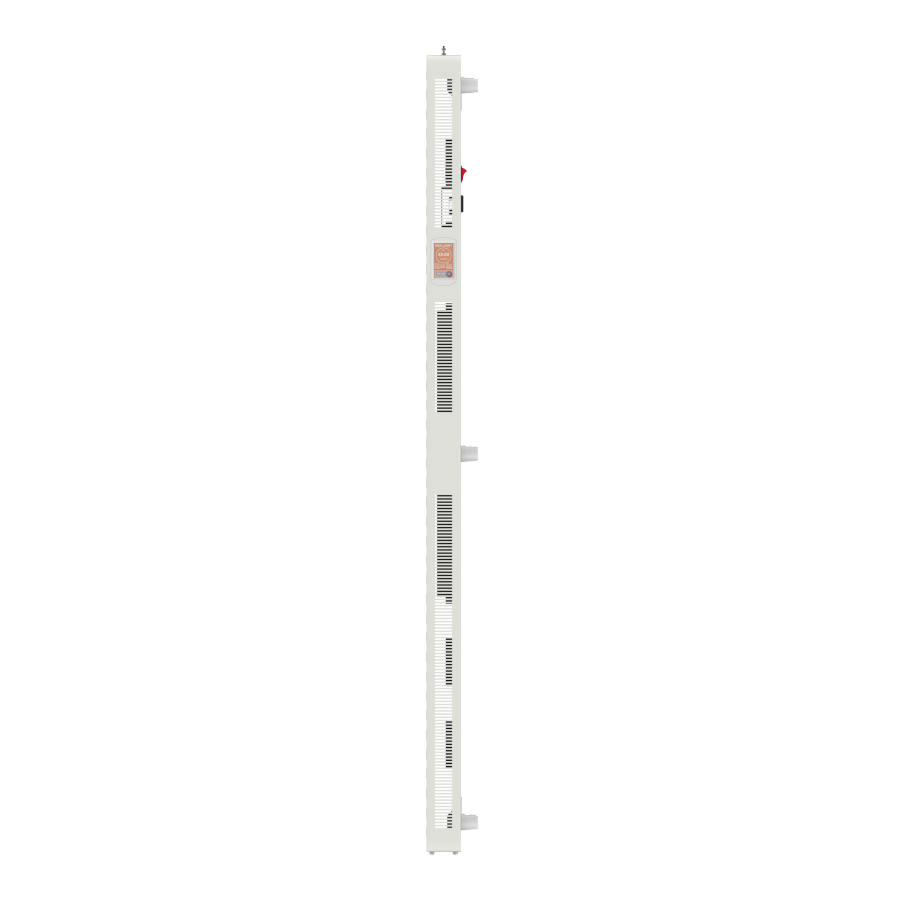

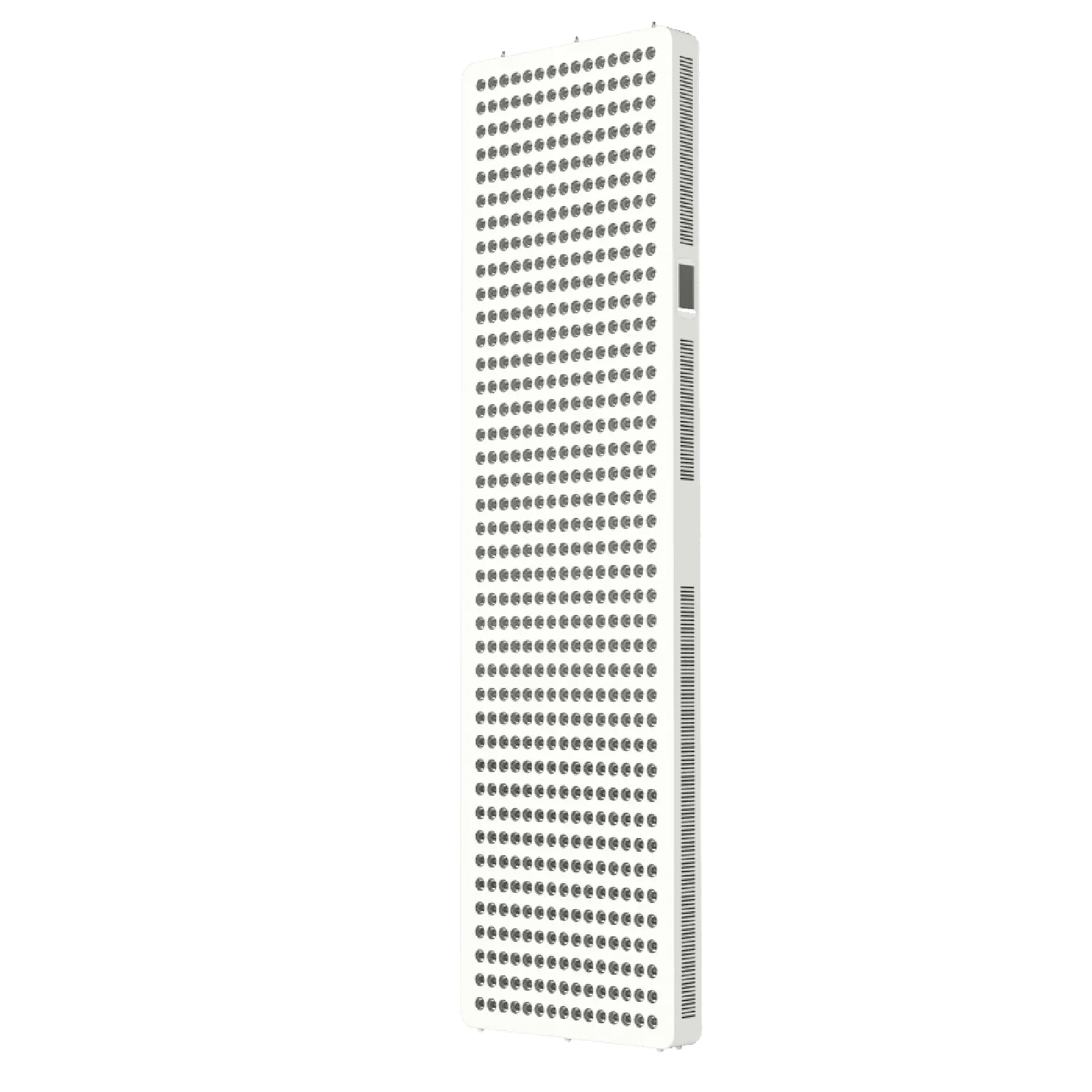

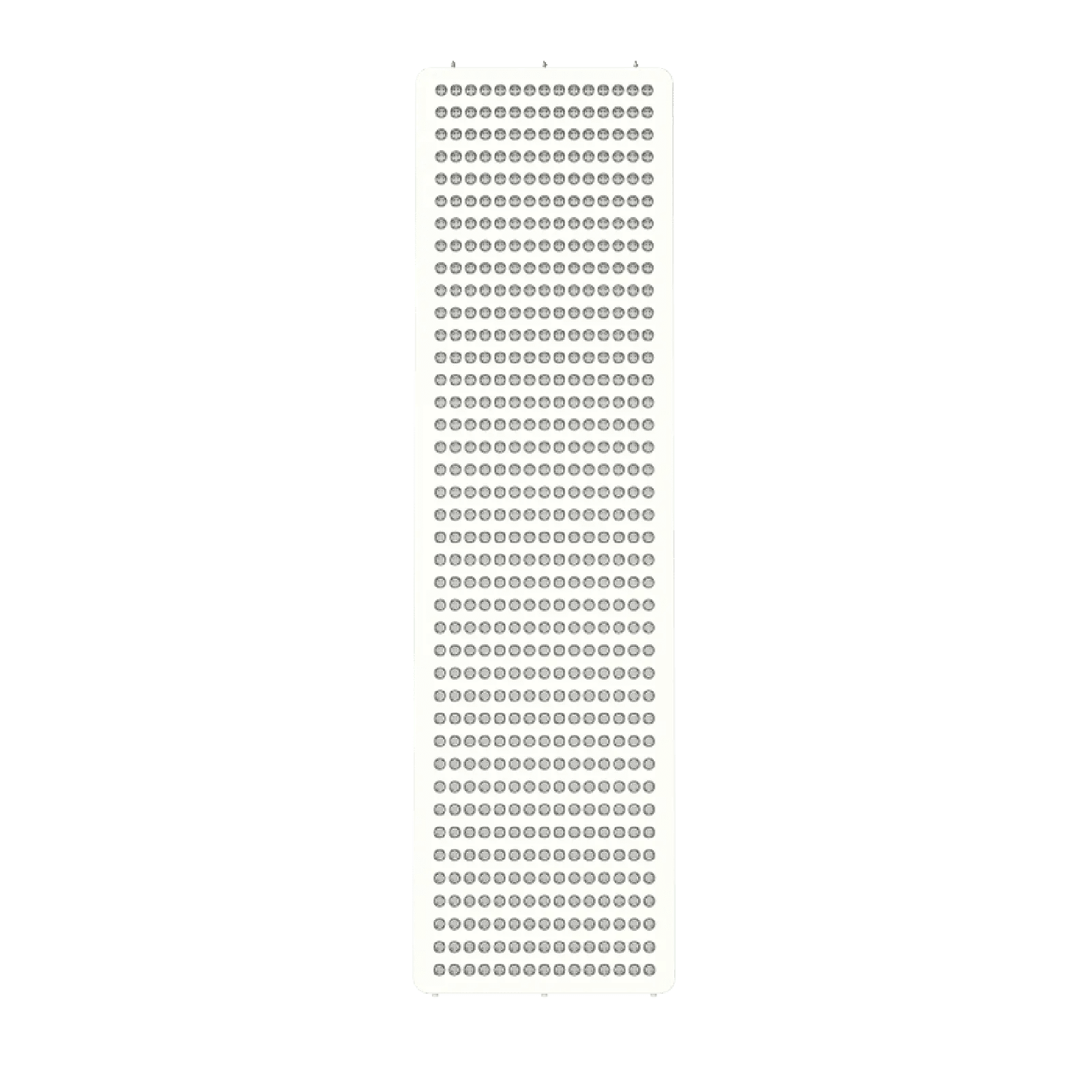

The RDPRO3000-FS7 is REDDOT’s 150 cm full-body panel — 600 dual-chip LEDs in a 150 × 42 × 6.6 cm body weighing 23.2 kg, cooled by eight fans. It emits seven wavelengths (480, 630, 660, 810, 830, 850 and 1060 nm), each dimmable independently from 0–100%, draws 1050 W, and ships with a wall stand. REDDOT measures its irradiance at 115 mW/cm² at 15 cm with all seven channels at 100% and classifies its coverage as full body.
Wellari Expert Take
Why Consider the RDPRO3000-FS7?
The RDPRO3000-FS7 is the first panel in the range REDDOT classifies as full body, and the number that earns that label is not the 15 cm irradiance — it is the coverage at working distance. At 90 cm this panel illuminates 198 × 71 cm. That is a standing adult with room to spare, in one field, without repositioning.
It also holds output at distance far better than the smaller panels. REDDOT’s curve runs 115 mW/cm² at 15 cm to 65 mW/cm² at 90 cm — about 57% retained, against roughly 19% for the compact RDPRO300-FS7. This matters because a full-body session is necessarily a session at distance: you cannot stand 15 cm from a 150 cm panel and be evenly covered. The number that describes your actual session is the one at 60–90 cm, and on this panel that number stays high.
Plan the installation before you buy. The panel weighs 23.2 kg and the supplied wall bracket is rated to a maximum load of 32 kg, so the panel is within the bracket’s rating — but the bracket is only as good as what it is fixed to. REDDOT’s stated draw is 1050 W, 8.75 A at 120 V or 4.61 A at 220 V; confirm your intended supply with a qualified electrician before installation.
Best For
- Full-body sessions in a single field, with no repositioning
- Studios, gyms and practices running consecutive sessions
- Rooms with a solid wall that can take a fixed 23.2 kg installation
- Buyers who work at 60–90 cm, where this panel retains about 57% of its 15 cm output
- Setups where the mounting hardware being in the box matters to the total cost
RDPRO3000-FS7 Features & Buying Details
The Seven-Wavelength Spectrum
- Blue: 480 nm
- Red: 630 nm and 660 nm
- Near-infrared: 810 nm, 830 nm, 850 nm and 1060 nm
- Channel control: each of the seven wavelengths is dimmable independently from 0–100%
- Group control: the touchscreen also sets the blue, red and near-infrared groups together
All five FS7 panels emit the same seven wavelengths. What differs between models is array size, coverage and power — not the spectrum. Every channel can be set to zero, so the panel can be run as red-only, near-infrared-only, or any combination.
What we do not claim. Wellari publishes the wavelengths this device emits and the output REDDOT measures. We do not attach health, therapeutic or performance outcomes to any wavelength, and we do not reproduce the outcome claims that appear in the manufacturer’s manual. If you are considering light therapy for a specific concern, that is a conversation for a qualified healthcare professional who knows your history.
Irradiance & Operating Distance
REDDOT measures 115 mW/cm² at 15 cm, with all seven channels running at 100%. Both halves of that sentence matter. A figure quoted at a different distance, or with only the red and near-infrared channels active, is not comparable to this one.
| Distance | Irradiance | Illuminated field |
|---|---|---|
| 15 cm | 115 mW/cm² | 149 × 40 cm |
| 30 cm | 90 mW/cm² | 160 × 46 cm |
| 45 cm | 81 mW/cm² | 171 × 51 cm |
| 60 cm | 76 mW/cm² | 180 × 52 cm |
| 90 cm | 65 mW/cm² | 198 × 71 cm |
The table above is REDDOT’s published curve for this model — irradiance and the size of the illuminated field at each distance. Output falls as distance rises and the field widens; this panel retains about 57% of its 15 cm figure at 90 cm.
REDDOT’s manual specifies an operating distance of 6–12 inches (roughly 15–30 cm) and sessions of 2–15 minutes depending on distance. Follow the manufacturer’s current instructions rather than anything you read on a retail page, including this one.
We do not compare these figures to other brands. Manufacturers measure irradiance at different distances, with different channels active, using different instruments. Unless the method matches, the comparison is not meaningful.
Controls, Presets & App
- On-board touchscreen: brightness, timer and pulse, set per channel or by group
- Wireless remote: pressing on/off once runs the red and near-infrared channels at 100% for 20 minutes; a smart-mode button cycles the preset programs
- App: RLT System, available on the App Store and Google Play
- Preset programs: eleven built-in programs, each carrying its own default brightness, time and pulse settings
- Saved settings: three user presets stored in device memory
- Groups: three remote groups, so multiple panels in one room can be controlled separately
- Timer: 1–30 minutes, with an audible alert at the halfway point and automatic screen-off
- Pulsing: 0–9999 Hz, near-infrared channels only, adjustable per channel
Pulsing applies to the near-infrared channels only — 810, 830, 850 and 1060 nm. The blue and red channels (480, 630 and 660 nm) are dimmable but are not pulsed. This is a point where product listings in this category are frequently loose, so we state it precisely: a “0–9999 Hz” figure on an FS7 panel describes the four near-infrared channels, not all seven.
App support is confirmed for all five FS7 panels. REDDOT has confirmed this directly in writing. Older dealer documentation listed app control for the RDPRO750-FS7 only; that information is superseded.
We do not publish the manufacturer’s names for the eleven preset programs. Several of them are named after health conditions and outcomes, and reproducing those names on a retail page would imply claims we are not in a position to support. The programs are simply combinations of brightness, time and pulse settings, and every one of those settings can be adjusted manually.

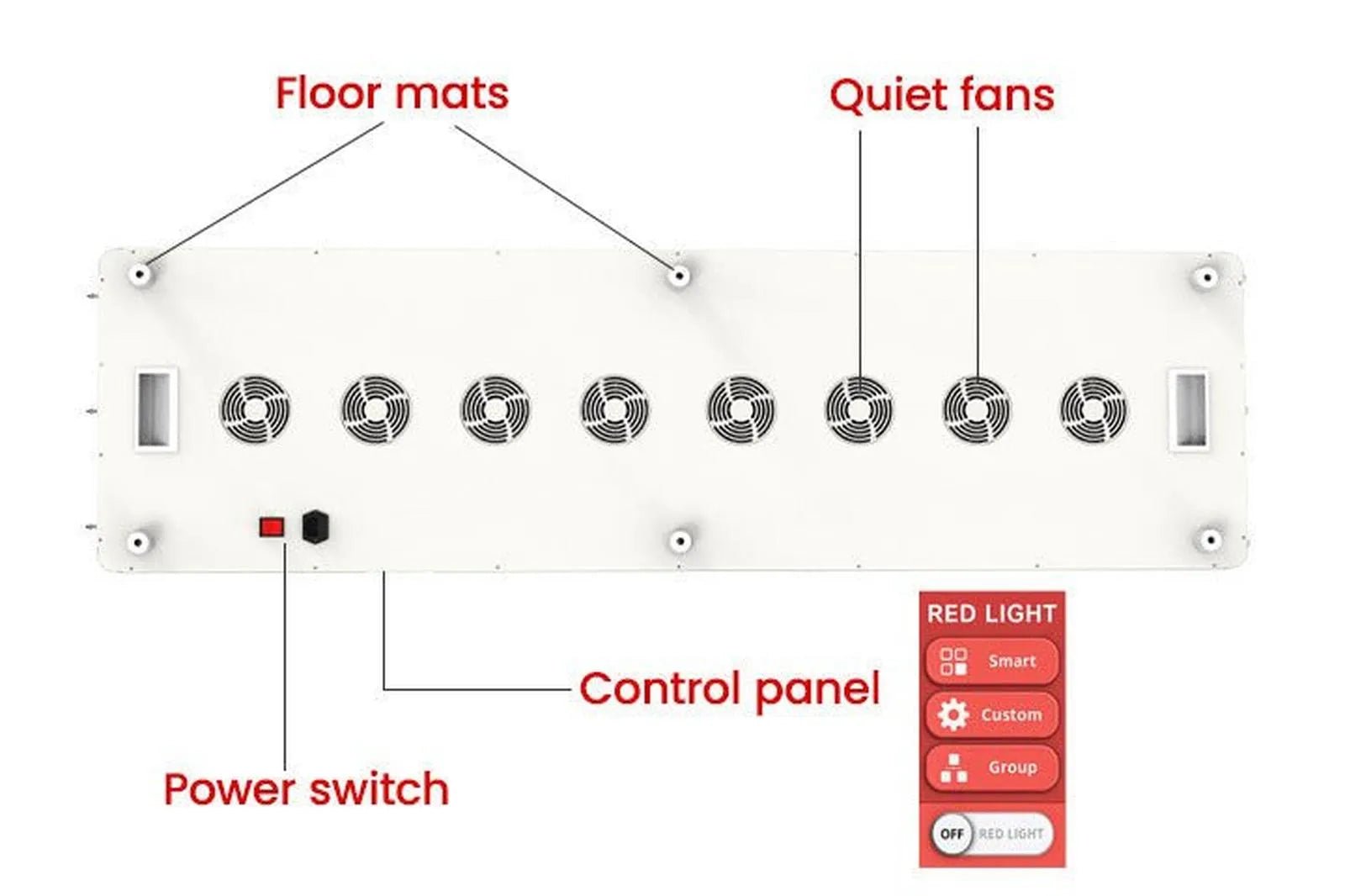

Power, Cooling & Electrical
- Power consumption: 1050 W (manufacturer-stated)
- Current at 120 V: 8.75 A
- Current at 220 V: 4.61 A
- Cooling: eight cooling fans
- Low-power mode: a switch on the unit reduces light output to 75%
- LED lifespan: 50,000 hours, manufacturer-rated
Have a qualified electrician confirm your intended supply before installation. The figures above are REDDOT’s stated values for the device. What supply and circuit are appropriate at your property depends on your wiring, what else is on the circuit and local requirements — that is an assessment for an electrician, and we do not make it on this page.
The low-power switch is worth knowing about: set to position 1, output drops to 75%. It is a hardware switch on the unit, separate from the touchscreen dimming.
Size, Mounting & What Is Included
- Panel dimensions: 150 × 42 × 6.6 cm (59.1 × 16.5 × 2.6 in)
- Weight: 23.2 kg (51.1 lb)
- Maximum coverage: 198 × 71 cm (78 × 28 in), at 90 cm
- Mounting: Wall stand (bracket) included
- Wall bracket rating: maximum load 32 kg (70.5 lb), fixed with two wall anchors
What is included, per REDDOT’s accessory list for this model:
- LED therapy light (panel)
- Remote control
- Wall stand
- Power cable
- Eye protection
Check the bracket against the panel. REDDOT rates the supplied bracket to a maximum load of 32 kg and this panel weighs 23.2 kg, so the panel is within the rating. The fixing into your wall is the part the rating does not cover — use anchors appropriate to your wall construction, and have the installation done professionally if you are not certain.
We list only what appears on REDDOT’s accessory page for this model. If an item is not listed above, assume it is not included and ask us before ordering.
Warranty, EMF & Manufacturer Information
- Manufacturer warranty: 3 years
- Brand: REDDOT LED
- Model: RDPRO3000-FS7
- GTIN / UPC: none assigned by the manufacturer
So we do not restate it as a claim. You will not see this panel described on our site as zero-EMF, near-zero-EMF, ultra-low-EMF or low-EMF, because a single unquantified word in a manual does not support any of those. We have reported what the manufacturer states, attributed to the manufacturer, and left it there. If a measured EMF figure matters to your decision, tell us and we will request one from REDDOT in writing before you order.
On identifiers. REDDOT has assigned no GTIN or UPC to the FS7 panels. We have not created one, and we do not repurpose a warranty or date code as a retail barcode. The manufacturer model number above is the identifier to quote when cross-referencing REDDOT documentation.
Warranty terms, coverage and claim procedures are set by the manufacturer and may vary by component. Review REDDOT’s current warranty documentation for the terms that apply to your panel, and keep your purchase documentation for future support reference.
Verified Specifications
| Brand | REDDOT LED |
|---|---|
| Model | RDPRO3000-FS7 |
| Product Type | LED light therapy panel |
| Wavelengths | 7 channels — 480, 630, 660, 810, 830, 850 and 1060 nm |
| Channel Control | Each wavelength individually dimmable, 0–100% |
| Irradiance | 115 mW/cm² at 15 cm, manufacturer-measured with all seven channels at 100% |
| LED Array | 600 dual-chip LEDs |
| LED Lifespan | 50,000 hours (manufacturer-rated) |
| Beam Angle | 30 degrees |
| Coverage Classification | Full body |
| Maximum Coverage | 198 × 71 cm (78 × 28 in) at 90 cm |
| Pulsing | 0–9999 Hz, near-infrared channels only (810, 830, 850 and 1060 nm) |
| Timer | 1–30 minutes, adjustable |
| Controls | On-board touchscreen, wireless remote, RLT System app (iOS and Android) |
| Power Consumption | 1050 W |
| Current @ 120 V | 8.75 A |
| Current @ 220 V | 4.61 A |
| Cooling | Eight cooling fans |
| Dimensions | 150 × 42 × 6.6 cm (59.1 × 16.5 × 2.6 in) |
| Weight | 23.2 kg (51.1 lb) |
| Mounting | Wall stand (bracket) included |
| Wall Bracket Rating | Maximum load 32 kg (70.5 lb) |
| Low-Power Mode | Switch reduces light output to 75% |
| EMF | Manufacturer states “Negligible”; no measured value published |
| Warranty | 3 years (manufacturer) |
| GTIN / UPC | None assigned by the manufacturer |
Compare the REDDOT RDPRO FS7 Range
| Model | LEDs | Irradiance @ 15 cm | Max coverage | Power | Coverage class |
|---|---|---|---|---|---|
| RDPRO300-FS7 | 60 | 118 mW/cm² | 71 × 61 cm | 99 W | Targeted |
| RDPRO750-FS7 | 150 | 114 mW/cm² | 86 × 98 cm | 219 W | Targeted |
| RDPRO1500-FS7 | 300 | 131 mW/cm² | 119 × 61 cm | 467 W | Half body |
| RDPRO3000-FS7 (this page) | 600 | 115 mW/cm² | 198 × 71 cm | 1050 W | Full body |
| RDPRO6000-FS7 | 1200 | 124 mW/cm² | 221 × 119 cm | 1880 W | Full body |
All five panels emit the same seven wavelengths and carry the same control set, timer range, beam angle, LED lifespan rating and 3-year warranty. The choice between them is coverage, output at working distance, electrical draw and how the panel mounts. Irradiance at 15 cm sits in a narrow band across the range — it is the coverage column, and how well each panel holds output as you step back, that actually separates them.
Read the Red Light & Near-Infrared Buyer’s Guide, browse the full REDDOT LED range and all red light panels, or ask us which panel suits your room and intended use.
Common Questions
What wavelengths does this panel emit?
Seven, individually controlled: 480 nm (blue), 630 and 660 nm (red), and 810, 830, 850 and 1060 nm (near-infrared). Each channel is dimmable from 0 to 100%, so the panel can be run as red-only, near-infrared-only, or any combination.
What does “115 mW/cm² at 15 cm” actually mean?
It is the irradiance REDDOT measures at 15 cm from the panel with all seven channels running at 100%. Distance and channel state both change the figure — at 90 cm this panel measures 65 mW/cm². Figures quoted at other distances, or with only some channels active, are not comparable.
Does it work with an app?
Yes. REDDOT has confirmed in writing that all five FS7 panels support the RLT System app, available on the App Store and Google Play. The panel also has an on-board touchscreen and ships with a wireless remote.
Do all seven wavelengths pulse?
No. Pulsing from 0 to 9999 Hz applies to the four near-infrared channels only — 810, 830, 850 and 1060 nm. The blue and red channels are dimmable but are not pulsed.
Is the wall stand included?
Yes. REDDOT supplies a wall stand with this panel, along with the remote control, power cable and eye protection. The bracket is rated to a maximum load of 32 kg and the panel weighs 23.2 kg. Fixings must be appropriate to your wall construction — have the installation done professionally if you are unsure.
What electrical supply does it need?
REDDOT states 1050 W power consumption, 8.75 A at 120 V and 4.61 A at 220 V. Confirm your intended supply and circuit with a qualified electrician before installation. We do not specify a circuit rating for your property — that is an assessment for your electrician.
What does REDDOT publish about EMF?
One word. REDDOT’s manual lists EMF emission as “Negligible” with no measured value, test distance or standard published. That is the whole of what the manufacturer publishes. We report the manufacturer’s wording and attribute it, and we do not convert it into a low-EMF, near-zero-EMF or zero-EMF claim. If a measured figure matters to you, ask us and we will request one from REDDOT in writing.
Does it have a barcode or UPC?
No. REDDOT has assigned no GTIN or UPC to the FS7 panels, and we have not created one. Quote the model number RDPRO3000-FS7 when cross-referencing REDDOT documentation.
What warranty applies?
Three years from the manufacturer. Coverage and claim procedures are set by REDDOT and may vary by component. Review REDDOT’s current warranty documentation for the terms that apply to your panel.
How is this different from the other FS7 panels?
Every FS7 panel shares the same seven wavelengths, control set, 1–30 minute timer, 30-degree beam angle, 50,000-hour LED rating and 3-year warranty. This one has 600 dual-chip LEDs, draws 1050 W and covers up to 198 × 71 cm. The comparison table above sets all five side by side.
