REDDOT LED • RDPRO1500-FS7
REDDOT RDPRO1500-FS7 7-Wavelength LED Light Therapy Panel

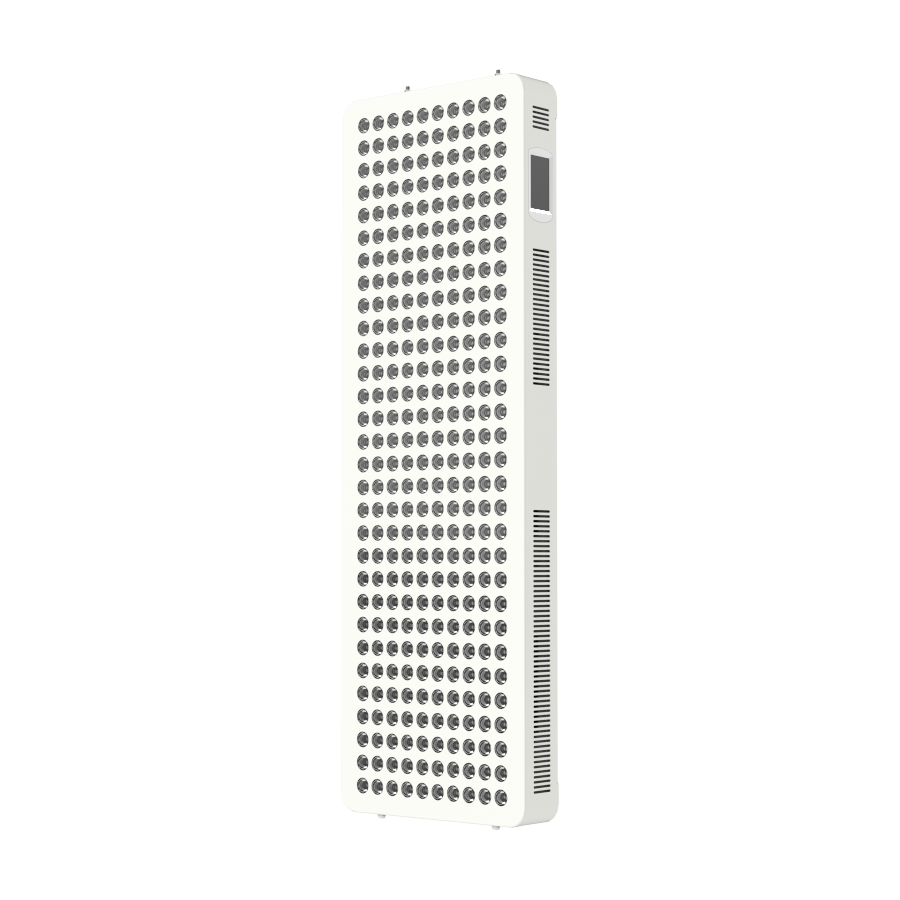

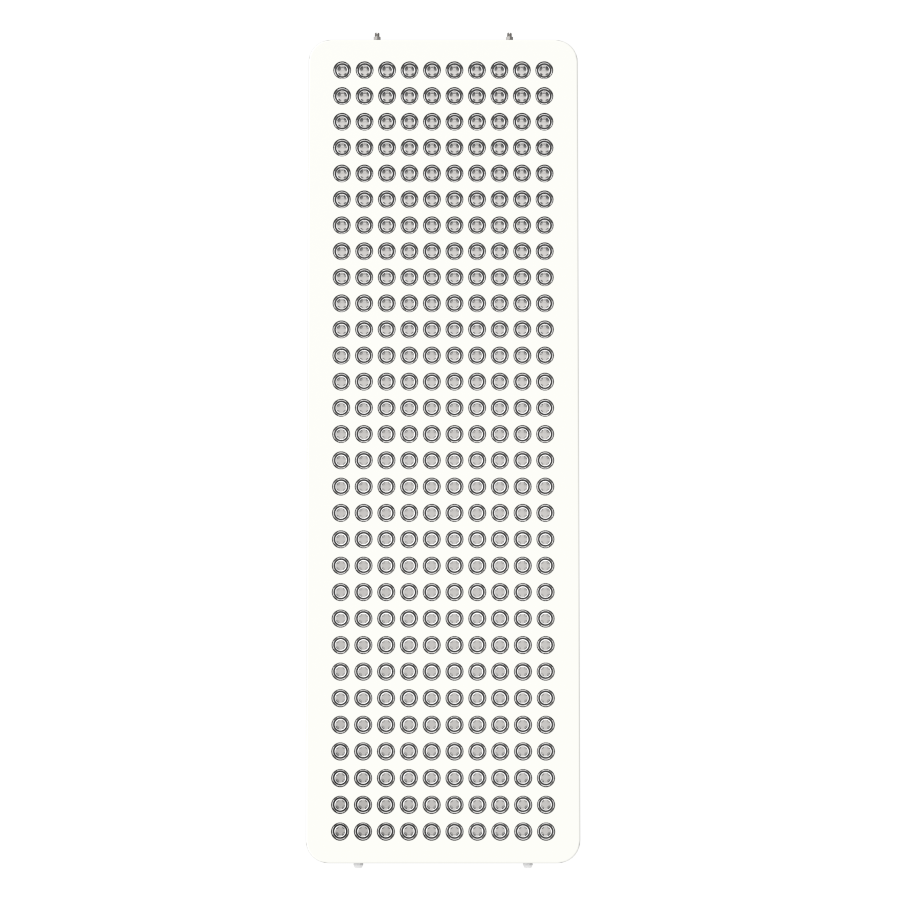

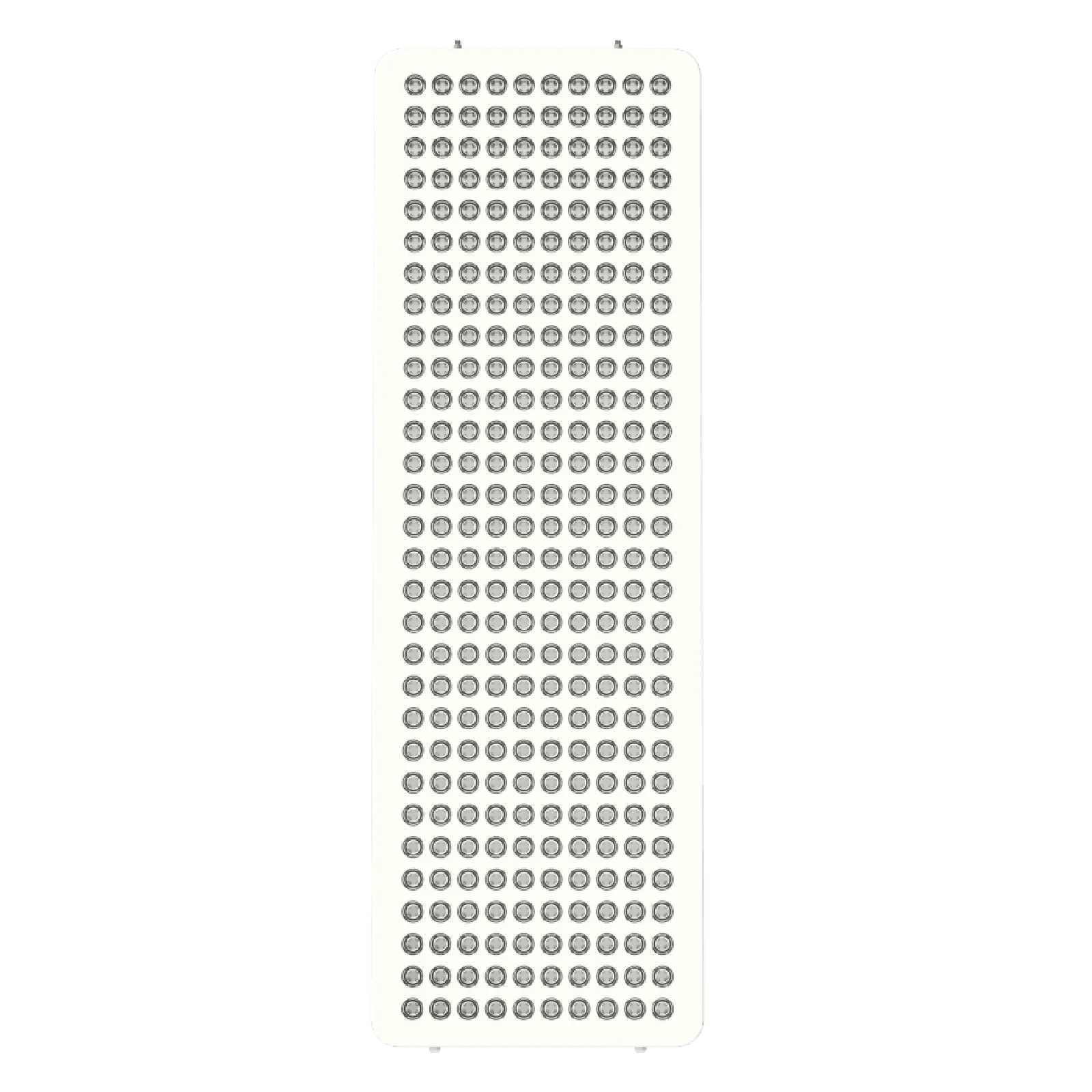

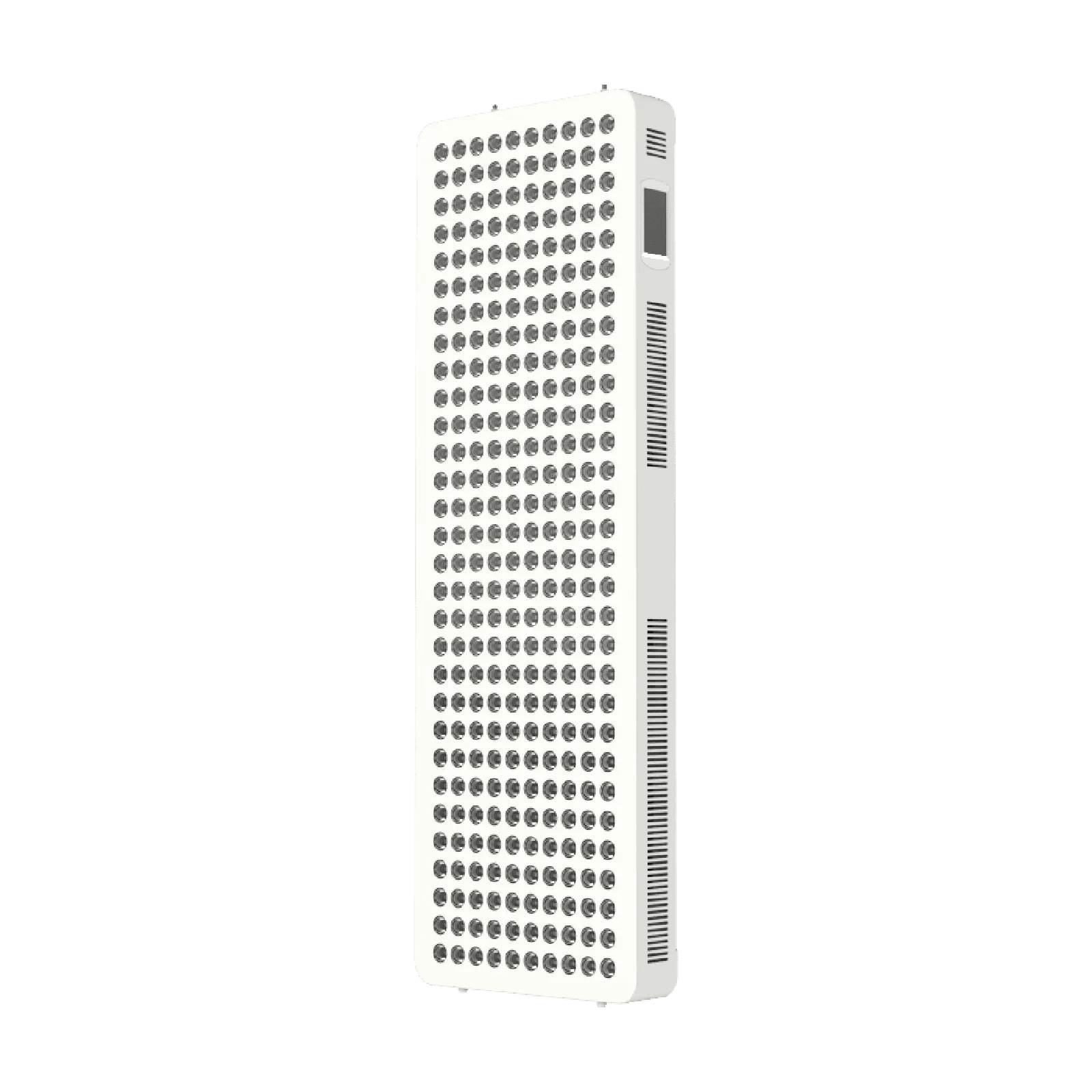

The RDPRO1500-FS7 is the 91 cm panel in REDDOT’s RDPRO FS7 range — 300 dual-chip LEDs in a 91 × 30 × 6.6 cm body weighing 10.8 kg. It emits seven wavelengths (480, 630, 660, 810, 830, 850 and 1060 nm), each dimmable independently from 0–100%. REDDOT measures its irradiance at 131 mW/cm² at 15 cm with all seven channels at 100% — the highest 15 cm figure of the five FS7 panels — and classifies its coverage as half body.
Wellari Expert Take
Why Consider the RDPRO1500-FS7?
This panel holds the highest 15 cm irradiance in the FS7 range at 131 mW/cm², and it pairs that with 119 × 61 cm of coverage at its widest working distance. Among the five, it is the one that does not force much of a trade — you are not giving up intensity to gain area, or the reverse.
One thing we will state directly, because it affects how you should size it: REDDOT classifies this model as a half-body panel, with a maximum coverage of 119 × 61 cm. That is a large field, and for many buyers it is the practical choice — you reposition once mid-session rather than buying a 150 cm or 180 cm panel. But if you want a single panel that covers head to toe without repositioning, the RDPRO3000-FS7 and RDPRO6000-FS7 are the models REDDOT designates full body. Two RDPRO1500-FS7 units can also be connected vertically using the threaded posts REDDOT supplies for the RDPRO series.
A note on electrical figures. REDDOT states power consumption of 467 W for this model, and separately states 4.25 A at 120 V. Those two figures do not reconcile with each other, so we publish the manufacturer’s stated wattage and withhold the 120 V current figure until REDDOT confirms it.
Best For
- Half-body sessions in a single field, with one reposition rather than two
- Buyers who want the highest published 15 cm irradiance in the FS7 range
- Studios and practices where session throughput matters more than a compact footprint
- Setups that may later be doubled — two units connect vertically via REDDOT’s threaded posts
- Rooms with a standard door, since the hook and hanging kit are included
RDPRO1500-FS7 Features & Buying Details
The Seven-Wavelength Spectrum
- Blue: 480 nm
- Red: 630 nm and 660 nm
- Near-infrared: 810 nm, 830 nm, 850 nm and 1060 nm
- Channel control: each of the seven wavelengths is dimmable independently from 0–100%
- Group control: the touchscreen also sets the blue, red and near-infrared groups together
All five FS7 panels emit the same seven wavelengths. What differs between models is array size, coverage and power — not the spectrum. Every channel can be set to zero, so the panel can be run as red-only, near-infrared-only, or any combination.
What we do not claim. Wellari publishes the wavelengths this device emits and the output REDDOT measures. We do not attach health, therapeutic or performance outcomes to any wavelength, and we do not reproduce the outcome claims that appear in the manufacturer’s manual. If you are considering light therapy for a specific concern, that is a conversation for a qualified healthcare professional who knows your history.
Irradiance & Operating Distance
REDDOT measures 131 mW/cm² at 15 cm, with all seven channels running at 100%. Both halves of that sentence matter. A figure quoted at a different distance, or with only the red and near-infrared channels active, is not comparable to this one.
| Distance | Irradiance | Illuminated field |
|---|---|---|
| 15 cm | 131 mW/cm² | 89 × 25 cm |
| 30 cm | 97 mW/cm² | 89 × 30 cm |
| 45 cm | 82 mW/cm² | 99 × 40 cm |
| 60 cm | 70 mW/cm² | 109 × 50 cm |
| 90 cm | 51 mW/cm² | 119 × 61 cm |
The table above is REDDOT’s published curve for this model — irradiance and the size of the illuminated field at each distance. Output falls as distance rises and the field widens; this panel retains about 39% of its 15 cm figure at 90 cm.
REDDOT’s manual specifies an operating distance of 6–12 inches (roughly 15–30 cm) and sessions of 2–15 minutes depending on distance. Follow the manufacturer’s current instructions rather than anything you read on a retail page, including this one.
We do not compare these figures to other brands. Manufacturers measure irradiance at different distances, with different channels active, using different instruments. Unless the method matches, the comparison is not meaningful.
Controls, Presets & App
- On-board touchscreen: brightness, timer and pulse, set per channel or by group
- Wireless remote: pressing on/off once runs the red and near-infrared channels at 100% for 20 minutes; a smart-mode button cycles the preset programs
- App: RLT System, available on the App Store and Google Play
- Preset programs: eleven built-in programs, each carrying its own default brightness, time and pulse settings
- Saved settings: three user presets stored in device memory
- Groups: three remote groups, so multiple panels in one room can be controlled separately
- Timer: 1–30 minutes, with an audible alert at the halfway point and automatic screen-off
- Pulsing: 0–9999 Hz, near-infrared channels only, adjustable per channel
Pulsing applies to the near-infrared channels only — 810, 830, 850 and 1060 nm. The blue and red channels (480, 630 and 660 nm) are dimmable but are not pulsed. This is a point where product listings in this category are frequently loose, so we state it precisely: a “0–9999 Hz” figure on an FS7 panel describes the four near-infrared channels, not all seven.
App support is confirmed for all five FS7 panels. REDDOT has confirmed this directly in writing. Older dealer documentation listed app control for the RDPRO750-FS7 only; that information is superseded.
We do not publish the manufacturer’s names for the eleven preset programs. Several of them are named after health conditions and outcomes, and reproducing those names on a retail page would imply claims we are not in a position to support. The programs are simply combinations of brightness, time and pulse settings, and every one of those settings can be adjusted manually.
Power, Cooling & Electrical
- Power consumption: 467 W (manufacturer-stated)
- Current at 220 V: 2.15 A

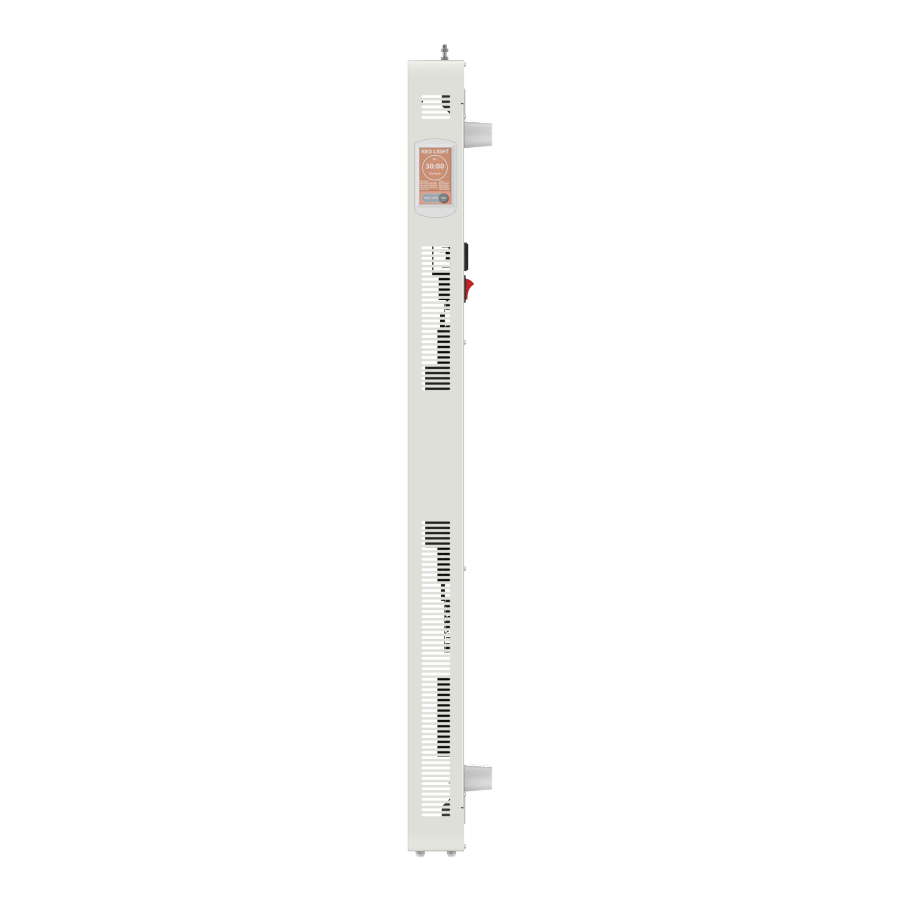

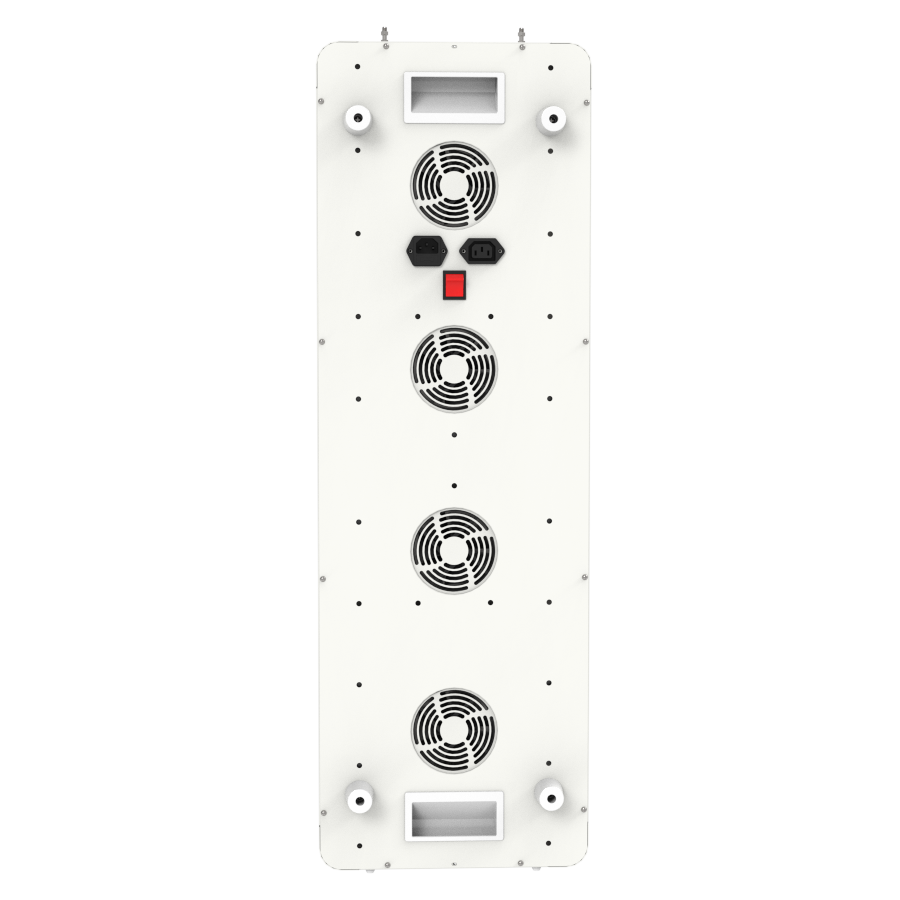

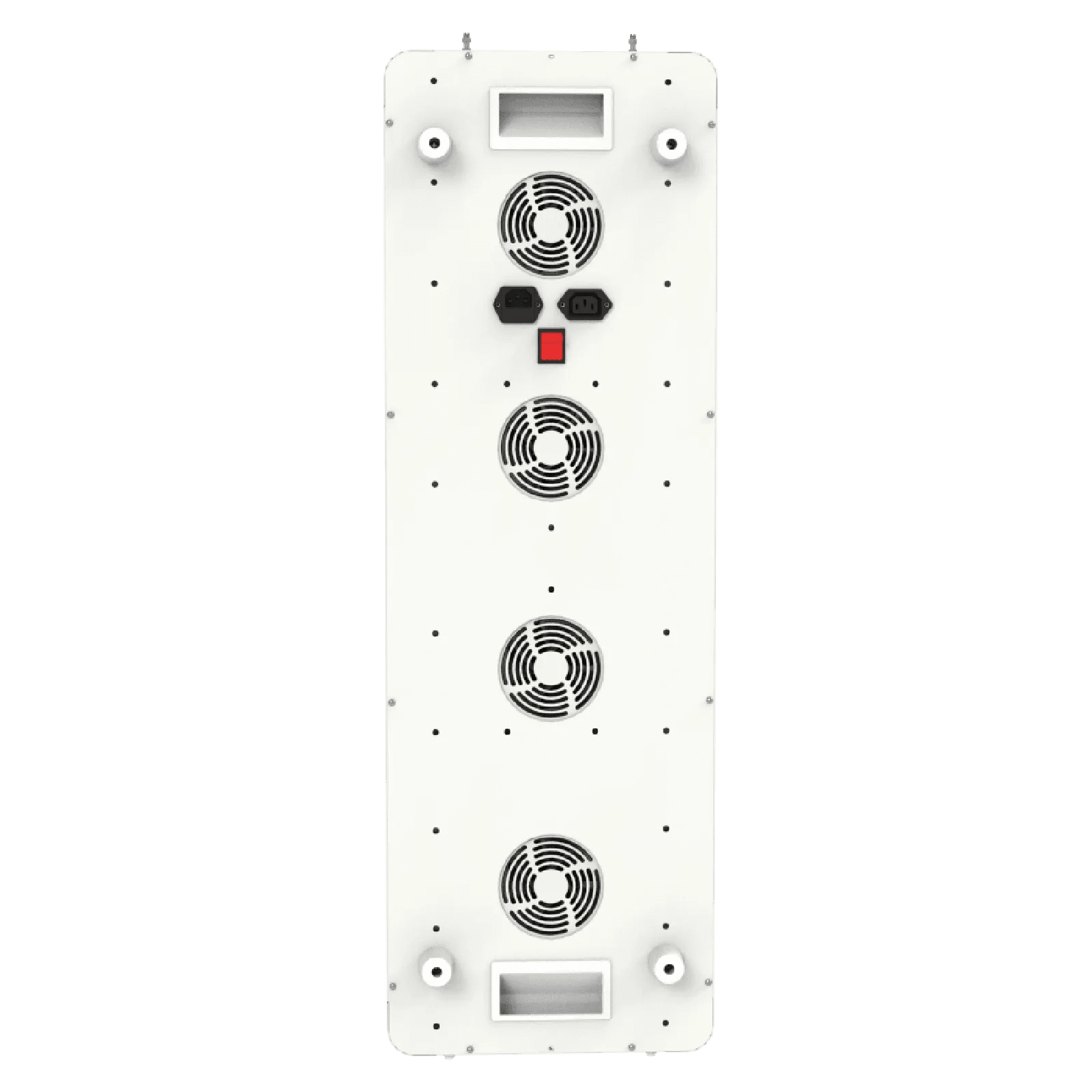

- Cooling: four cooling fans
- Low-power mode: a switch on the unit reduces light output to 75%
- LED lifespan: 50,000 hours, manufacturer-rated
Why there is no 120 V current figure above. REDDOT’s manual states 467 W power consumption and 4.25 A at 120 V for this model. Those two figures do not reconcile with each other. We publish the stated wattage and leave the current row off rather than publish either the manual’s number or one derived from it. We are seeking clarification from REDDOT and will add the row once it is confirmed.
Have a qualified electrician confirm your intended supply before installation. The figures above are REDDOT’s stated values for the device. What supply and circuit are appropriate at your property depends on your wiring, what else is on the circuit and local requirements — that is an assessment for an electrician, and we do not make it on this page.
The low-power switch is worth knowing about: set to position 1, output drops to 75%. It is a hardware switch on the unit, separate from the touchscreen dimming.
Size, Mounting & What Is Included

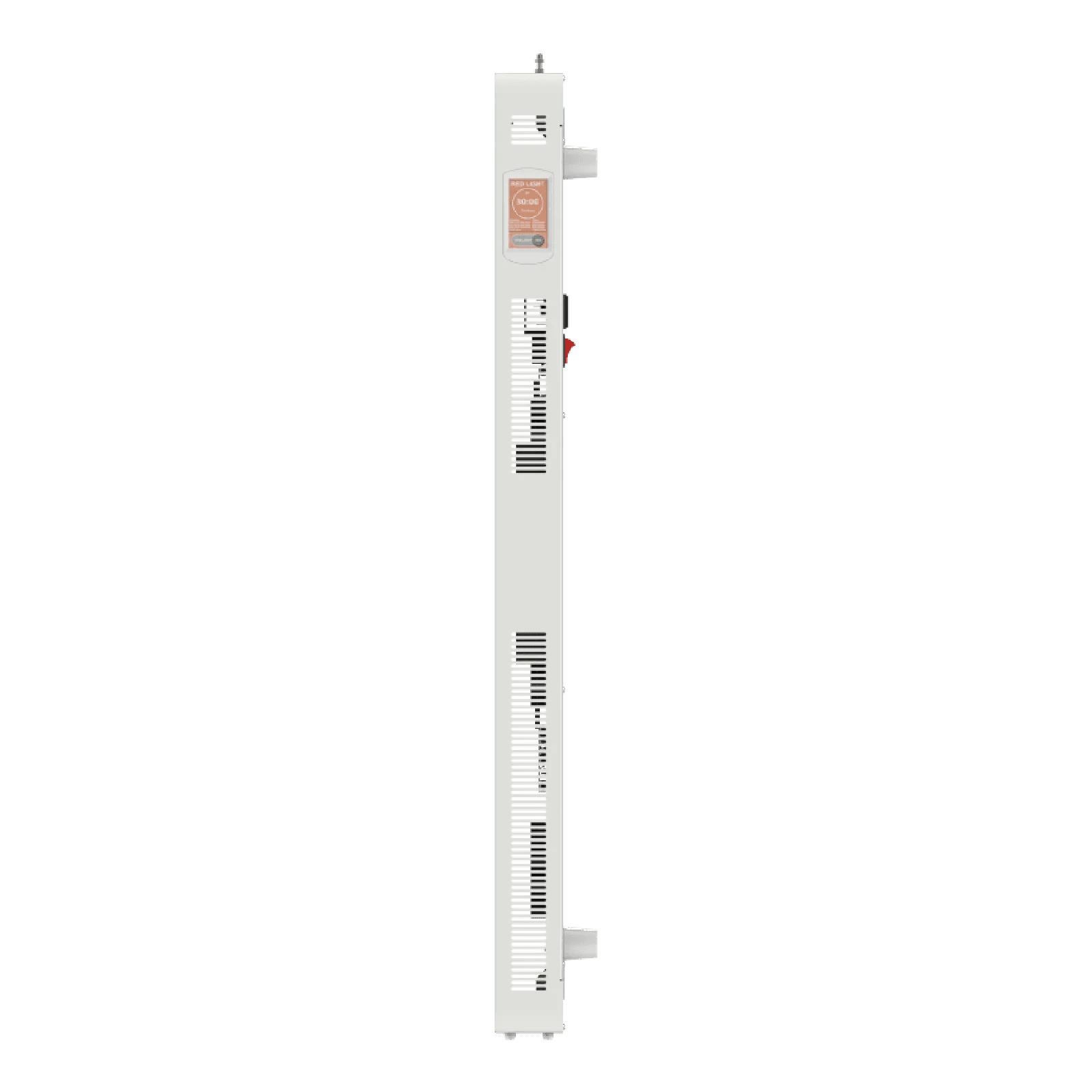

- Panel dimensions: 91 × 30 × 6.6 cm (35.8 × 11.8 × 2.6 in)
- Weight: 10.8 kg (23.8 lb)
- Maximum coverage: 119 × 61 cm (46.9 × 24 in), at 90 cm
- Mounting: Door hook and hanging hardware
What is included, per REDDOT’s accessory list for this model:
- LED therapy light (panel)
- Eye protection
- Door hook
- Remote control
- Hanging hardware
- Power cable
- Patch cable
- Cable assembly and snap links
REDDOT also supplies threaded posts for the RDPRO series that allow two panels to be connected vertically, so a setup can be extended later without replacing the first unit.
We list only what appears on REDDOT’s accessory page for this model. If an item is not listed above, assume it is not included and ask us before ordering.
Warranty, EMF & Manufacturer Information
- Manufacturer warranty: 3 years
- Brand: REDDOT LED
- Model: RDPRO1500-FS7
- GTIN / UPC: none assigned by the manufacturer
So we do not restate it as a claim. You will not see this panel described on our site as zero-EMF, near-zero-EMF, ultra-low-EMF or low-EMF, because a single unquantified word in a manual does not support any of those. We have reported what the manufacturer states, attributed to the manufacturer, and left it there. If a measured EMF figure matters to your decision, tell us and we will request one from REDDOT in writing before you order.
On identifiers. REDDOT has assigned no GTIN or UPC to the FS7 panels. We have not created one, and we do not repurpose a warranty or date code as a retail barcode. The manufacturer model number above is the identifier to quote when cross-referencing REDDOT documentation.
Warranty terms, coverage and claim procedures are set by the manufacturer and may vary by component. Review REDDOT’s current warranty documentation for the terms that apply to your panel, and keep your purchase documentation for future support reference.
Verified Specifications
| Brand | REDDOT LED |
|---|---|
| Model | RDPRO1500-FS7 |
| Product Type | LED light therapy panel |
| Wavelengths | 7 channels — 480, 630, 660, 810, 830, 850 and 1060 nm |
| Channel Control | Each wavelength individually dimmable, 0–100% |
| Irradiance | 131 mW/cm² at 15 cm, manufacturer-measured with all seven channels at 100% |
| LED Array | 300 dual-chip LEDs |
| LED Lifespan | 50,000 hours (manufacturer-rated) |
| Beam Angle | 30 degrees |
| Coverage Classification | Half body |
| Maximum Coverage | 119 × 61 cm (46.9 × 24 in) at 90 cm |
| Pulsing | 0–9999 Hz, near-infrared channels only (810, 830, 850 and 1060 nm) |
| Timer | 1–30 minutes, adjustable |
| Controls | On-board touchscreen, wireless remote, RLT System app (iOS and Android) |
| Power Consumption | 467 W |
| Current @ 220 V | 2.15 A |
| Cooling | Four cooling fans |
| Dimensions | 91 × 30 × 6.6 cm (35.8 × 11.8 × 2.6 in) |
| Weight | 10.8 kg (23.8 lb) |
| Mounting | Door hook and hanging hardware |
| Low-Power Mode | Switch reduces light output to 75% |
| EMF | Manufacturer states “Negligible”; no measured value published |
| Warranty | 3 years (manufacturer) |
| GTIN / UPC | None assigned by the manufacturer |
Compare the REDDOT RDPRO FS7 Range
| Model | LEDs | Irradiance @ 15 cm | Max coverage | Power | Coverage class |
|---|---|---|---|---|---|
| RDPRO300-FS7 | 60 | 118 mW/cm² | 71 × 61 cm | 99 W | Targeted |
| RDPRO750-FS7 | 150 | 114 mW/cm² | 86 × 98 cm | 219 W | Targeted |
| RDPRO1500-FS7 (this page) | 300 | 131 mW/cm² | 119 × 61 cm | 467 W | Half body |
| RDPRO3000-FS7 | 600 | 115 mW/cm² | 198 × 71 cm | 1050 W | Full body |
| RDPRO6000-FS7 | 1200 | 124 mW/cm² | 221 × 119 cm | 1880 W | Full body |
All five panels emit the same seven wavelengths and carry the same control set, timer range, beam angle, LED lifespan rating and 3-year warranty. The choice between them is coverage, output at working distance, electrical draw and how the panel mounts. Irradiance at 15 cm sits in a narrow band across the range — it is the coverage column, and how well each panel holds output as you step back, that actually separates them.
Read the Red Light & Near-Infrared Buyer’s Guide, browse the full REDDOT LED range and all red light panels, or ask us which panel suits your room and intended use.
Common Questions
What wavelengths does this panel emit?
Seven, individually controlled: 480 nm (blue), 630 and 660 nm (red), and 810, 830, 850 and 1060 nm (near-infrared). Each channel is dimmable from 0 to 100%, so the panel can be run as red-only, near-infrared-only, or any combination.
What does “131 mW/cm² at 15 cm” actually mean?
It is the irradiance REDDOT measures at 15 cm from the panel with all seven channels running at 100%. Distance and channel state both change the figure — at 90 cm this panel measures 51 mW/cm². Figures quoted at other distances, or with only some channels active, are not comparable.
Does it work with an app?
Yes. REDDOT has confirmed in writing that all five FS7 panels support the RLT System app, available on the App Store and Google Play. The panel also has an on-board touchscreen and ships with a wireless remote.
Do all seven wavelengths pulse?
No. Pulsing from 0 to 9999 Hz applies to the four near-infrared channels only — 810, 830, 850 and 1060 nm. The blue and red channels are dimmable but are not pulsed.
Does this panel cover the whole body?
REDDOT classifies it as a half-body panel, with a maximum published coverage of 119 × 61 cm. Most users reposition once during a session. The RDPRO3000-FS7 (150 cm) and RDPRO6000-FS7 (180 cm) are the models REDDOT designates full body.
What current does it draw at 120 V?
We are not publishing that figure. REDDOT’s manual states 467 W power consumption and 4.25 A at 120 V for this model, and those two values do not reconcile. Rather than publish a derived or a doubtful number, we have left the row off the specification table and are seeking clarification from REDDOT. The 220 V figure REDDOT states is 2.15 A. Have a qualified electrician confirm your intended supply.
What does REDDOT publish about EMF?
One word. REDDOT’s manual lists EMF emission as “Negligible” with no measured value, test distance or standard published. That is the whole of what the manufacturer publishes. We report the manufacturer’s wording and attribute it, and we do not convert it into a low-EMF, near-zero-EMF or zero-EMF claim. If a measured figure matters to you, ask us and we will request one from REDDOT in writing.
Does it have a barcode or UPC?
No. REDDOT has assigned no GTIN or UPC to the FS7 panels, and we have not created one. Quote the model number RDPRO1500-FS7 when cross-referencing REDDOT documentation.
What warranty applies?
Three years from the manufacturer. Coverage and claim procedures are set by REDDOT and may vary by component. Review REDDOT’s current warranty documentation for the terms that apply to your panel.
How is this different from the other FS7 panels?
Every FS7 panel shares the same seven wavelengths, control set, 1–30 minute timer, 30-degree beam angle, 50,000-hour LED rating and 3-year warranty. This one has 300 dual-chip LEDs, draws 467 W and covers up to 119 × 61 cm. The comparison table above sets all five side by side.
