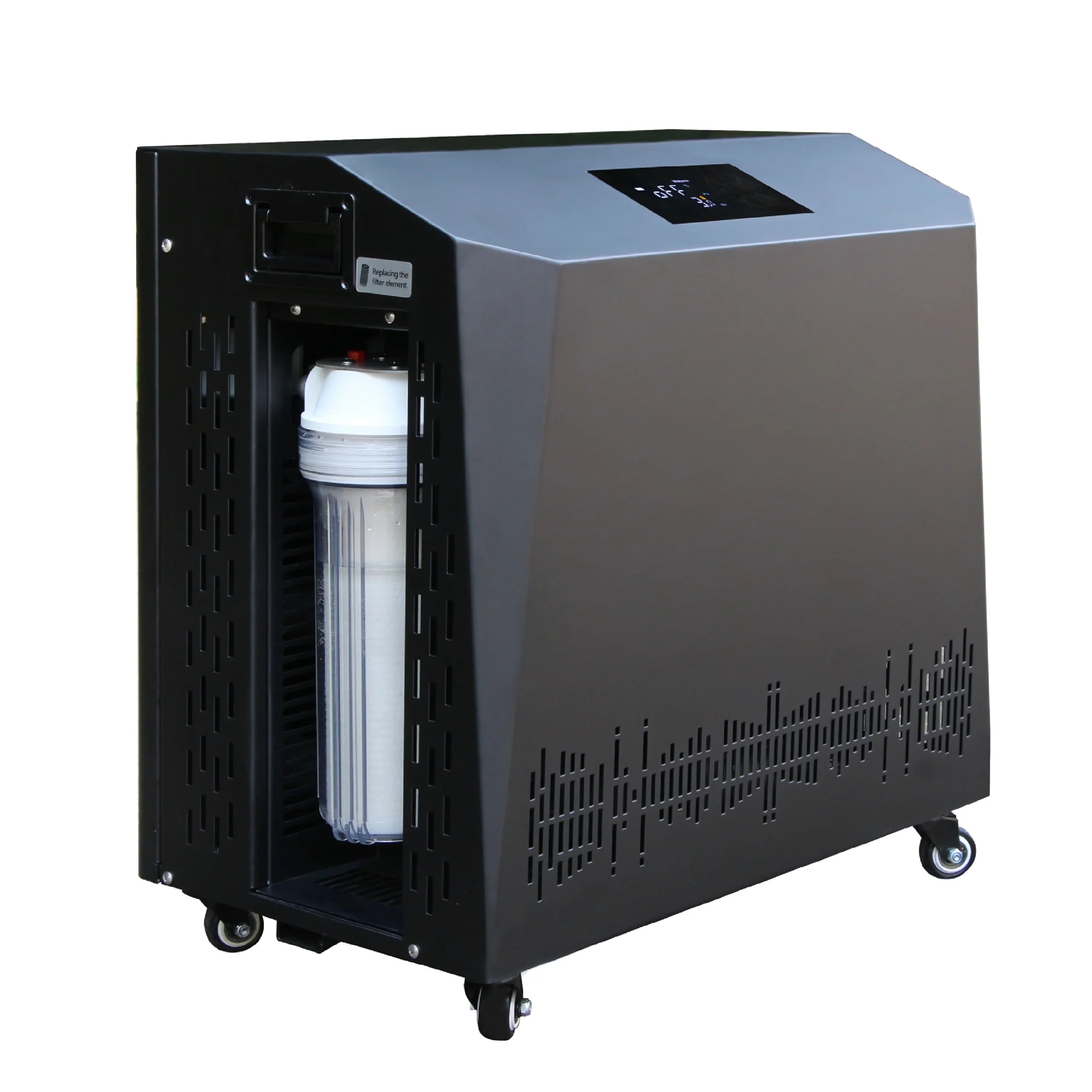

Dynamic Standard 0.8 HP Cooling & Heating Chiller System with WiFi

This Standard Edition unit provides high-efficiency temperature control for water volumes up to 135 gallons:

• Dual-Action Range: Maintains water temperatures from a low of 37°F to a maximum of 107°F.
• Efficient Compressor: The 0.8 HP rotary motor delivers cooling at an approximate rate of 1–3°F every 20 minutes (depending on environmental conditions and total water volume).
• Integrated Circulation: Features a built-in self-priming water pump to ensure stable and reliable flow through the filtration and heat exchange circuits.
• Use Environment: Rated for indoor use and covered outdoor installations on a flat, level surface.

Ensure a clear and sanitized immersion environment with a self-contained water maintenance system:

• Automated Ozone System: The built-in natural ozone generator provides continuous water purification, helping to neutralize organic contaminants and odors.
• Two-Stage Filtration: Utilizes 20-micron replaceable filters to capture fine debris and maintain peak water clarity.
• Maintenance Kit: Includes a pre-installed filter, an additional replacement filter, and a dedicated filter housing wrench for simplified upkeep.

• WiFi App Integration: Fully enabled for remote temperature management, automated scheduling, and performance monitoring from your smartphone.

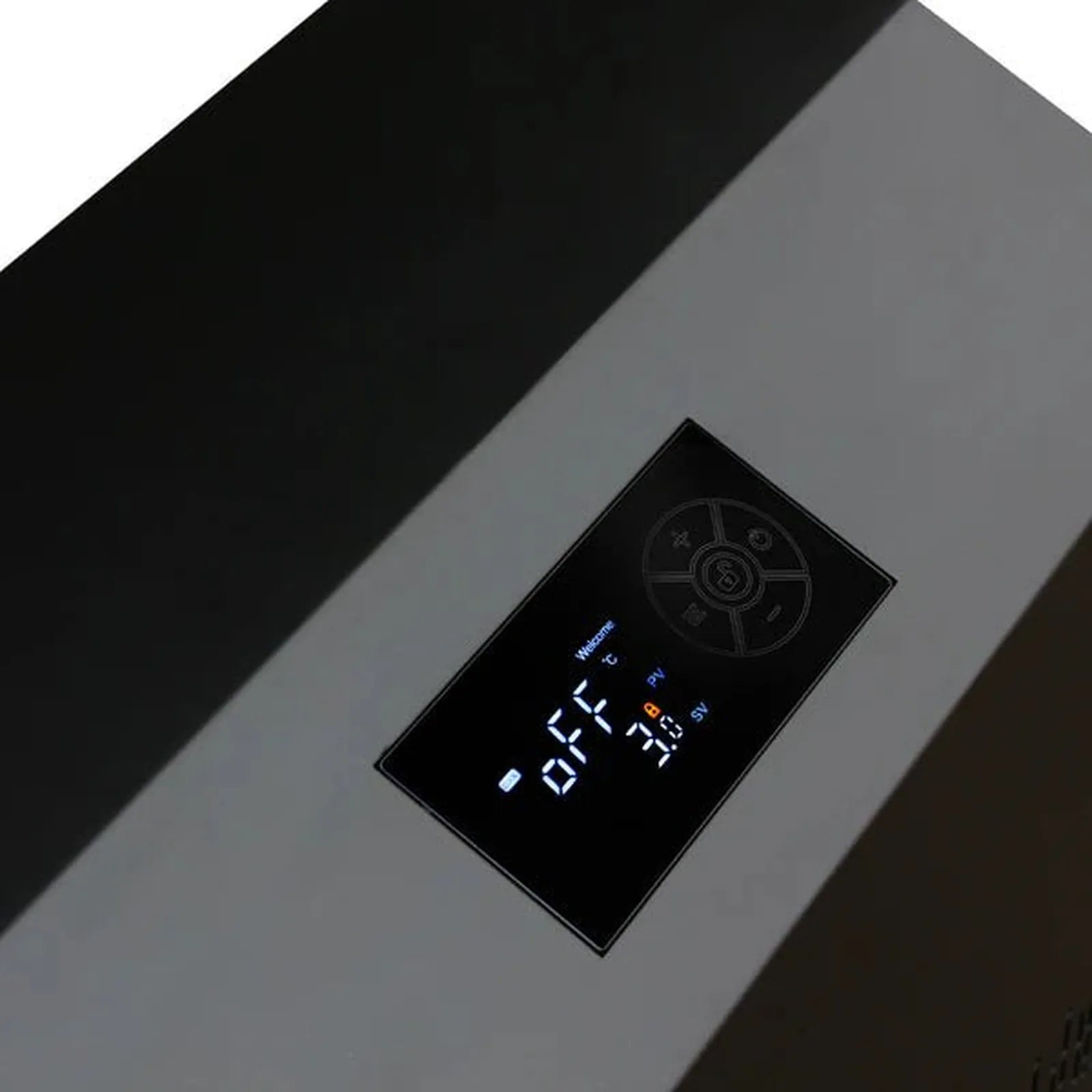

• Digital Interface: Features a splash-proof digital touch screen on the unit for rapid manual adjustments and real-time status updates.
• Plug-and-Play Setup: Includes a pair of quick-connect hoses designed for seamless integration with Dynamic Cold Therapy tubs.

• Model: DCT-QG-10-A-1.5.
• Electrical: Standard 110V power outlet with built-in GFCI safety protection.
• Unit Dimensions: 22″ W x 16″ D x 23″ H.
• Unit Weight: 80 lbs.
• Shipping Weight: 95 lbs (Ships in a protective crate/box).

Electrical Safety: This unit requires a grounded 110V outlet. Always use the built-in GFCI-protected plug. Use of extension cords is strictly prohibited to prevent voltage drops and mechanical failure.

Ventilation Requirements: To prevent compressor overheating, maintain a minimum of 12 inches of clearance on all sides of the unit for proper airflow and heat dissipation.

Operational Note: Never power on the chiller without water flowing through the lines. Ensure the pump is fully primed and air has been bled from the hoses to prevent damage to internal seals.

Warranty: Includes a 1-year manufacturer’s warranty covering defects in materials and workmanship under normal residential or commercial use.

Support: Lifetime technical product support provided by Dynamic Cold Therapy.

Medical Disclaimer: This product is not a medical device. Consult a physician before starting any extreme temperature immersion routine, especially if you have cardiovascular or respiratory conditions.
