Cryomed Mini Nitrogen Cryosauna — Compact, No-Assembly, Low Nitrogen Use
Choose options

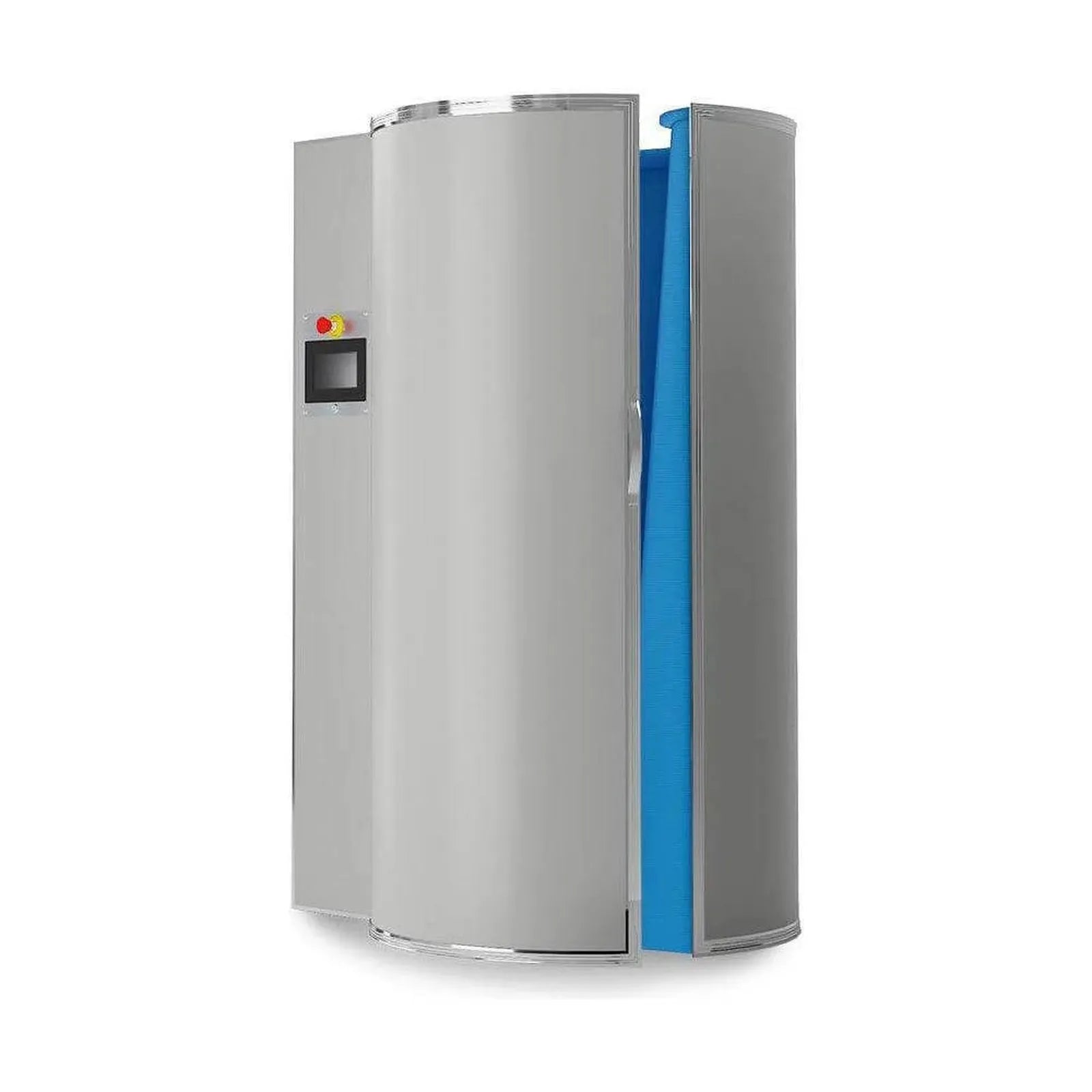

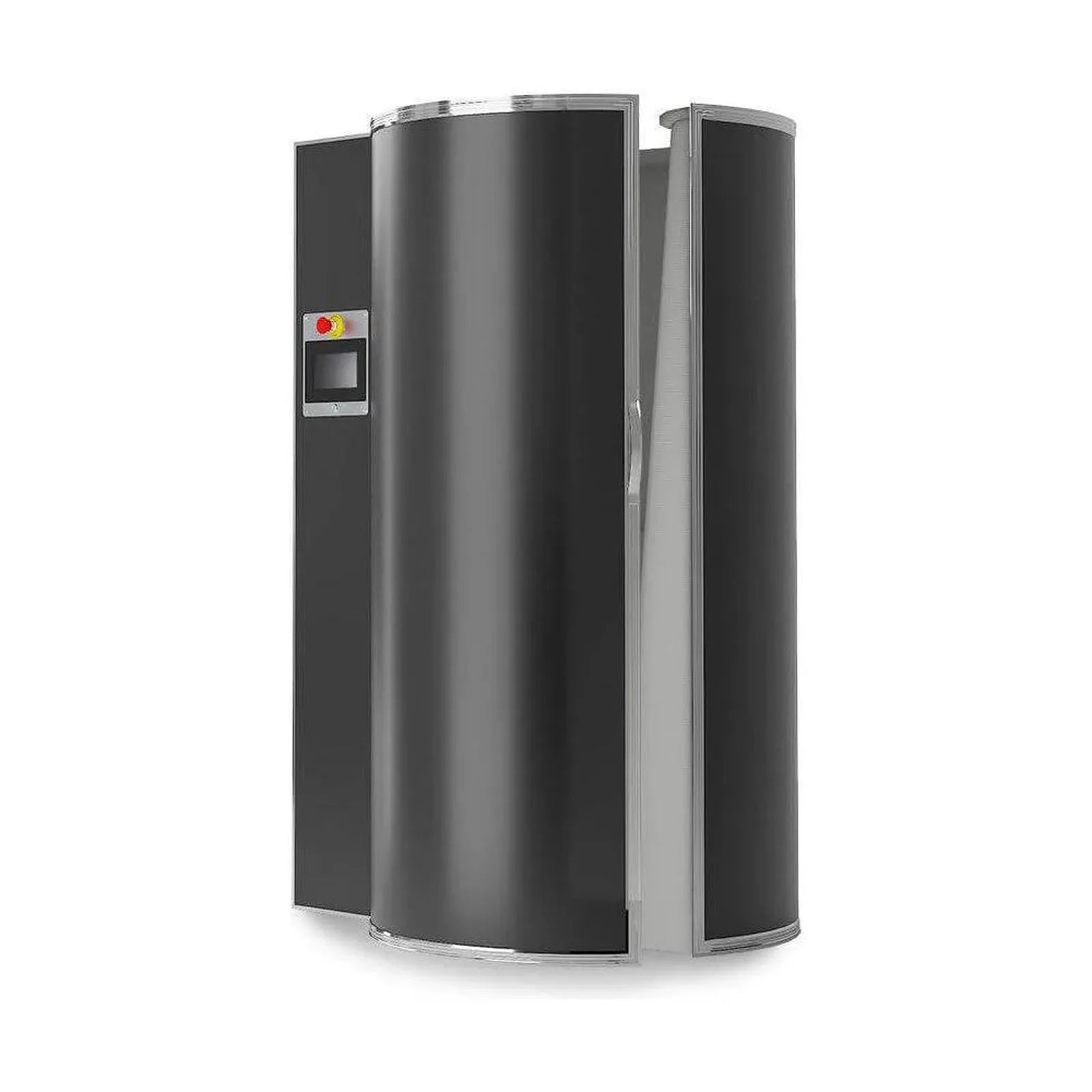

Cryomed Mini – Compact Open-Top Cryotherapy Chamber
Home & boutique-studio cryotherapy with professional safety, Wi-Fi reporting, and low nitrogen use.
Overview
The Cryomed Mini delivers full-body cryotherapy in a compact footprint built for homes, boutique studios, and low-volume clinics. It arrives largely assembled on a single pallet, connects quickly, and uses ~2.5 L of liquid nitrogen per 3-minute session for efficient operation. One-click Wi-Fi enables remote diagnostics and daily session reports.
Key Features
- Compact & efficient: ~2.5 L LN₂ per standard session
- User-friendly control: 7" touchscreen with simple presets
- Safety suite: open-door sensor, emergency stop, nitrogen level & overflow sensors, pressure release
- Electric elevator: quick height adjustment for precise exposure
- Connectivity: one-click Wi-Fi for remote updates & daily email reports
- Low maintenance: after ~10–15 sessions, run a 1-hour drying/re-heat cycle
Specifications
- Footprint (approx): 115 × 198 cm (45.3" × 74.0")
- Nitrogen use: ~2.5 L per 3-min session
- Throughput: up to ~20 sessions/day (ideal for home & light commercial)
- Cool-down between users: ~5 minutes
- Controls: 7" TFT touchscreen
- Sensing: temperature, nitrogen level/overflow, door/open, pressure relief
- Connectivity: Wi-Fi / LAN remote diagnostics & software updates
Room Setup & Ventilation
- Space: ~9 m² (3 m × 3 m / 9.8' × 9.8'), ceiling ≥ 2.5 m (8.2')
- Floor: solid, level surface (concrete/tile preferred)
- Access: door width ≥ 26.5" for standard S-size cabin (wider for larger cabins)
- Ventilation: dedicated exhaust (≈4" port) to exterior or suitable building system; active supply & return air recommended
- Safety: oxygen sensors recommended per local code/best practice
Included Items
- Cryomed Mini chamber (open-top)
- Electric elevator & control system
- Cabin cover & collar
- Gloves & 2 pairs of insulated footwear
- Elevator pad
- Active reporting (daily email summaries)
- Remote maintenance & software updates
Usage & Capacity
- Ideal daily volume: ~20–25 sessions
- Drying/re-heat: run a ~1-hour cycle after 10–15 consecutive sessions
- Session length: typical 2–3 minutes (per protocol)
Warranty & Support
3-year or 6,000-session warranty (whichever comes first). Includes remote diagnostics, software updates, and virtual onboarding/training.
Shipping & Lead Time
Ships largely assembled on one pallet. Standard colors typically ship in 2–4 weeks; optional colors may extend lead time. You will receive tracking details once the order ships.
