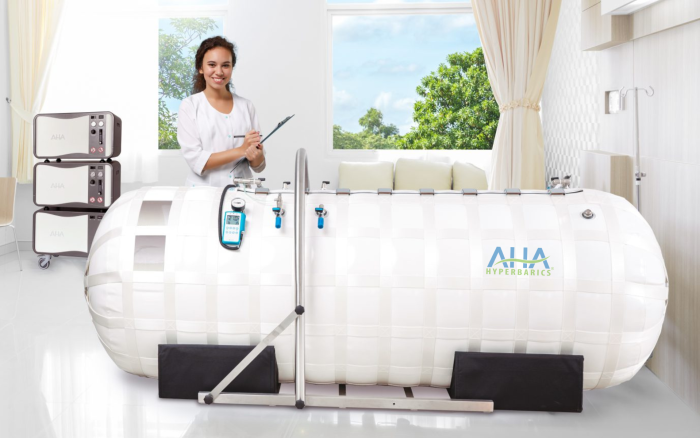

AHA Flex V2 Medical Hyperbaric Chamber
The AHA Flex V2 Hyperbaric Chamber is a medical-grade, inflatable hyperbaric oxygen system engineered by AHA Hyperbaric Medical System (Austria / EU). Designed for professional HBOT environments, the Flex V2 combines high operating pressure, lightweight construction, and full oxygen compatibility within a rigorously certified European medical system.
Why Professionals Choose AHA
- Medical-grade HBOT system manufactured under EU regulations
- 1.6–2.0 ATA operating pressure for advanced hyperbaric protocols
- Lightweight inflatable chamber — only 35 kg
- 100% oxygen compatible with certified oxygen delivery systems
- Original EU manufacturer — not a private-label chamber
Medical Certifications & Manufacturing Standards
AHA Hyperbaric Medical Systems are manufactured in accordance with the strictest European medical device standards.
- Certified by TÜV SÜD (Notified Body 0123)
- Manufactured under EN ISO 13485:2016 quality management system
- Medical Device Class IIb (EU MDD 93/42/EEC)
- Safety Class I according to EN 60601-1
These certifications ensure safety, quality, and consistency for professional HBOT environments.
HBOT System Overview
The AHA Hyperbaric Medical System is a fully integrated solution consisting of:
- AHA Flex V2 Hyperbaric Chamber
- AHA Oxygen Delivery Systems
- AHA Treatment Essentials (certified accessories)
When combined, these components form a turn-key HBOT platform designed for safety, efficiency, and customizable treatment protocols.
Patented Chamber Construction

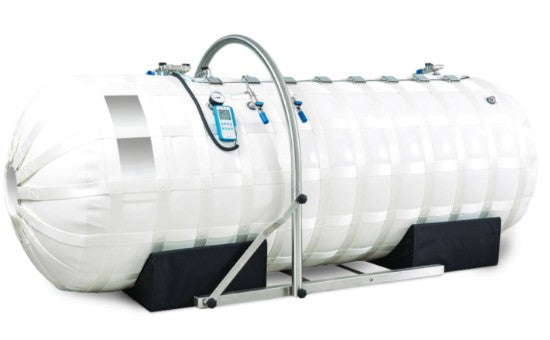

The AHA Flex V2 features a patented three-layer urethane chamber design engineered for strength, durability, and oxygen safety.
- Inner chamber seals pressure environment
- Outer chamber and structured grid maintain shape and integrity
- Designed for pressures up to 3.0 ATA (300 kPa)
- High-frequency computer-guided welding (no gluing)
- All materials are oxygen-proof and biocompatible
Comfort, Safety & Interior Design
- 6 viewing windows made from 6 mm high-strength acrylic
- Internal aluminum support frame prevents collapse when unpressurized
- Stainless steel handrail for safe entry and exit
- Custom non-static, non-flammable mattress
- Stability system for operation and emergency positioning

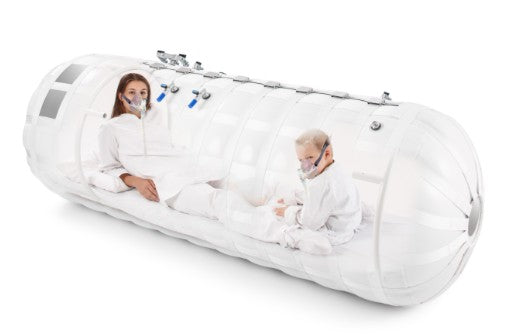

Although registered as a mono-place chamber, interior dimensions allow a parent to accompany a child during treatment if required.
Ventilation, Oxygen & Safety Systems
- Oil-free AHA Air 22 compressor with 170 L/min airflow
- Advanced air filtration removes dust, allergens, and particles
- Oxygen analyzer with alarm if chamber oxygen exceeds 23.5%
- Certified over-board oxygen exhaust system
- Antistatic medical-grade steel hose connections
- UPS (Uninterruptible Power Supply) — minimum 20 minutes backup
Technical Specifications
Core Specs
- Model: AHA Flex V2
- Operating Pressure: 1.6–2.0 ATA
- Capacity: Mono-place
- Weight: 35 kg
Dimensions
- Length: 250 cm
- Diameter: 85 cm
- Volume: 1.42 m³
- Windows: 6
Environment
- Temperature: 2°C – 35°C
- Humidity: 30–75%
- Altitude: < 3000 m
- Operating Area: Low-dust environment
Professional Use Notice
This product is a medical-grade hyperbaric system intended for use by trained professionals or under professional supervision. Usage protocols, training, and certifications are available through AHA Hyperbaric Medical System.
Recommended & Required Accessories
The AHA Flex V2 Hyperbaric Chamber is part of a professional medical system. Certain accessories are required for safe operation, while others are optional enhancements for comfort, hygiene, and workflow efficiency.
Required / Strongly Recommended for Operation
- AHA C22 Ventilating System — required for proper chamber ventilation
- Ventilation Hose Set (7.5 m + 1 m with adapter)
- Non-Rebreathing Oxygen Masks (Adult / Pediatric)
- Blue Spacer for chamber airing
Comfort, Safety & Clinical Workflow Enhancements
- Stainless Steel Handrail — recommended for safe entry and exit
- Medical Cotton Clothing Sets (various sizes)
- Sheets, Blankets & Pillow Sets
- Cleaning & Disinfectant Products (AzoMax)
- Ozone Generator for facility sanitation
- Bluetooth Headset for patient comfort during sessions
Our team will review your intended use case and help configure the appropriate accessories for your facility.
