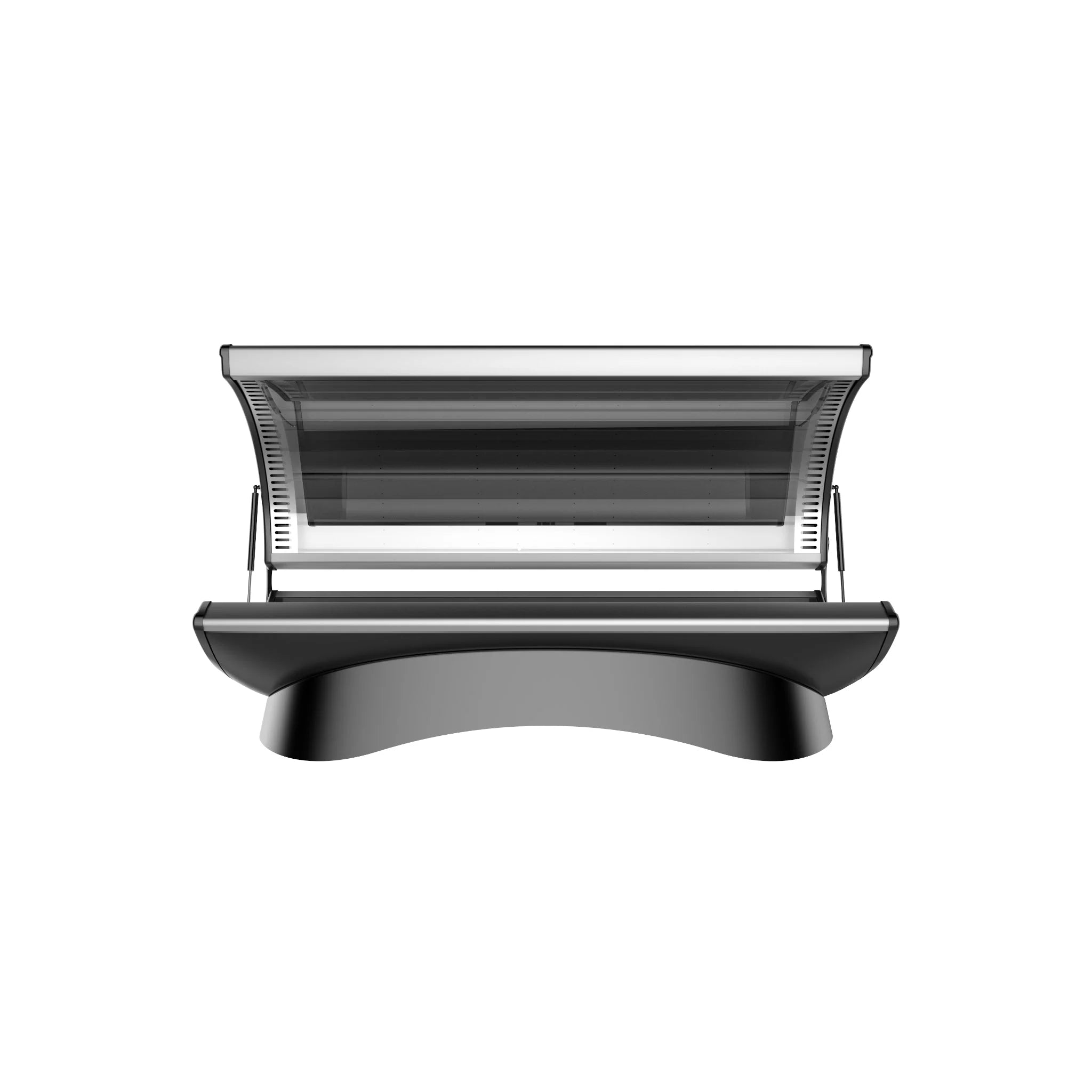

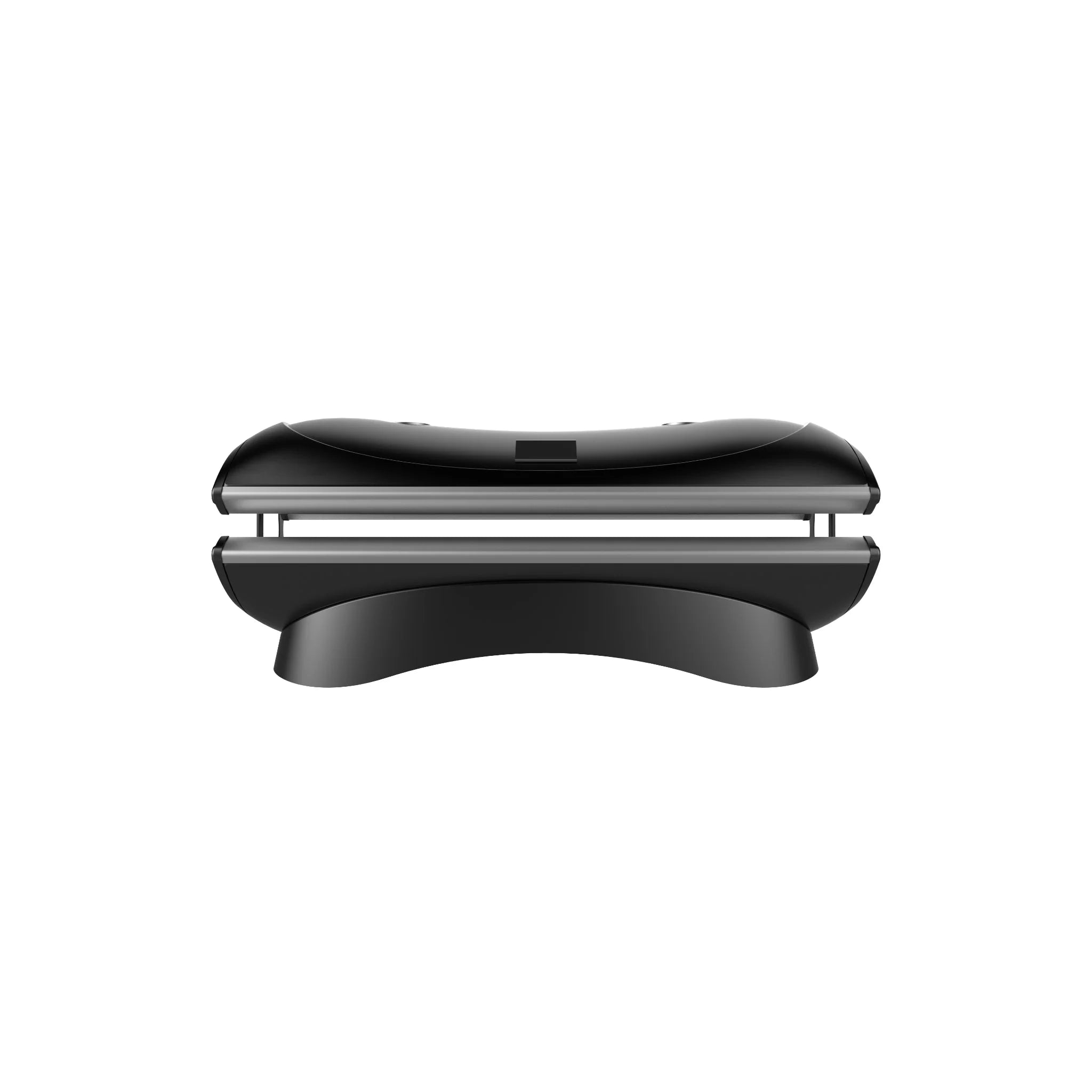

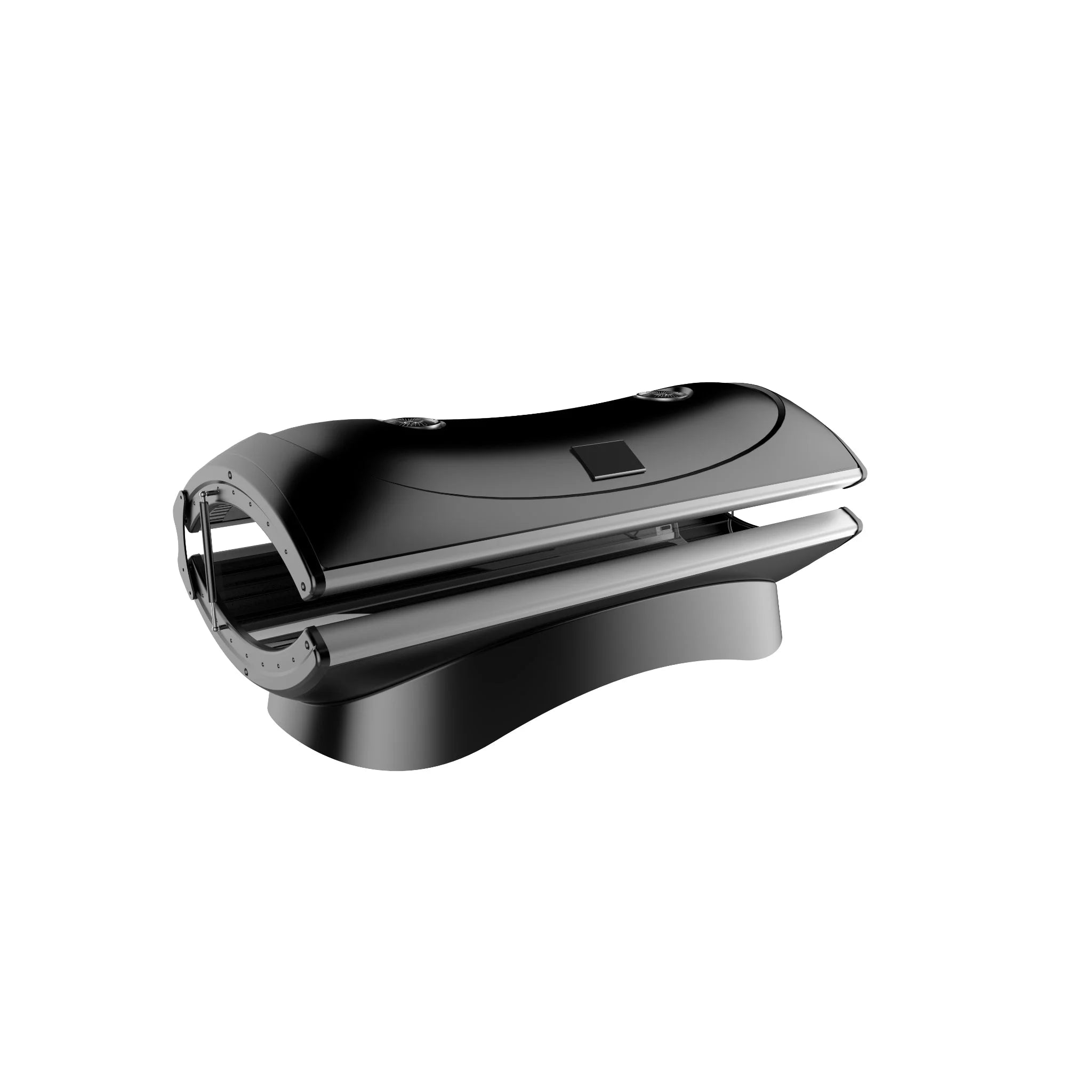

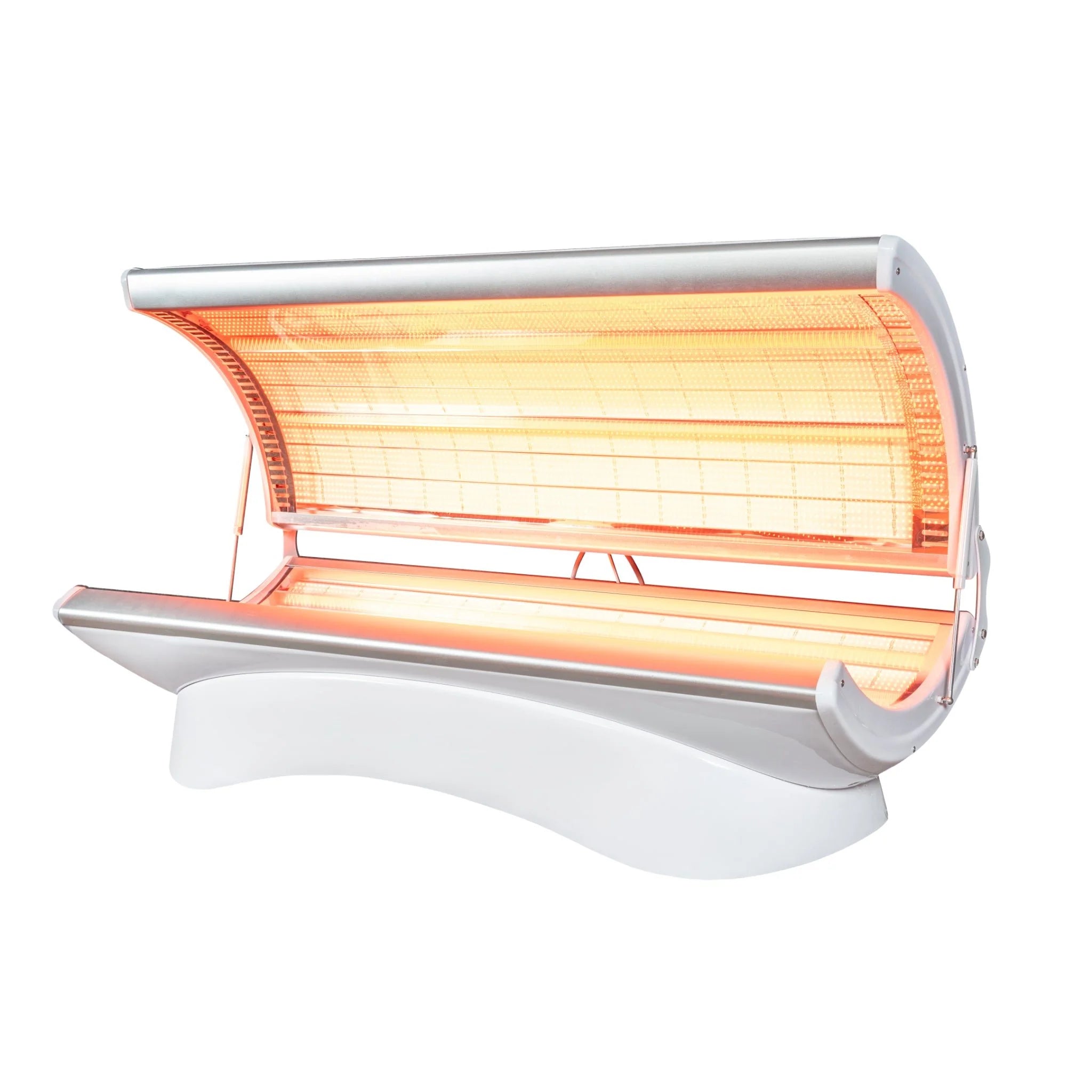

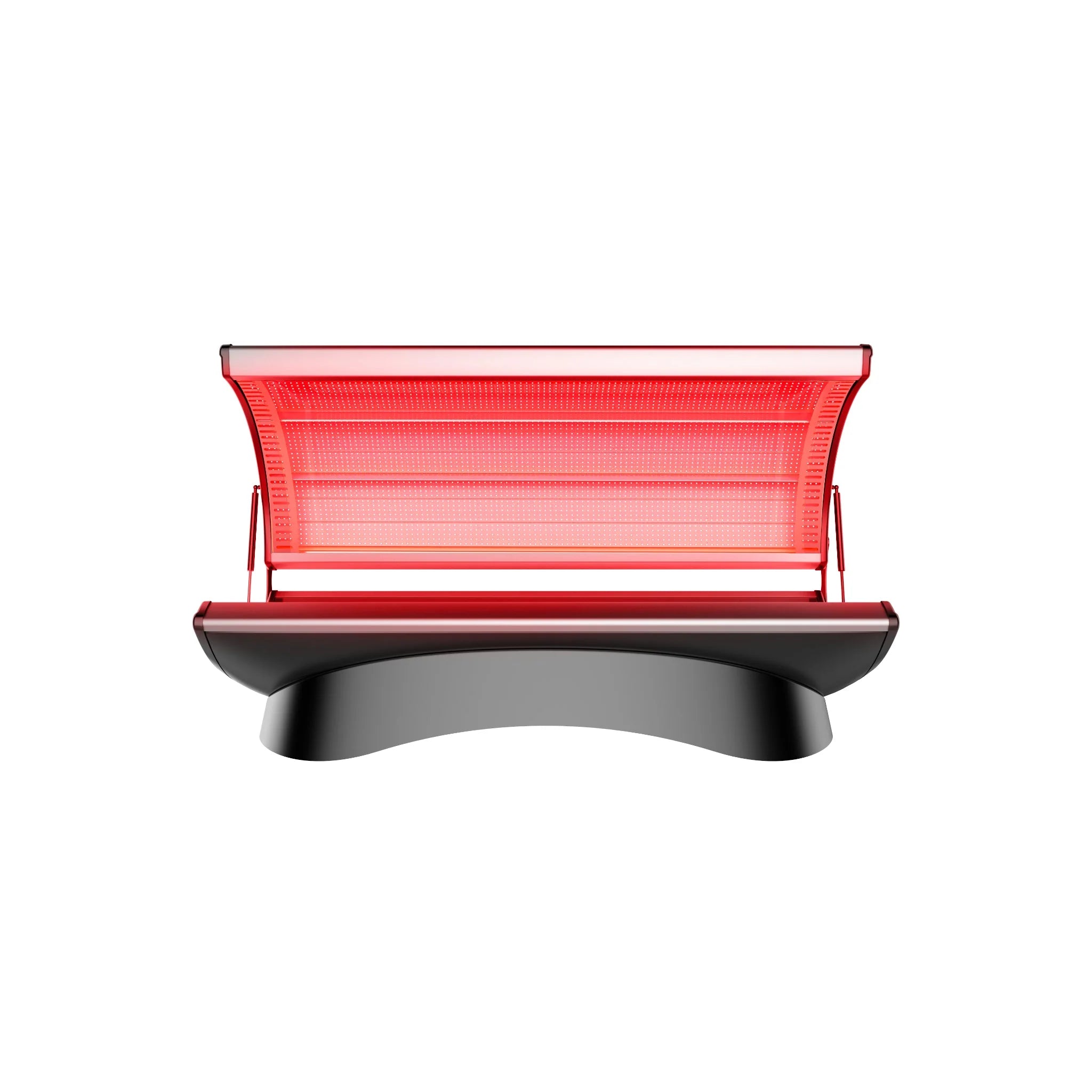

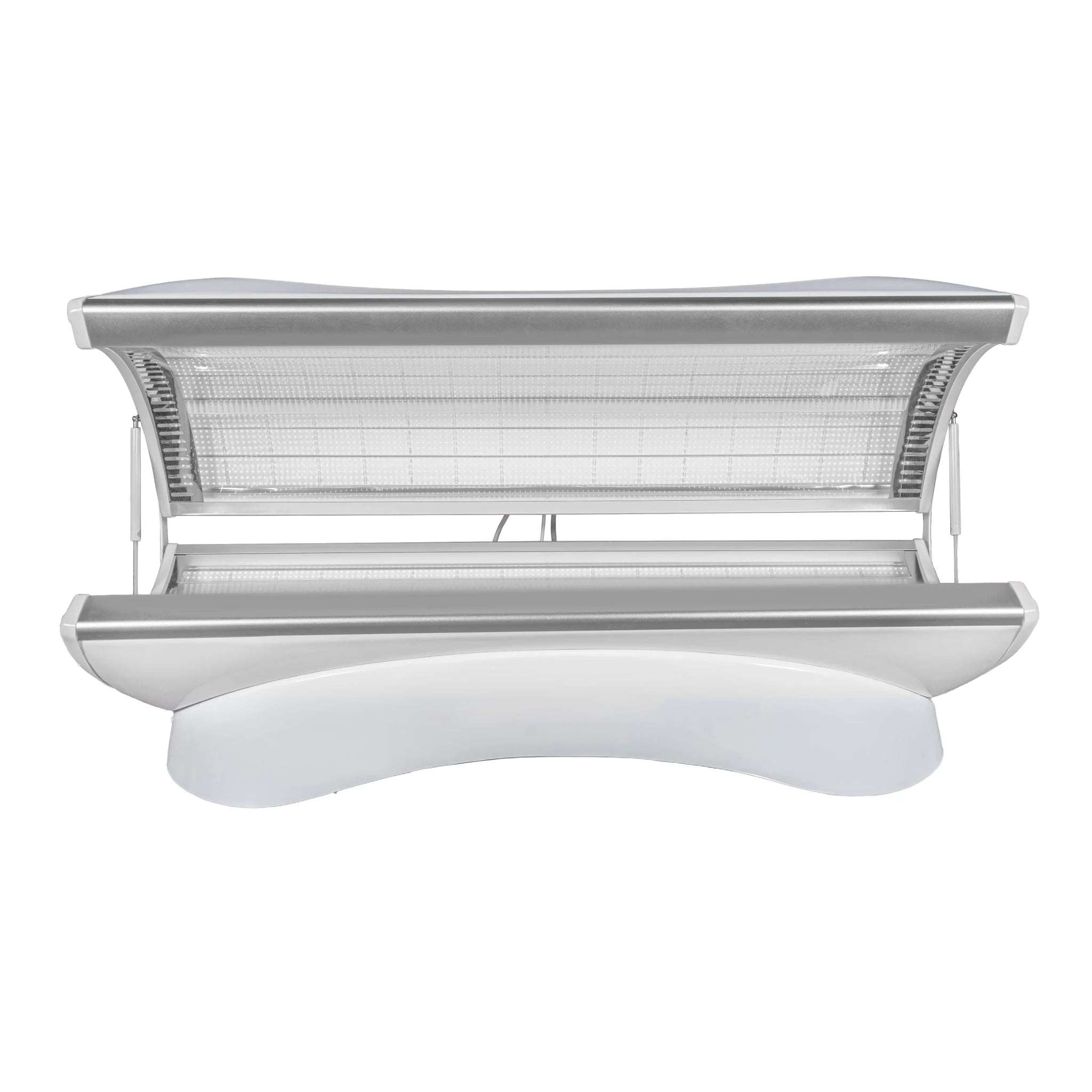

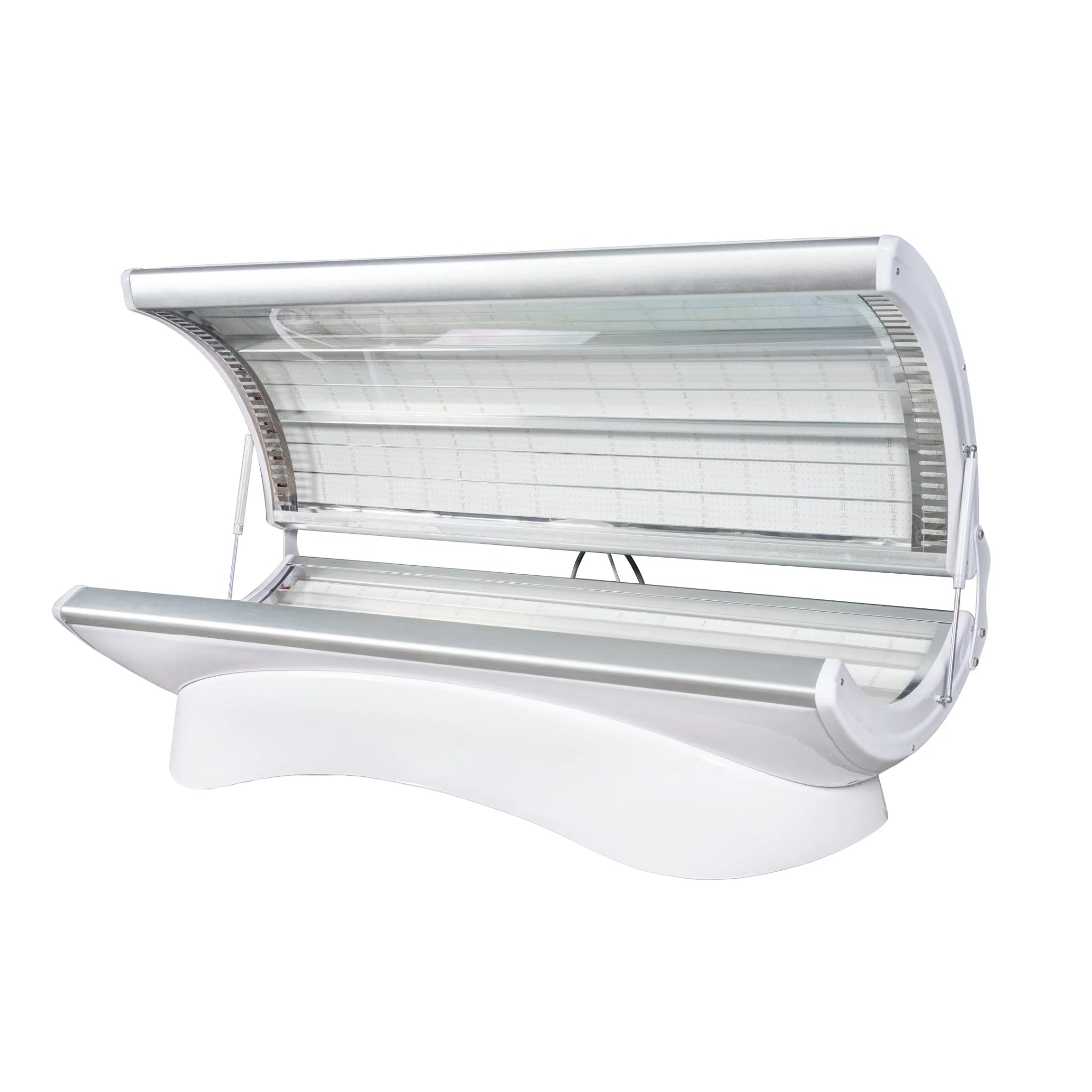

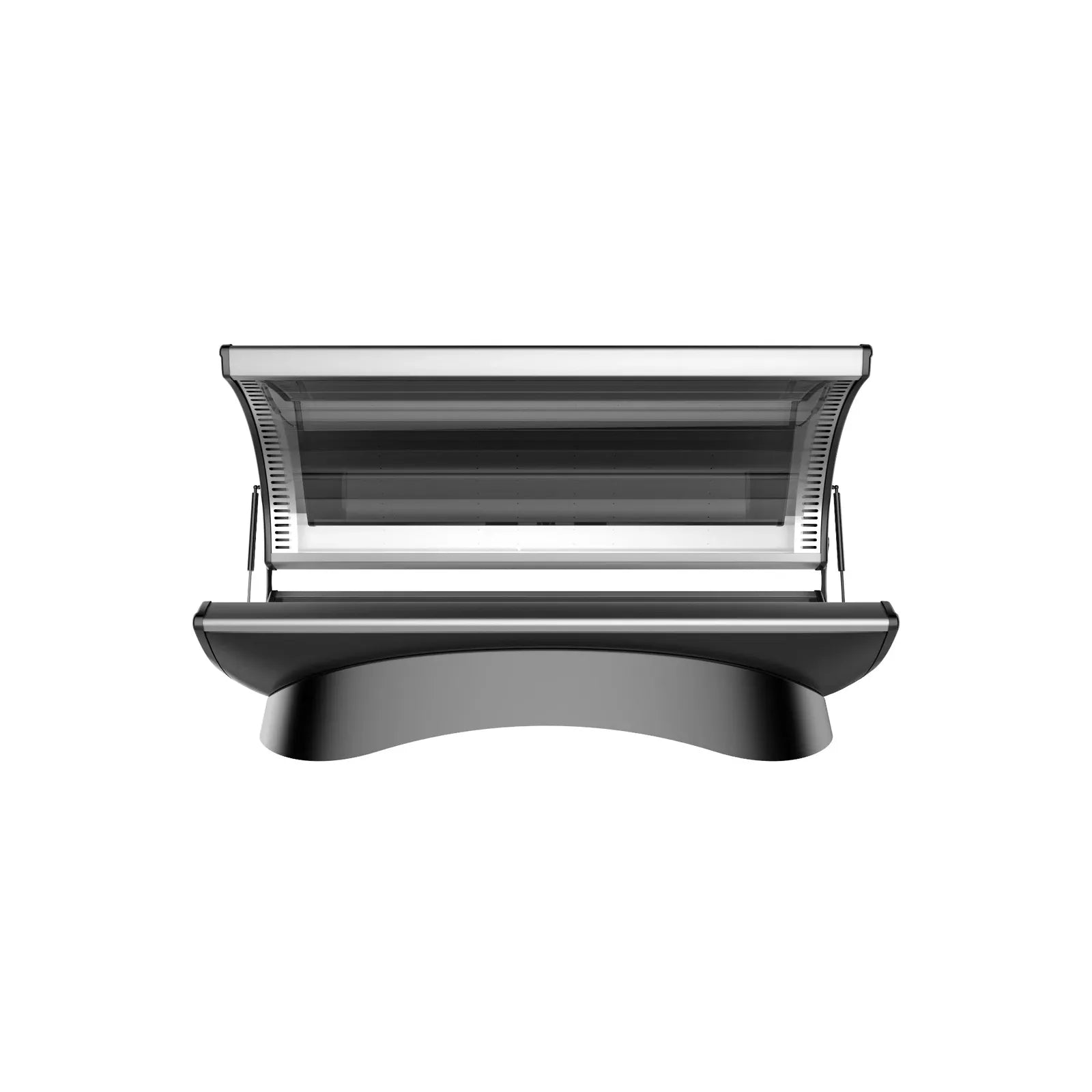

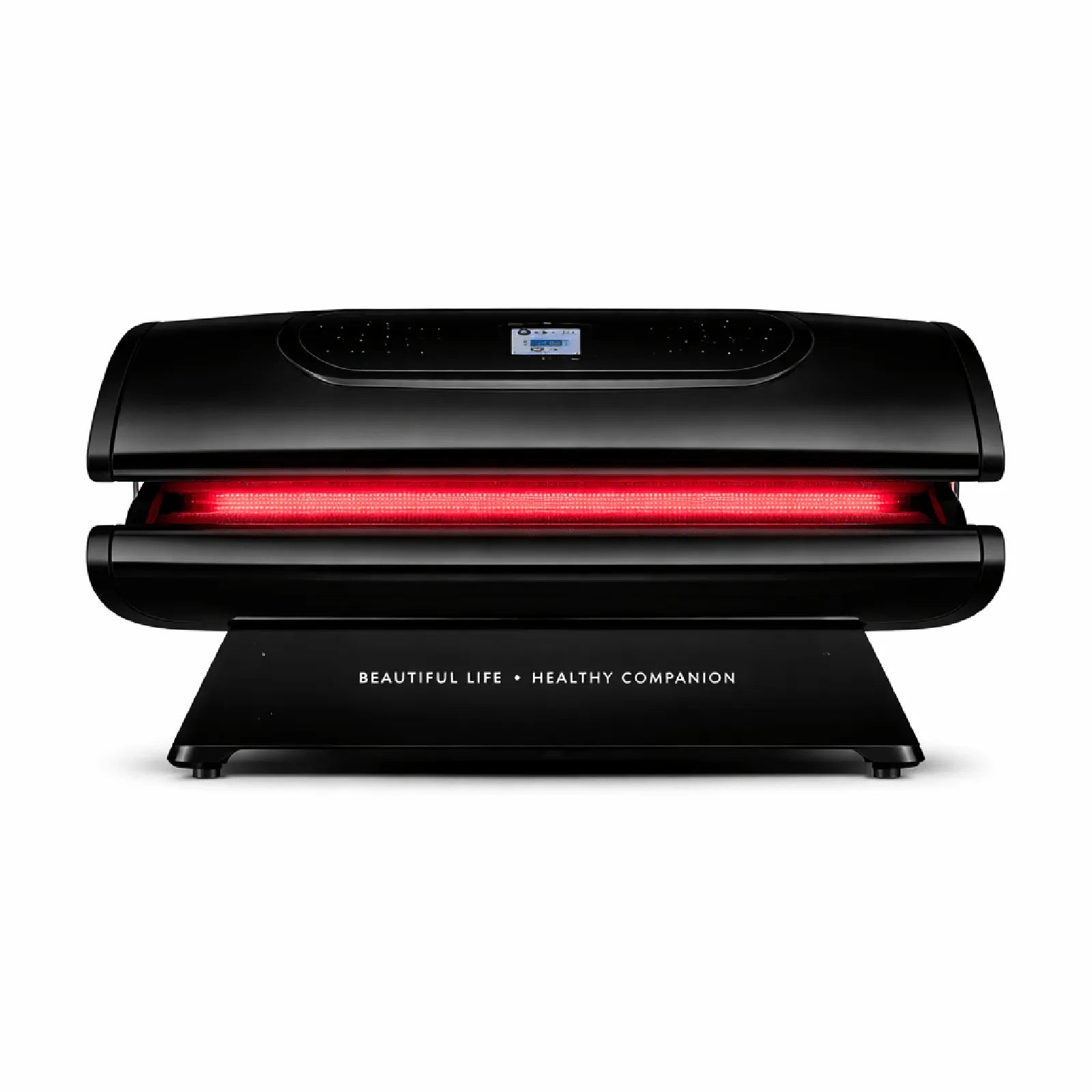

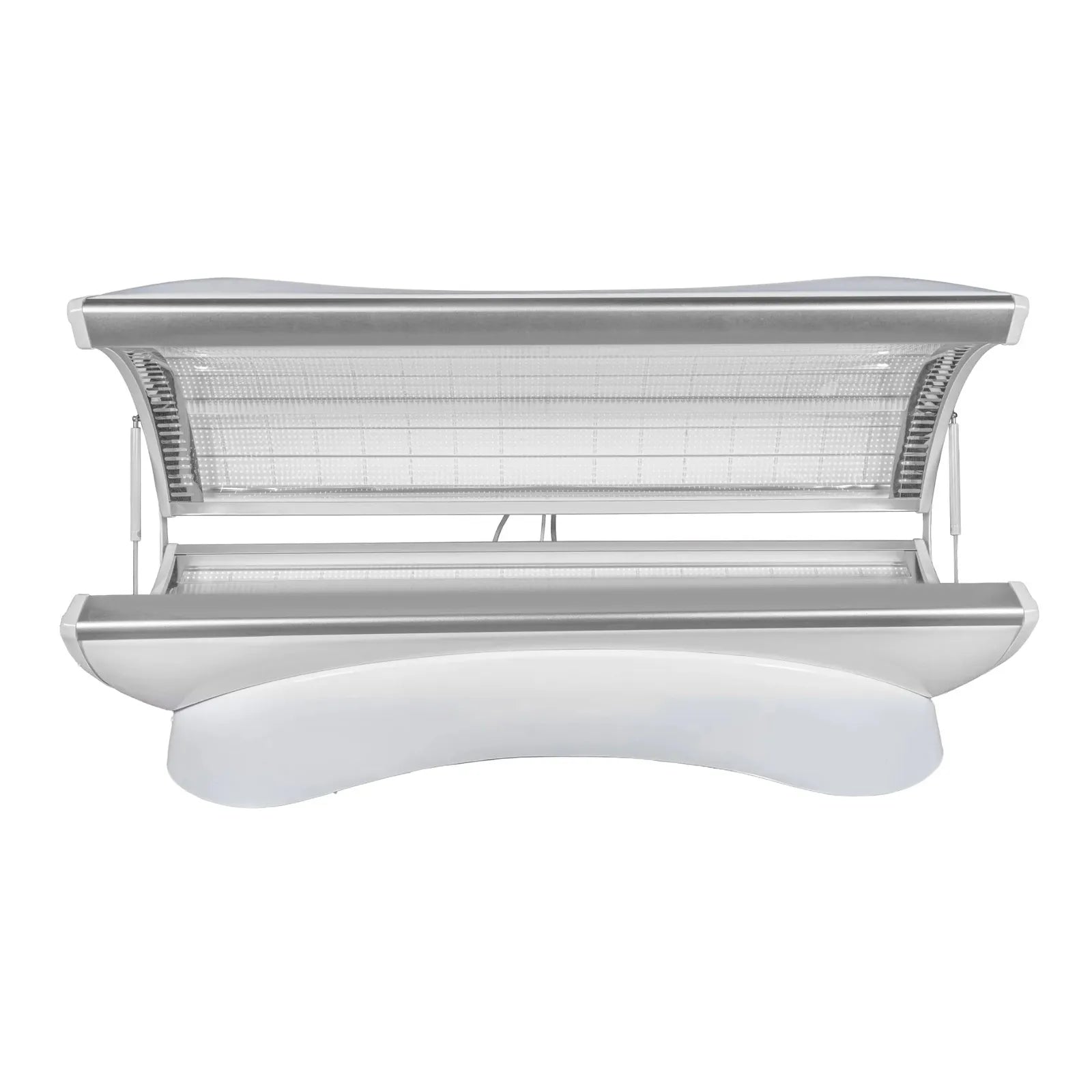

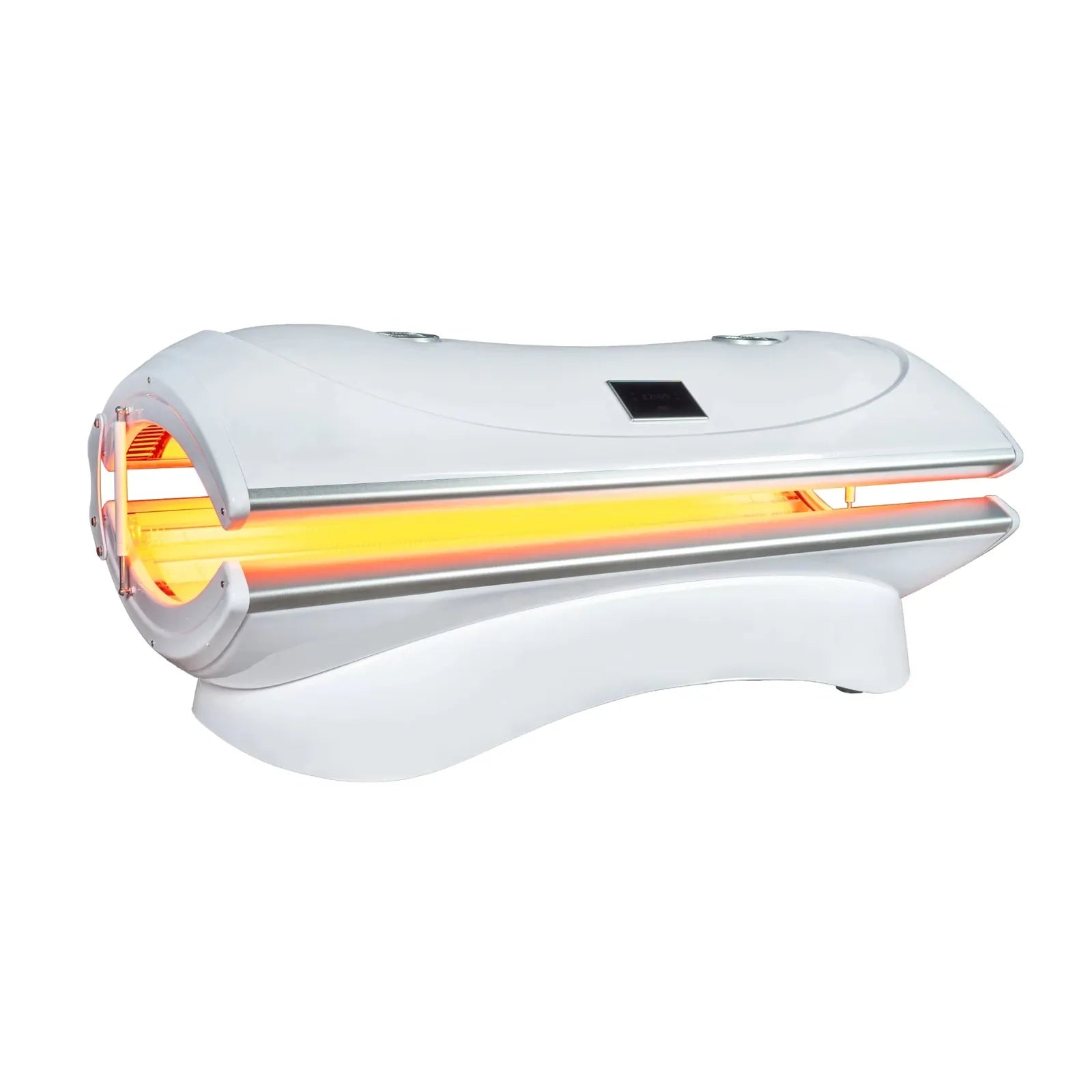

M4N Series Red Light Therapy Bed
The M4N Series is a professional full-body red and near-infrared light therapy bed designed for clinics, recovery studios, and wellness facilities that want consistent whole-body sessions in a streamlined horizontal format. Choose M4N for efficient everyday operation, or upgrade to M4N Plus for higher LED density and faster session throughput.
Key Benefits
- 360° full-booth irradiation design for even head-to-toe exposure
- 4-wavelength spectrum (633 / 660 / 850 / 940 nm) for surface-to-deep wellness routines
- Independent wavelength control for protocol flexibility
- Pulse system available as an option
- High-quality EPISTAR LEDs with a wide 120° beam angle for broad distribution
- Studio-ready features including Bluetooth audio, stereo system, and machine cooling
M4N vs M4N Plus — Choose Your Model
Select your preferred version using the Model dropdown above.
| Feature | M4N | M4N Plus |
|---|---|---|
| Listed Session Time | 25–30 mins | 15–20 mins |
| Total LEDs | 10,800 pcs | 21,600 pcs |
| Rated Power | 2,300 W | 4,320 W |
| Actual Power | 1,800 W | 3,200 W |
| Electrical Requirement | 220V / 10 Amp | 220V / 15 Amp |
| Best For | Studios & steady daily use | Higher throughput & faster sessions |
4-Wavelength Full-Body Spectrum
Both M4N models use four commonly used photobiomodulation wavelengths:
- 633nm & 660nm (Red) — supports skin vitality and surface circulation
- 850nm & 940nm (Near-Infrared) — supports deeper tissue wellness and recovery routines
A wide 120° beam angle helps distribute light evenly across the body.
Performance & Output
- Irradiance (listed): 129 mW/cm²
- LED Source: China Taiwan EPISTAR 0.2W LED chips
- Milliwatt per LED: 0.2W (200 mW)
- LED Rating: 100,000 hours
- Whole-body irradiation: 360 degree irradiation full booth
Controls & Studio Features
- Independent control of wavelengths: Yes
- Pulse system: Optional
- Internal control system: Yes
- Intelligent wireless remote: No
- Multimedia video system: No
- Stereo system: Yes
- Bluetooth music: Yes
- Machine cooling system: Yes
- Human body cooling system: No
- Outer design colorful LEDs: Yes (Base)
- Movable wheels: No
Technical Specifications
Core Specs
- Series: M4N Series
- Models: M4N / M4N Plus
- Type: Whole body LED light therapy bed
- LED Color (listed): B, G, Y, R, IR
- Wavelengths: 633 + 660 + 850 + 940 nm
- Beam Angle: 120°
Size & Color
- Colors Available: White, Black
- Size (L×W×H): 1935 mm × 857 mm × 817 mm
- Tunnel Height: 390 mm
Weight & Capacity
- Product Weight: 120 kg
- Weight Capacity: 200 kg
Compliance
- Warranty: 3 Years
- Certificate (listed): ISO 9001, FDA registered, CE
- Goggles: Yes
Note: LED count and power specifications vary by model (M4N vs M4N Plus). Select your version above.
What’s Included
- REDDOTLED M4N Series bed (model selected)
- Integrated internal control system
- Bluetooth & stereo audio system
- Protective goggles
- Owner’s manual & safety guidance
- Assembly tools (listed): 17mm wrench, 12mm wrench
Installation Notes
- Electrical: Requires 220V service (10A for M4N, 15A for M4N Plus)
- Install on a grounded circuit and allow clearance for airflow and service access
- Professional installation recommended for commercial environments
Important Notes
Wellness and recovery equipment intended to support general wellness routines. Not intended to diagnose, treat, cure, or prevent any disease. Use appropriate eye protection and follow manufacturer instructions.
Compare Red Light Therapy Beds
Side-by-side comparison to help you select the right bed for your space, volume, and performance goals.
| Model | Orientation | LED Count | Rated Power | Wavelengths | Best For |
|---|---|---|---|---|---|
| M4 Series | Horizontal | 8,640 LEDs | 1,600 W | 633 / 660 / 850 nm | Entry-level clinics & studios adding their first bed |
| M4N Series | Horizontal | 10,800 LEDs | 2,300 W | 633 / 660 / 850 / 940 nm | Clinics wanting deeper NIR (940nm) support |
| M5N Plus | Horizontal | 18,000 LEDs | 3,200 W | 633 / 660 / 850 / 940 nm | Busy clinics running multiple sessions daily |
| M6N Plus | Horizontal | 22,000 LEDs | 3,800 W | 633 / 660 / 850 / 940 nm | High-volume commercial & performance centers |
| M7 / M7 Plus | Horizontal | 13,020 / 26,040 LEDs | 2,500 W / 4,500 W | 633 / 660 / 850 / 940 nm | Luxury spas & flagship wellness locations |
| M11 Plus (Vertical) | Vertical | 14,000 LEDs | 2,800 W | 633 / 660 / 850 / 940 nm | Facilities with limited floor space |
Note: Wellness and recovery equipment intended to support general wellness routines. Not intended to diagnose, treat, cure, or prevent any disease.
Find the Right Bed in 10 Seconds
Select the statement that best matches your facility.
Best match: M11 Plus (Vertical) We’re adding a bed for the first time
Best match: M4 Series We want deeper near-infrared exposure
Best match: M4N Series We’ll run many sessions per day
Best match: M5N Plus We are high-volume / commercial
Best match: M6N Plus We want a premium flagship experience
Best match: M7 Plus
