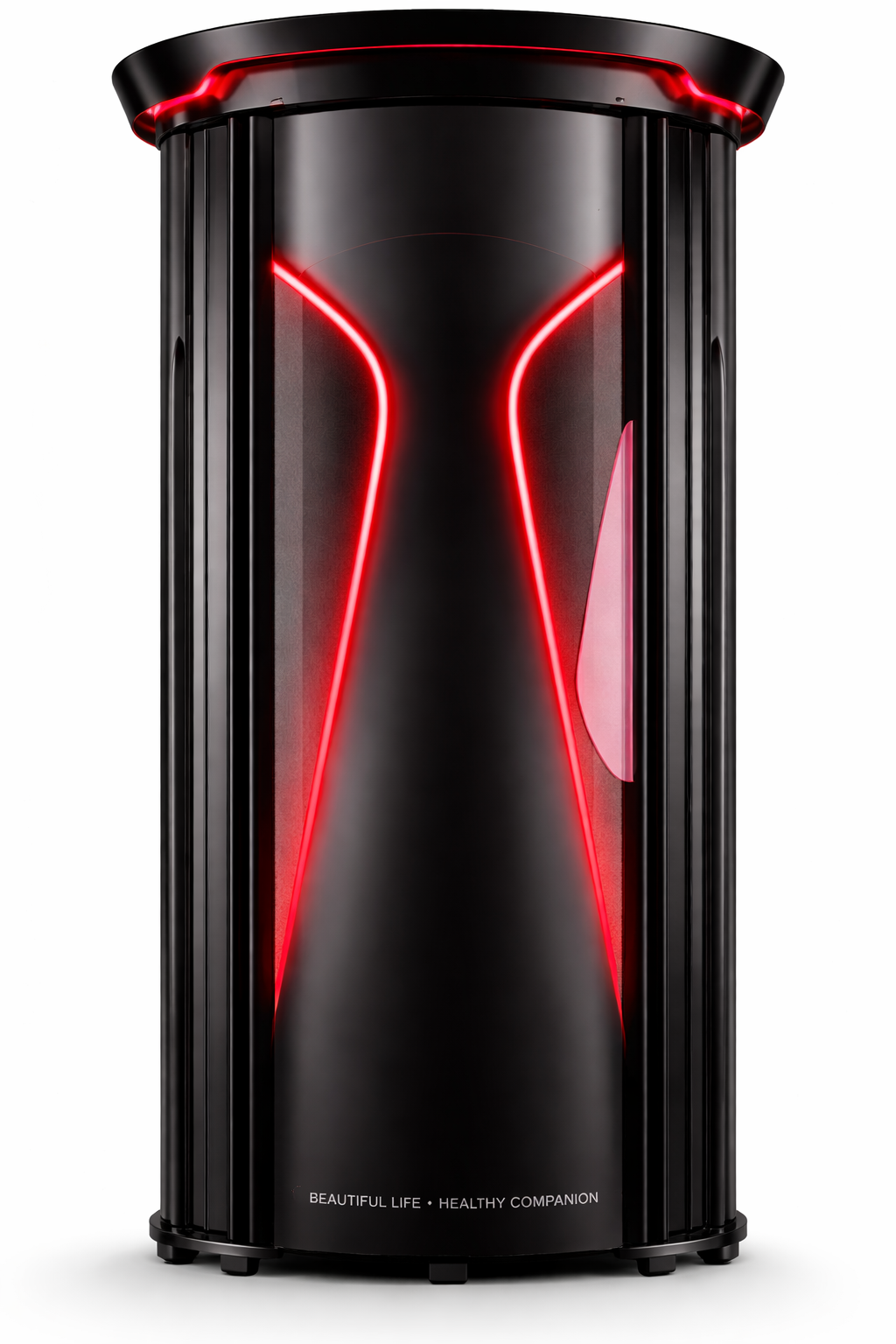

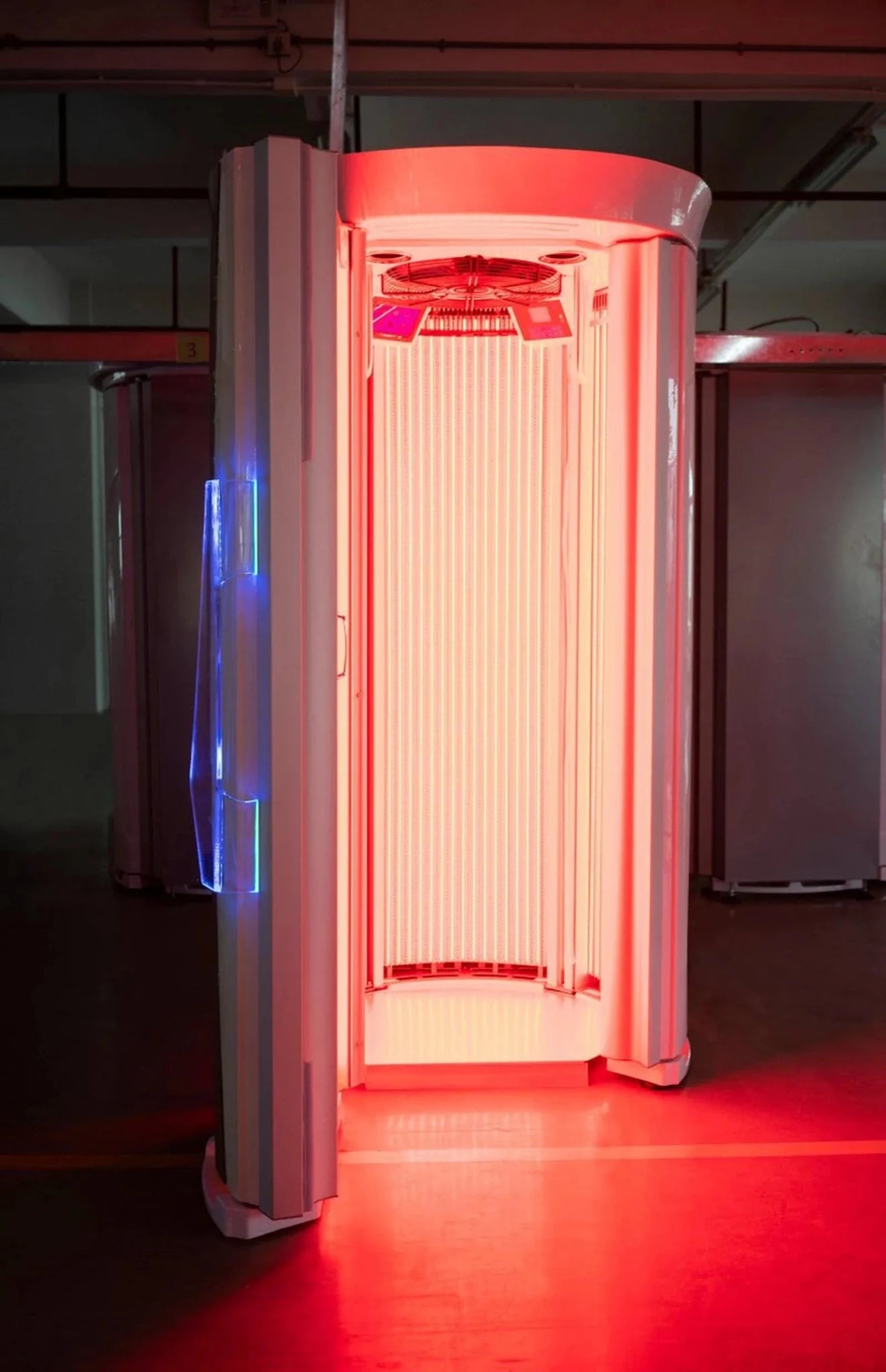

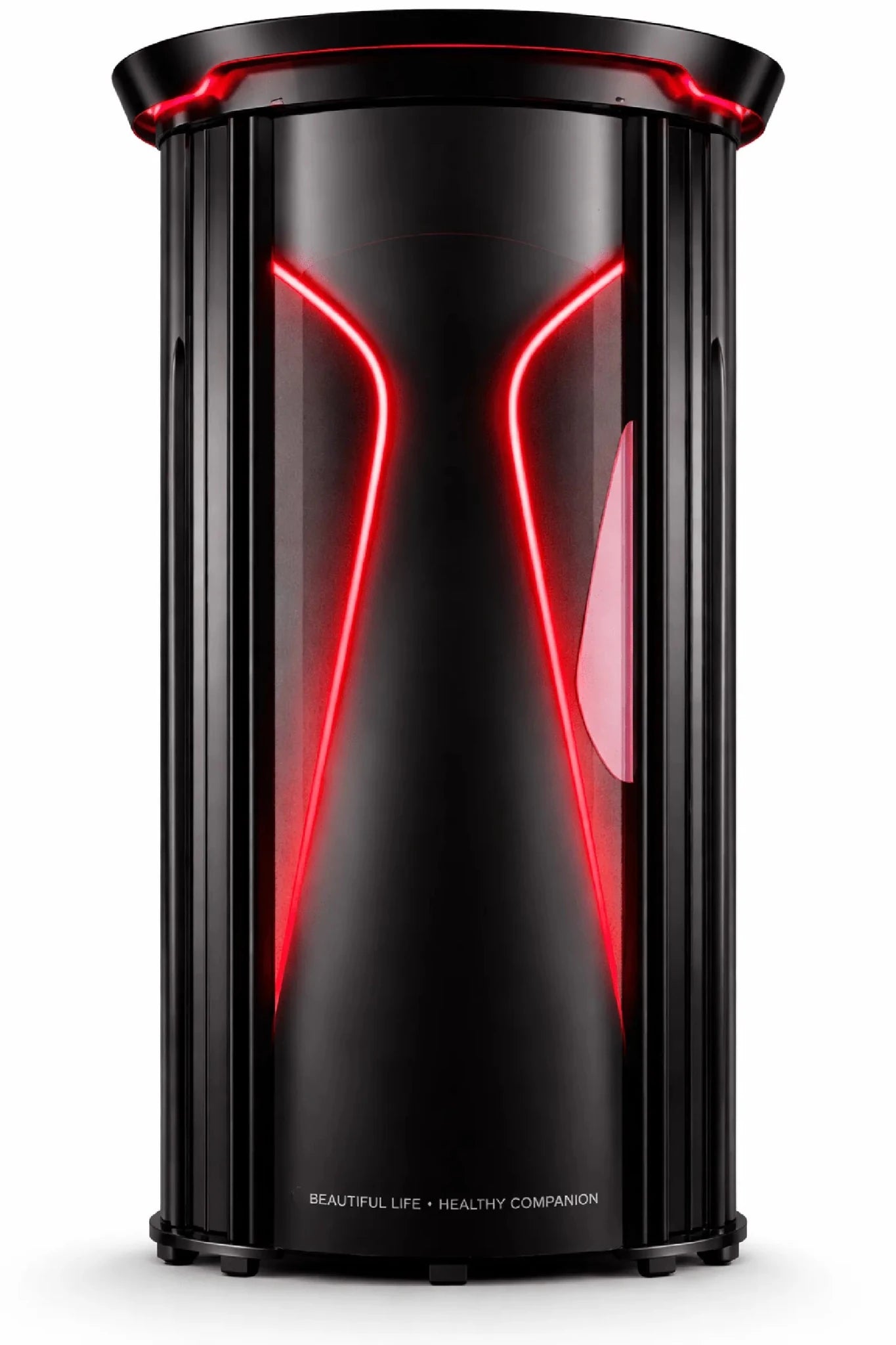

M11 Plus Vertical Red Light Therapy Bed
The M11 Plus is a professional-grade vertical whole-body red and near-infrared light therapy bed designed for clinics, recovery centers, and high-end wellness studios. Featuring ultra-dense LED coverage, 360° irradiation, and intelligent control over wavelength, pulse, and intensity, the M11 Plus delivers efficient full-body wellness sessions in a space-efficient vertical format.
Key Benefits
- Vertical full-body design maximizes throughput and saves floor space
- 360° light exposure for even, consistent full-body coverage
- 4-wavelength spectrum supporting surface-to-deep wellness routines
- Smart control system with pulsing and intensity adjustment
- Ultra-high LED density engineered for professional environments
- Built for frequent use with long-life LED technology
4-Wavelength Full-Body Spectrum
The M11 Plus utilizes four commonly used photobiomodulation wavelengths to support full-body wellness and recovery routines:
- 633nm & 660nm (Red) — supports skin appearance and surface circulation
- 850nm & 940nm (Near-Infrared) — supports deeper tissue wellness routines

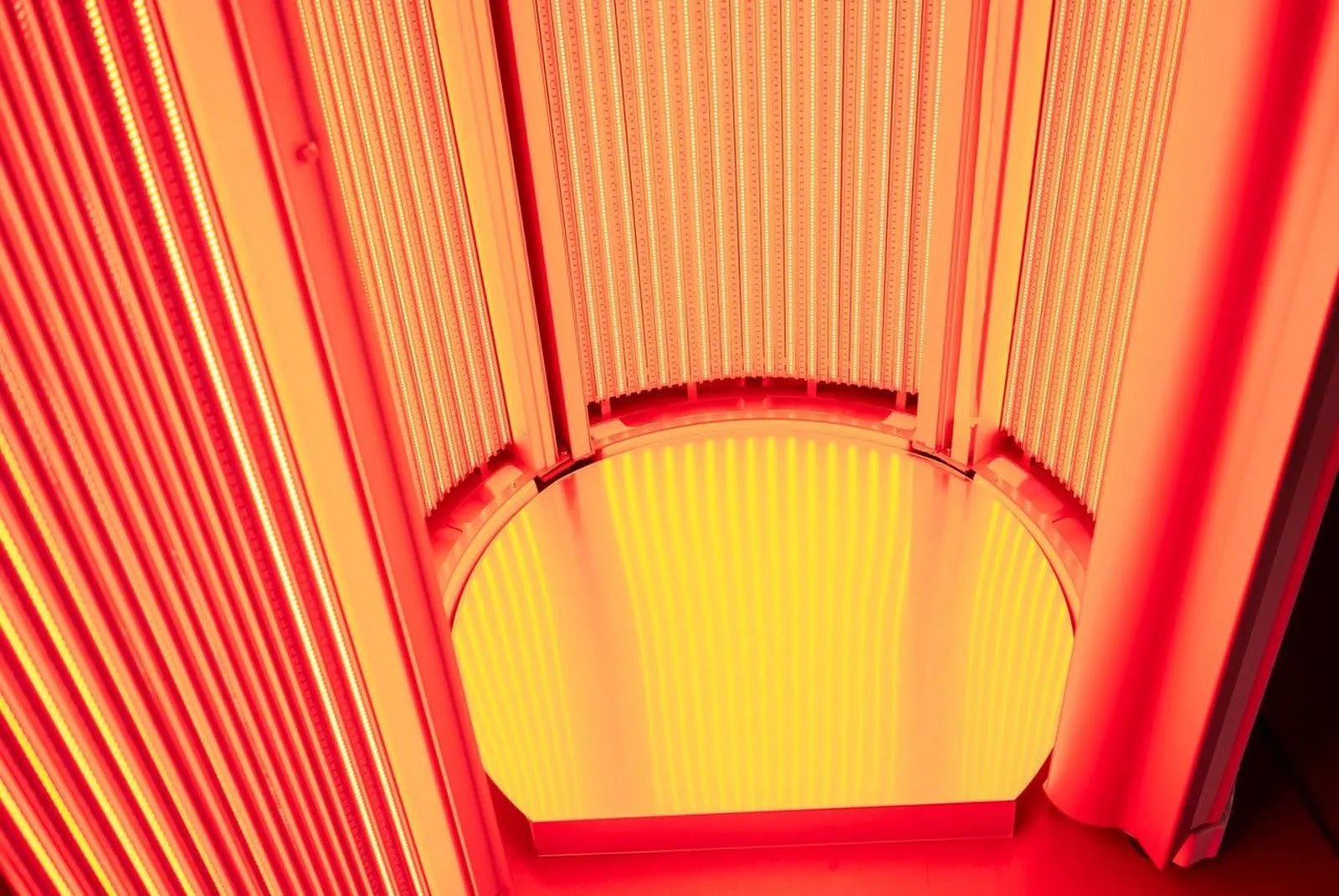

Combined with a 120° LED exposure angle and full-booth placement, light is distributed evenly around the body.
Smart Control & Pulsing System
- Independent wavelength group control
- Pulsing functionality for protocol customization
- Adjustable intensity for comfort and session management
- Designed for high-volume professional workflows
The vertical format allows fast session turnover while maintaining consistent output.
Performance & Output
- Irradiance (listed): Up to 129 mW/cm²
- Total LEDs: 56,160 pcs
- LED Source: Taiwan EPISTAR 0.2W chips
- Exposure Angle: 120°
- LED Lifespan: Up to 100,000 hours
Technical Specifications
Core Specs
- Model: M11 Plus
- Manufacturer: REDDOTLED
- Type: Vertical Whole-Body LED Therapy Bed
- Wavelengths: 633 / 660 / 850 / 940 nm
- Total LEDs: 56,160 pcs
Power
- Rated Power: 7,800 W
- Actual Power: 5,600 W
- Voltage: 220V
- Current: 40A
Design & Capacity
- Irradiation: 360° full-body booth
- LED Angle: 120°
- Weight Capacity: 150 kg
Compliance
- Certifications (listed): ISO 9001, FDA registered, CE
- Warranty: 3 Years
What’s Included
- REDDOTLED M11 Plus Vertical LED Therapy Booth
- Integrated control system
- Power supply and cabling
- User manual and safety documentation
- Warranty: 3-Year manufacturer coverage
Installation Notes
- Requires a grounded 220V / 40A electrical connection
- Allow adequate clearance for airflow and service access
- Professional installation recommended for commercial facilities
Important Notes
Wellness and recovery equipment intended to support general wellness routines. Not intended to diagnose, treat, cure, or prevent any disease. Use appropriate eye protection and follow manufacturer instructions.
Compare Red Light Therapy Beds
Side-by-side comparison to help you select the right bed for your space, volume, and performance goals.
| Model | Orientation | LED Count | Rated Power | Wavelengths | Best For |
|---|---|---|---|---|---|
| M4 Series | Horizontal | 8,640 LEDs | 1,600 W | 633 / 660 / 850 nm | Entry-level clinics & studios adding their first bed |
| M4N Series | Horizontal | 10,800 LEDs | 2,300 W | 633 / 660 / 850 / 940 nm | Clinics wanting deeper NIR (940nm) support |
| M5N Plus | Horizontal | 18,000 LEDs | 3,200 W | 633 / 660 / 850 / 940 nm | Busy clinics running multiple sessions daily |
| M6N Plus | Horizontal | 22,000 LEDs | 3,800 W | 633 / 660 / 850 / 940 nm | High-volume commercial & performance centers |
| M7 / M7 Plus | Horizontal | 13,020 / 26,040 LEDs | 2,500 W / 4,500 W | 633 / 660 / 850 / 940 nm | Luxury spas & flagship wellness locations |
| M11 Plus (Vertical) | Vertical | 14,000 LEDs | 2,800 W | 633 / 660 / 850 / 940 nm | Facilities with limited floor space |
Note: Wellness and recovery equipment intended to support general wellness routines. Not intended to diagnose, treat, cure, or prevent any disease.
